This full-width model provides a switching fabric of 680 Gbps and supports the following
port configurations:
•
Twenty-four PoE+ (802.3at) multispeed Ethernet RJ-45 ports that support 10 Gbps,
5 Gbps, 2.5 Gbps, 1 Gbps, and 100 Mbps
The total PoE budget for this model is 576W, optionally expandable to up to 720W.
•
Four SFP28 fiber uplink ports that support 25 Gbps, 10 Gbps, or 1 Gbps transceiver
modules
Front panel model M4350-24X4V

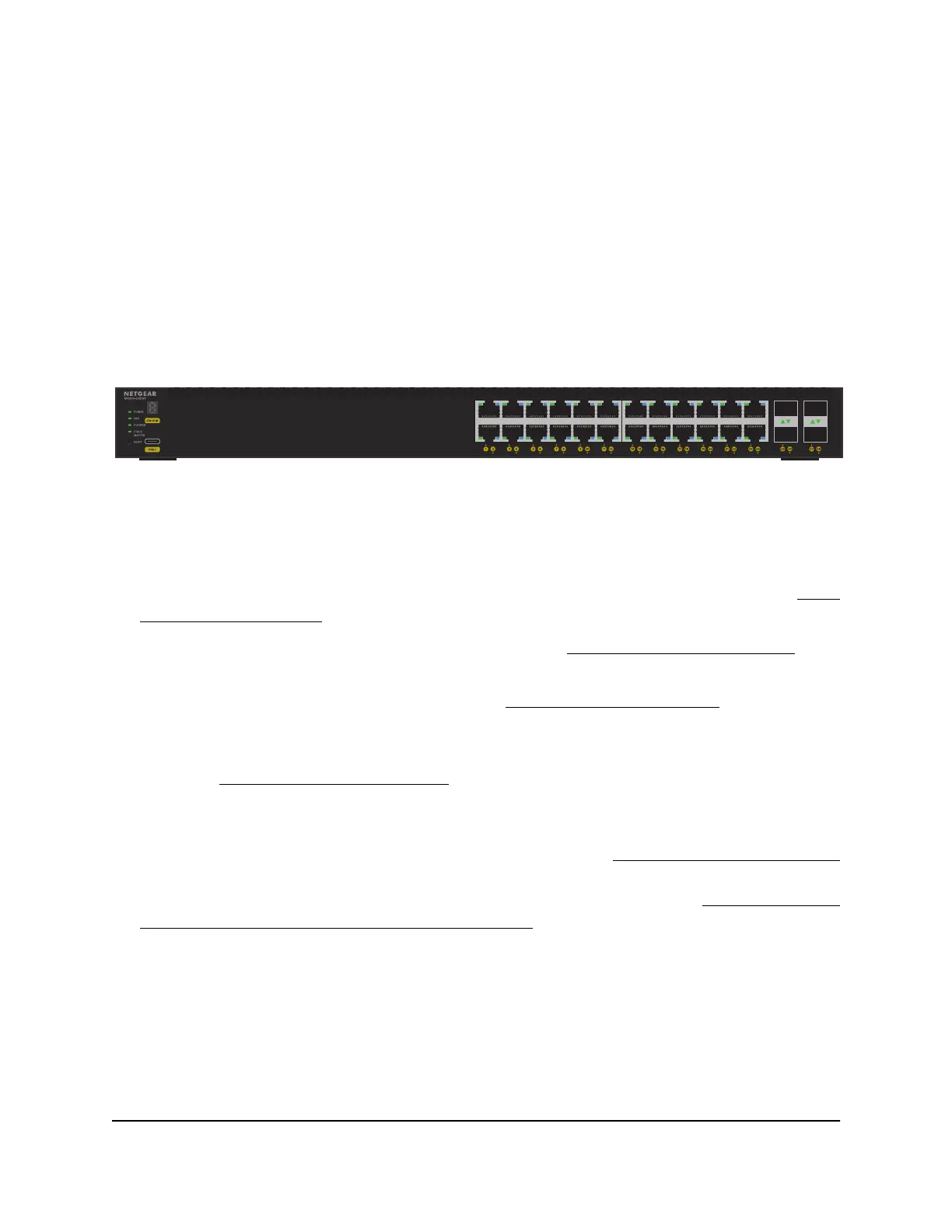

Figure 9. Front panel model M4350-24X4V
From left to right, the front panel of model M4350-24X4V provides the following common
components, which are clearly named or numbered on the front panel:
•
POWER, FAN, PoE MAX, STACK MASTER, and STACK ID: System LEDs (see LEDs
model M4350-24X4V on page 28)
•
RESET: Recessed dual-function Reset button (see Dual-function Reset button on
page 38)
•
USB C: One USB Type-C console port (see USB Type-C console port on page 39)
•
24 multispeed PoE+ Ethernet ports, numbered 1 through 24: 24 PoE+ (802.3at)
10G/5G/2.5G/1G/100M autosensing RJ-45 ports, each with a left LED and a right
LED (see LEDs model M4350-24X4V on page 28), with a total PoE budget of 576W
for the switch. This PoE budget is optionally expandable to up to 720W.
•
4 SFP28 ports, numbered 25 through 28: Four 25G/10G/1G SFP28 fiber uplink
ports, each with a combined speed and activity LED (see LEDs model M4350-24X4V
on page 28)
For information about optional devices for the fiber uplink ports, see Fiber transceiver
modules and cables for SFP+ and SFP28 ports on page 37.
Hardware Installation Guide26Hardware Overview
