Back panel model M4350-24X4V

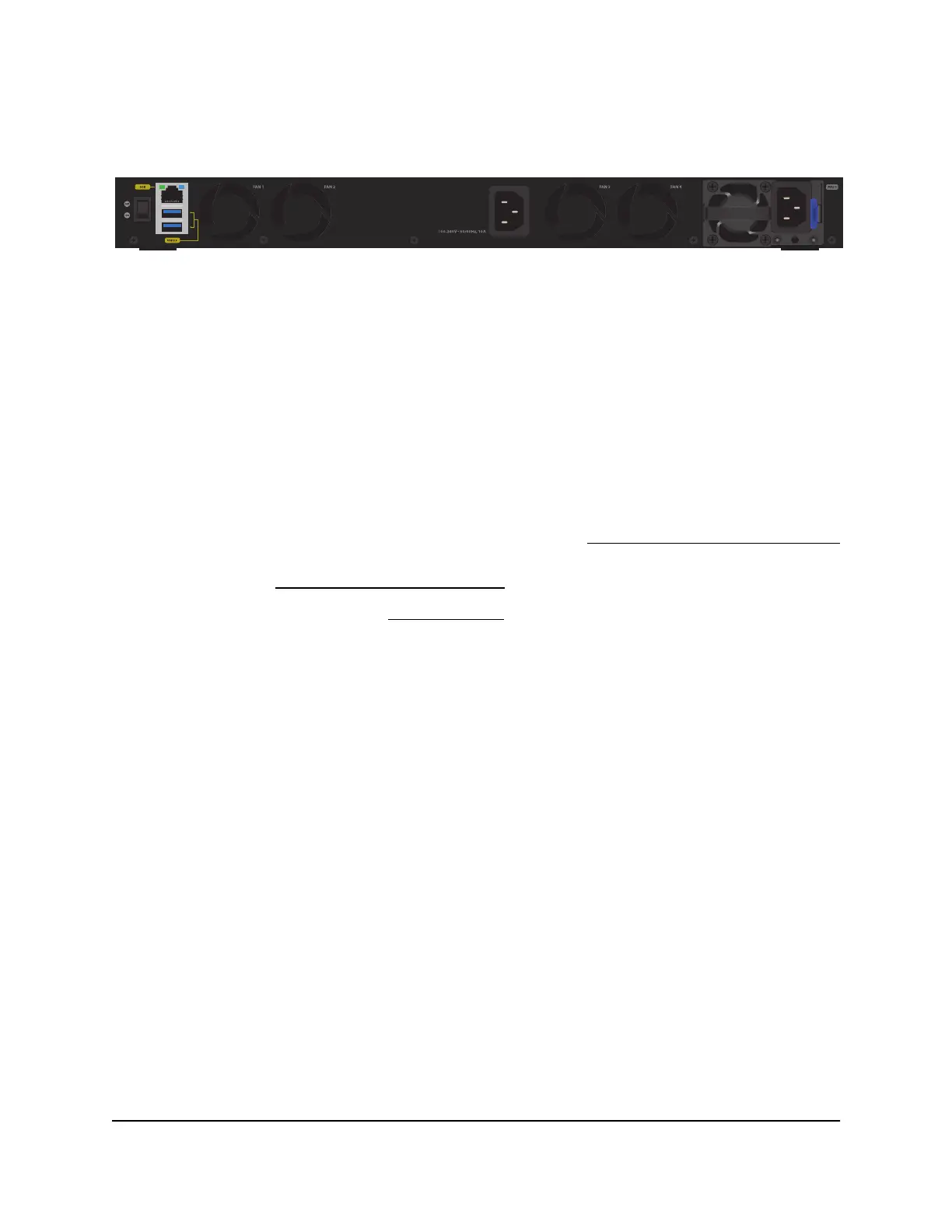

Figure 10. Back panel model M4350-24X4V
Note: Although the previous figure shows an optional auxiliary power supply (APS)
installed in the power supply unit (PSU) bay, this models ships without an APS, and the
PSU bay is closed with a PSU cover.
From left to right, the back panel of model M4350-24X4V provides the following common
components, which are clearly named or numbered on the back panel:
•
On/Off power switch: One On/Off power switch that lets you turn on or turn off
power to the switch
•
OOB: One out-of-band (OOB) 1G Ethernet port (see Out-of-band 1G Ethernet port
on page 39) with a left LED that indicates the speed and a right LED that indicates
the activity (see LEDs model M4350-24X4V on page 28)
•
USB: Two USB 3.0 ports (see USB 3.0 ports on page 39)
•
Fans: Four fans placed in two groups of two fans (FAN 1+ FAN 2 and FAN 3 + FAN
4)
•
AC power receptacle: AC receptacle for the internal PSU. The PSU can accept
100–240V ~ 50–60 Hz, 10A.
•
PSU bay: One PSU bay (PSU 1) that is closed with a PSU cover. For information about
ordering an optional APS that you can install in the PSU bay, contact NETGEAR.
Hardware Installation Guide27Hardware Overview
