7-MAINTENANCE
Tailgate[25841477]

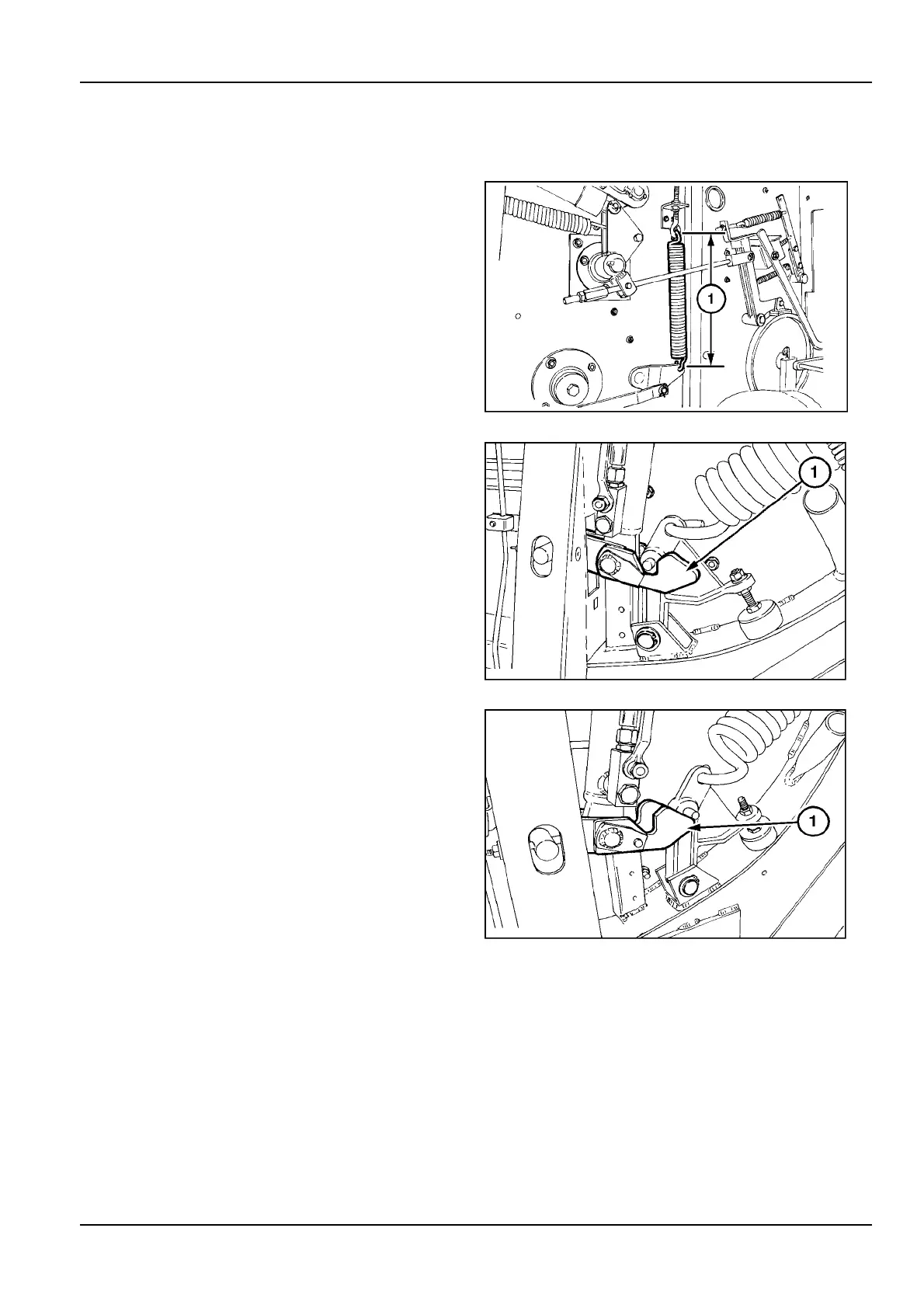

Tailgatelatchadjustments
Thetailgatelatchcontrolspringpositionandoperating
linkageisdesignedtoenablequickreactionandforce.
Springdimension(1)forthebalershouldbemaintained
at310mm(12.2in).
ZIL10FCRB191AAA1
Thelatchcontrolspringadjustmentwillsuitmostcombi-
nationsofbaler/tractorsetup.
Howeverthetimingbetweenthetailgatebeingclosedand
thelatchesbeingpulledupbythespringforcedependson
thebackpressureinthereturnlineofthetractorhydraulic
circuit.
Latchshownpulledupandengagedcorrectly.
ZIL10FCRB189AAA2
Ifthelatchespullupbeforethetailgateisfullyclosed,the
latchwillnotengageontheleverasshown.
NOTICE:Thespringtensionwillneedtobereleased
evenlyonbothsides,untilthetailgateisfullyclosed
beforethelatchespullup.
Latchshownpulledupprematurelyandnotengaged.
ZIL10FCRB190AAA3
7-21
