7-MAINTENANCE

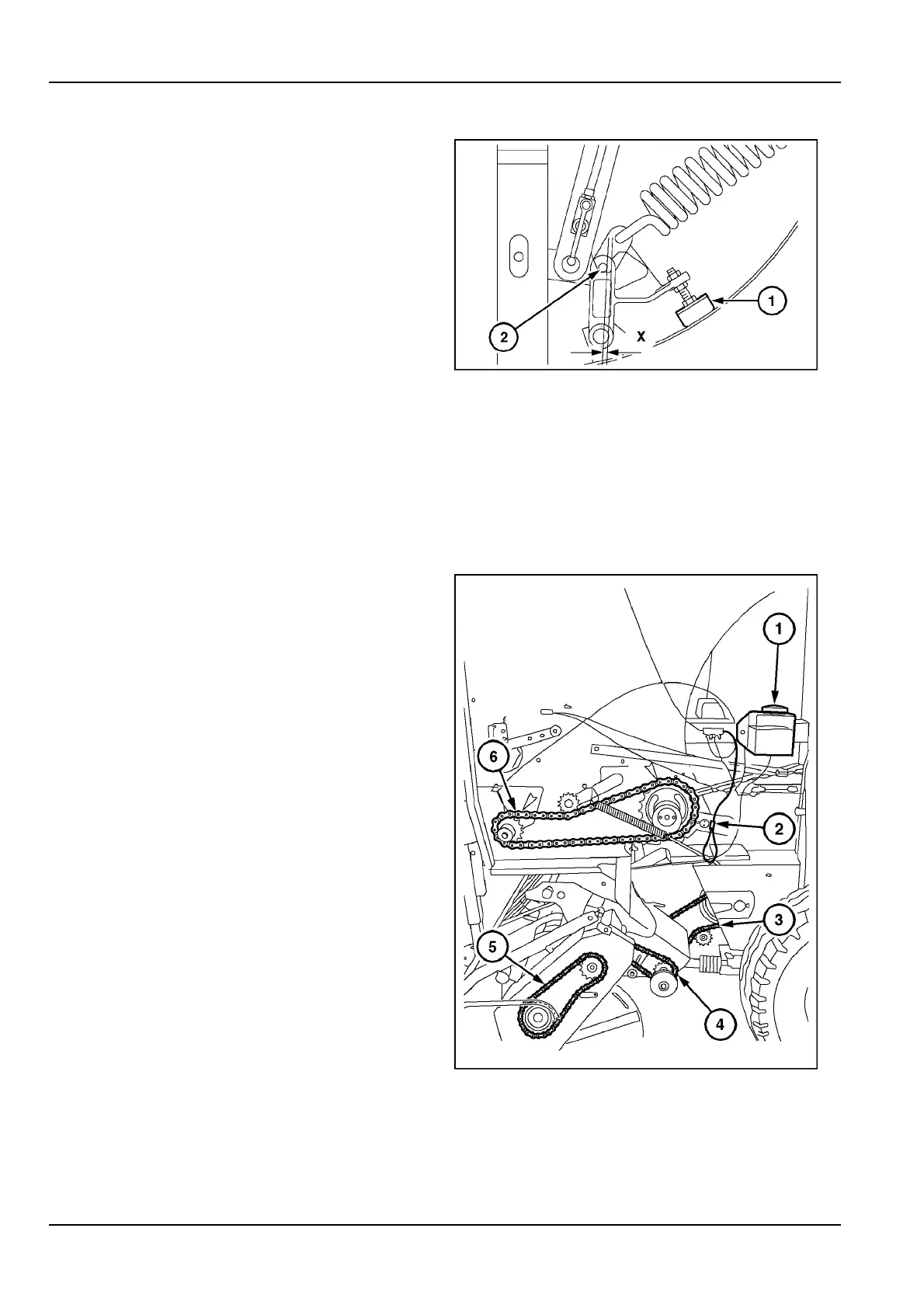

LatchMechanicalAdjustments
Whenthetailgatelatchesdonotfunctionproperlysuch
as:
•
Thetailgateopensprematurely,
•
Thetailgatefailstoopen(latchesfailtodisengage),
•
Thelatchengagesordisengagesononeside,and
notontheotherside,
Thefollowingpointscanbecheckedandcorrectedas
necessary:
1.Withthetailgateproperlyclosed(freefromcropac-
cumulationpreventingthetailgatetofullyclose;the
tractorhydraulicsystemintheoatposition),verify
thatthetailgatehingesareingoodconditionaswell.
2.Verifythatthedensityspringisretracted,therub-
berdampers(1)pressedrmlyagainstthetailgate
frame.Adjusttherubberdamperstoobtainaclear-
anceX=5-7mm(0.2-0.3in),equallyonboth
sides.
ZIL10FCRB211AAA4
Automaticoilingsystem[25804598]
Automaticchainoiler
Automaticlubricationisafactoryinstalledoption,butcan
beretrottedtoallmachines.
Theautomaticchainoiler(2)suppliesameteredamount
ofoiltothefollowingchains:
•
Maindrivechain(6)(drivestheconveyorchain)
•
Packerdrivechain(3)(notonstandardpickupmod-
els)
•
Pickupdrivechain(4)
•
Pickupreeldrivechain(5)(notonstandardpickup
models)
ZIL10FCRB014BAA1
7-22
