Chapter 3 Individual Operations
94
Individual
Operations

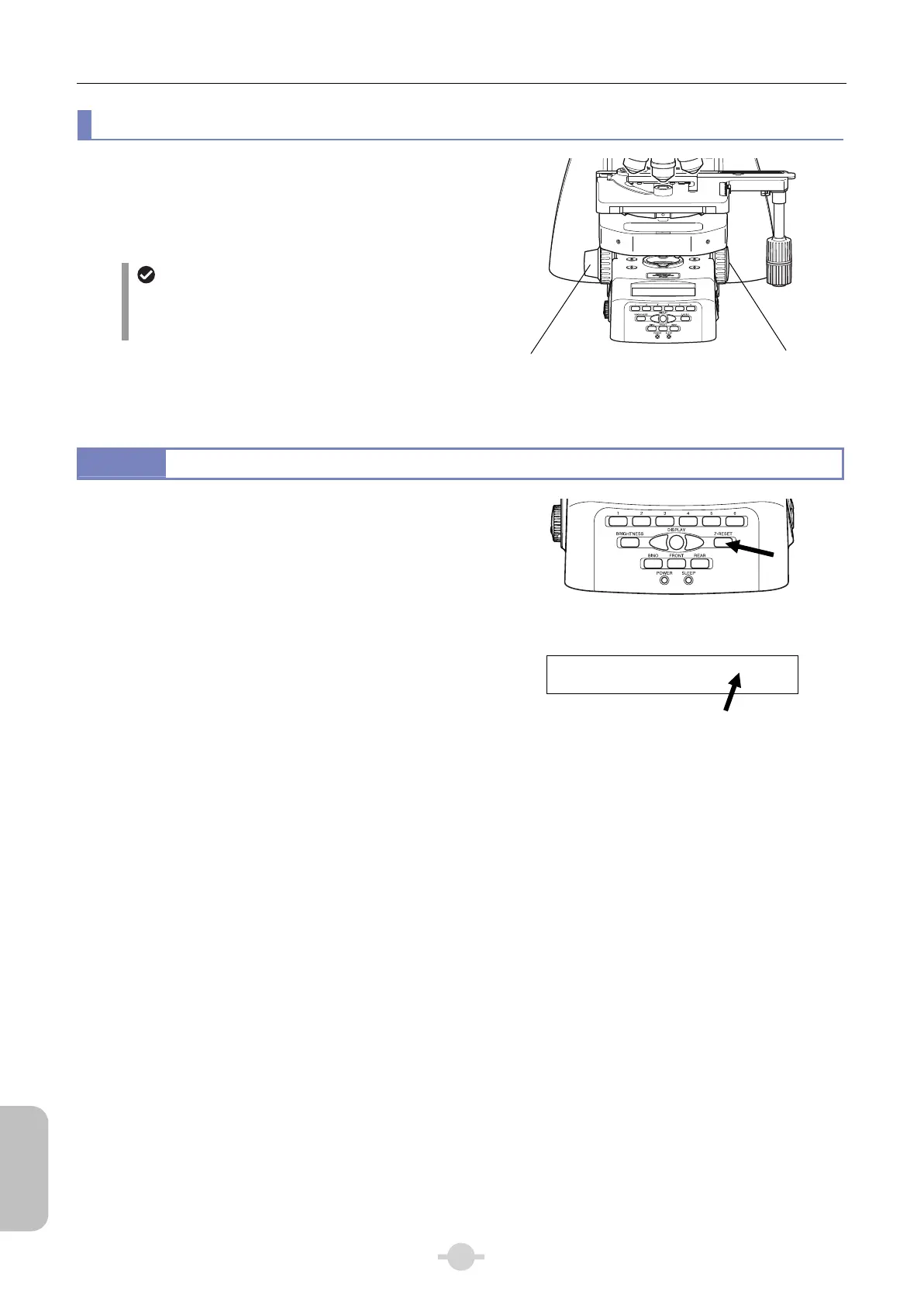

Position Exchange of the Fine Focus Knob
The fine focus knobs, located on both sides of the main body,
are flat on one end, and convex on the other. The fine focus
knob on each side is attached with a magnet, and can easily be
swapped.
Position them to best suit your usage.
Removing a flat focus knob
A flat fine focus knob can be easily removed by inserting a
hex driver (2 mm across flats) or the likes into the notch in
the knob.
Position exchange of the focus knob
4.3
Resetting the Z-axis Coordinate
The Z-axis coordinate can be reset to zero and used as the
reference point for adjusting the focus. To do so, adjust the
focus on the sample, and then press the Z-RESET button. The
Z-axis coordinate value will be reset to 0.000 um.
Operation on DS-L3 (See “23.2 Controlling the Microscope”.)
[Z-RESET] Button used to reset the Z-axis
coordinate
PA__2x____Z:_____0.000um
UV-2B
'
C _ ZM:1
'
0x_ ND:_ 0.0%
Convex fine focus knob
Flat fine focus knob
To Next Page
