Chapter 3 Individual Operations
96
Individual
Operations
5

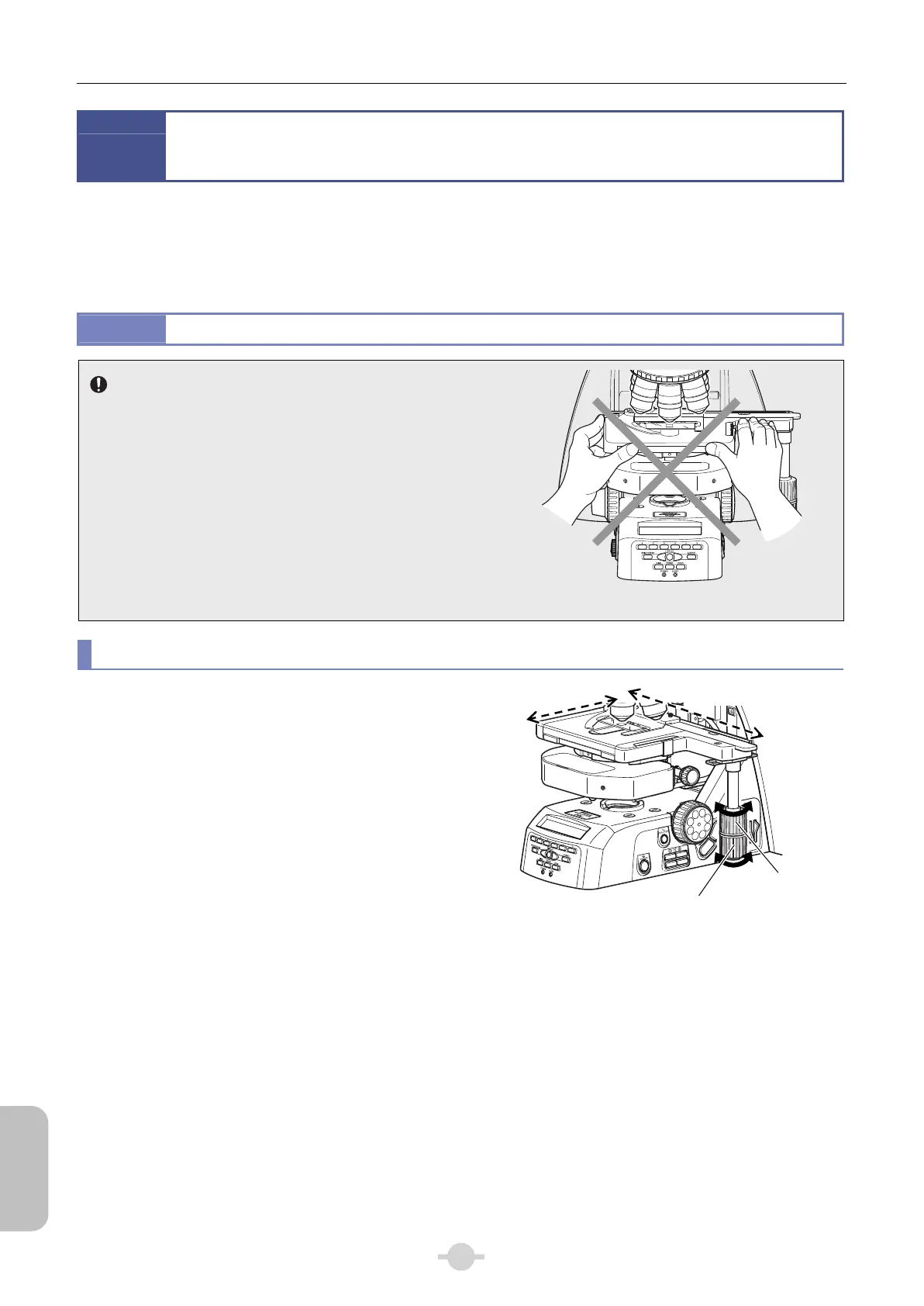

Bringing the Target into the Optical Path
(Horizontal Stage Movement, Rotation)
When using a manual rotatable ceramic coated stage, use the stage X, Y knobs or rotate the top stage plate to move the
specimen and bring the target into the optical path. (So that the sample sealed under the cover glass will be lighted.)
When using a motorized XY stage, use the ergo controller or joystick to control the horizontal stage movement. (See “20
Using the Ergo Controller” and “21 Using the Joystick Controller”.)
5.1
Operating the Rotatable Ceramic Coated Stage
Notes on moving the stage
Avoid the following actions, which can cause equipment
malfunctions.
Moving the stage to the right and left by holding the top
surface of the stage directly.
Forcing the stage to move or rotate past the X/Y stroke or
the maximum rotation angle of the rotatable ceramic coated
stage.
Do not move the stage with hands
Knob rotation and horizontal stage movement
To move the stage in the X or Y direction, rotate the X knob or Y
knob.
The stroke of the stage is X: ±78 mm, Y: ±54 mm.
IN
ND
8
ND
32
NCB
11
OUT
Knob rotation and stage movement
Stage Y knob
Stage X knob
Y direction
X direction
