Nikon ECLIPSE Ni-E User Manual

Chapter 1 Components
4
Components
1.3
Buttons

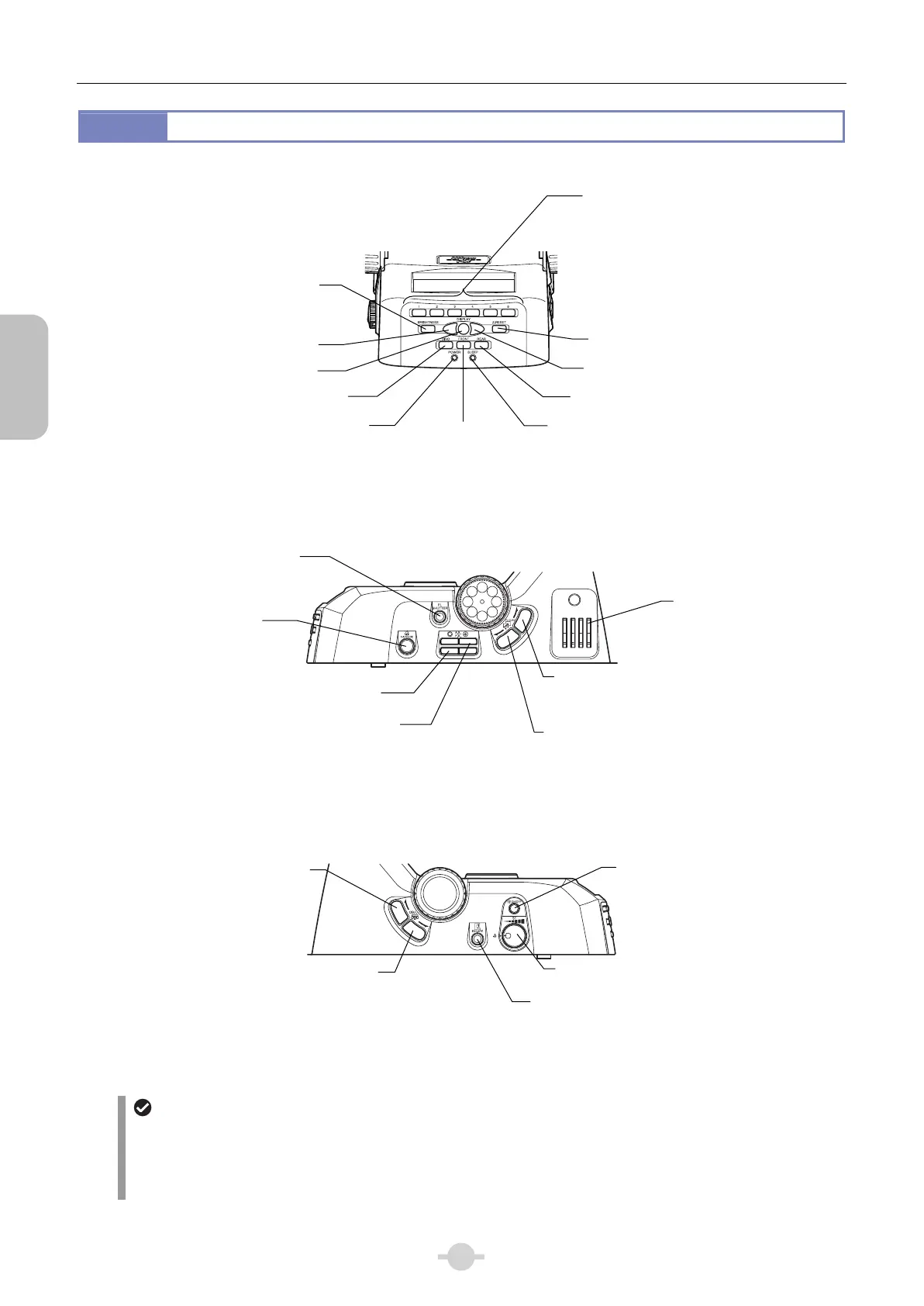

Ni-E main body (Front) Control Buttons
ND
8
ND
32
OUT
IN
NCB
11
Ni-E main body (Right) Control Buttons
Ni-E main body (Left) Control Buttons
Changing function control button assignments
Buttons indicated with “(Factory setting: ...)” can be assigned different functions.
Different functions can be assigned from the DS-L3 camera control unit. See Chapter 3, Section 23 “Operation on DS-L3” -
23.1 “Setting Up the Microscope - (3) Configuring the Button Functions - (3-1) Ni-E microscope button”.
In the explanations of operations in this manual, functions of these buttons are assumed to be left as factory settings.
Z-RESET button
DISPLAY Next button
REAR optical path button
Sleep LED
Display panel
brightness adjustment
button
DISPLAY Previous button
BINO optical path button
Power LED
FRONT optical path button
Switch DISPLAY button
ND filter IN/OUT switch
FL CUBE CCW rotation button
(Factory setting: First epi-fluorescence
cube turret)
DIA field diaphragm
button
FL SHUTTER button
(Factory setting: Shutter built into
first epi-fluorescence cube turret)
CAPTURE button
(Factory setting: Camera
directly controlled b
y
DS-L3 connected to USB
connector)
DIA aperture diaphragm
button
FL CUBE CW rotation button
(Factory setting: First epi-fluorescence
cube turret
)
Escape button
OBJ CW rotation button
(Factory setting: Nosepiece)
OBJ CCW rotation button
(Factory setting: Nosepiece)
Dia-illumination
ON/OFF switch
Dia-illumination brightness control knob
FUNCTION button
(Factory settings:
Button 1, 2: Condenser CCW, CW
rotation
Button 3, 4: Excitation filter wheel
CCW, CW rotation
Button 5, 6: Barrier filter wheel
CCW, CW rotation)
