16.3
Protecting the Sample and Preventing It from Decoloration (Using the Shutter)
If the sample is continuously exposed to the strong light of the mercury lamp used for the epi-fluorescence attachment, it
may become damaged or decolorized. Be sure to close the shutter when suspending microscopy or when pausing
epi-fluorescence microscopy to perform microscopy with diascopic light. Be sure to get into the habit of performing this
operation.
Any of these shutters can be used to open/close the optical path as shutters for blocking the epi-fluorescence illumination
are provided in the following attachments:
 Manual/intelligent/motorized epi-fluorescence cube turret
 Manual/motorized HG precentered fiber illuminator (Intensilight)
 EPI motorized shutter
Opening and closing the shutter of a motorized unit
ND
8
ND
32
OUT
IN
NCB
11
Opening/closing the shutter
BA400_____DAPI_ -2
'
C _____
EX330-380_ UV-2B
'
C __EPI:C
PA__2x____Z:_____0.000um
UV-2B
'
C ____ND_ 1
'
C __EPI:C
C: shutter closed
O: shutter open

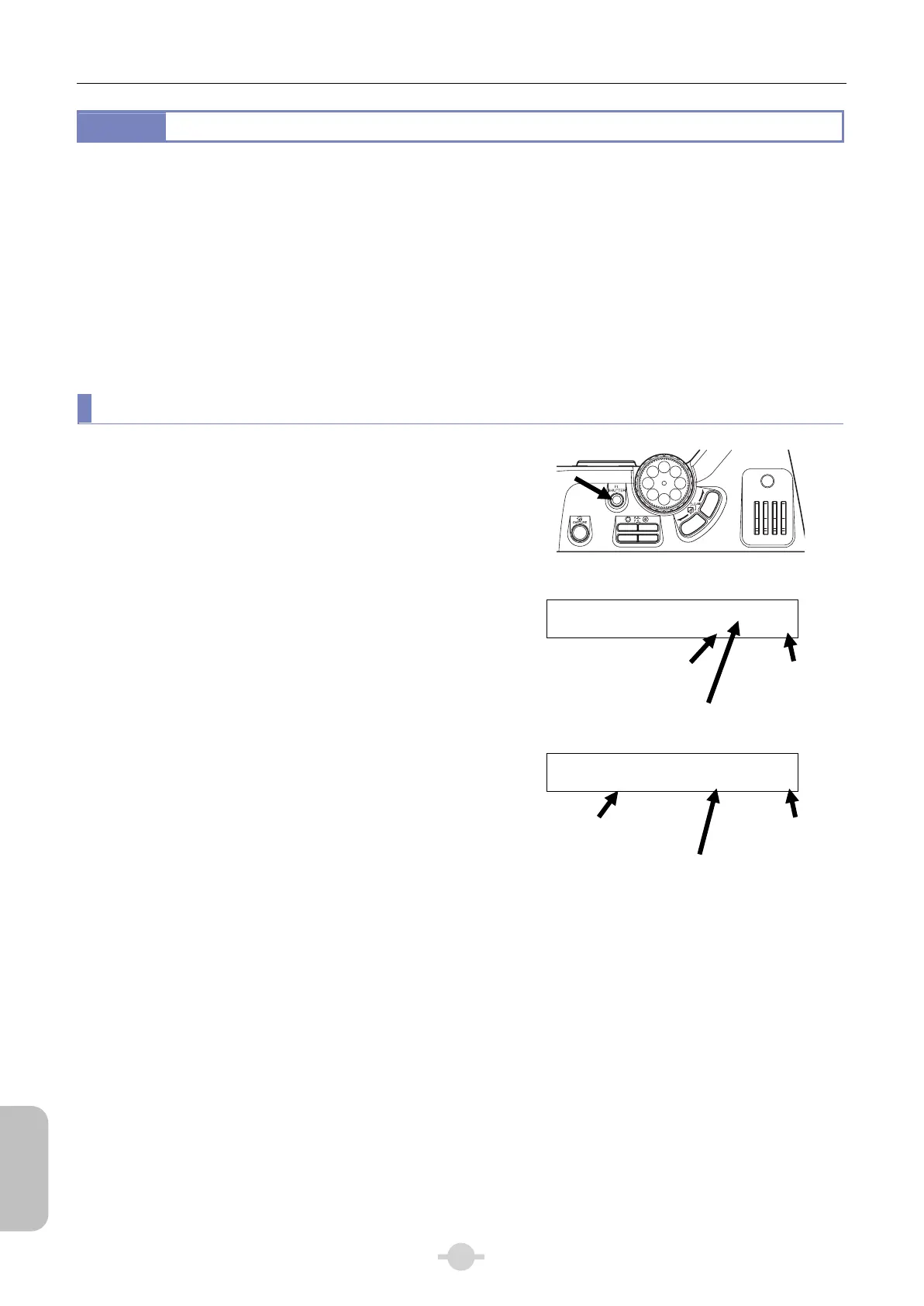

■ Motorized epi-fluorescence cube turret
Press the FL SHUTTER button to open/close the shutter of a
motorized epi-fluorescence cube turret. “The shutter is
closed” when the button is ON.
The FL SHUTTER button function is set to “open/close the
shutter built in the epi-fluorescence cube turret on the 1st
layer” as default. Changing the setting of the button function
allows you to use the FL SHUTTER button for
opening/closing the motorized epi-fluorescence cube turret
on the 2nd layer”.
EPI motorized
shutter
Shutter of the epi-fluorescence
cube turret on the 2nd layer
Shutter of the epi-fluorescence
cube turret on the 1st layer
EPI motorized
shutter
Shutter of the HG
precentered fiber illuminator
Shutter of the epi-fluorescence
cube turret on the 1st layer
