Technical Data
8-5
Part 1073401_07
E 2021 Nordson Corporation
D10L and D16L Melter
392 mm
(15.44 in.)
307 mm
(12.07 in.)
878 mm
(34.57 in.)
851 mm
(33.50)
393 mm
(15.48 in.)
584 mm
(23.00 in,)
605 mm
(23.8 in.)
330 mm
(12.99 in.)
1052 mm
(41.40 in.)
163 mm
(6.40 in.)

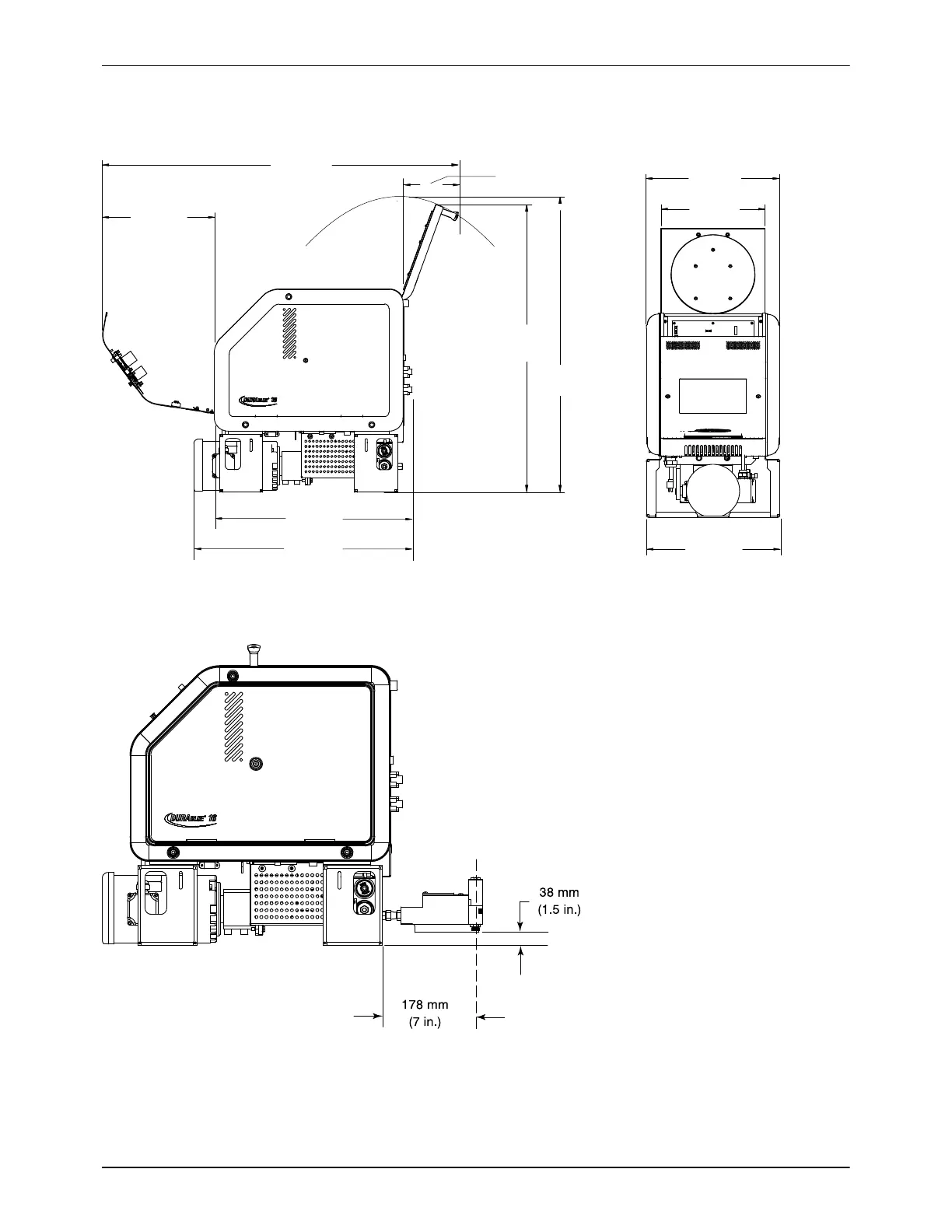

Figure 8-2 D10L/D16L melter dimensions
Figure 8-3 B900N mounting dimensions (from manifold)
