The Main Menu General Information
Lines six and seven display current counts of off-normal events in six categories. The counts
include both acknowledged and unacknowledged events.
Figure 1.7 Events Count Display Screen
Soft Keys
ACKNOWLEDGE FIRE ALARM - Press this key to acknowledge an event. The command will read
ACKNOWLEDGE FIRE ALARM if the event is a fire alarm. It will read ACKNOWLEDGE if the event
is any other type. The command will not display if there are no events to acknowledge.
MORE INFORMATION - Press this key to go to the MORE INFORMATION screen, described in
Section 1.8.2 below. This button will not display if no off-normal events exist.
PROGRAM/ALTER STATUS - Press this key to go to the PROGRAM/ALTER STATUS screen,
which also can be reached from the main menu. This screen will require a password. For program-
ming instructions, refer to the NFS2-3030 Programming Manual.
SIGNAL SILENCE - Press this key to silence all NFS2-3030 outputs programmed as silenceable.
SYSTEM RESET - Press this key to reset the system.
1.8.2 More Information
Pressing the More Information soft key displays a screen that contains additional information about
the event shown in the top four lines.

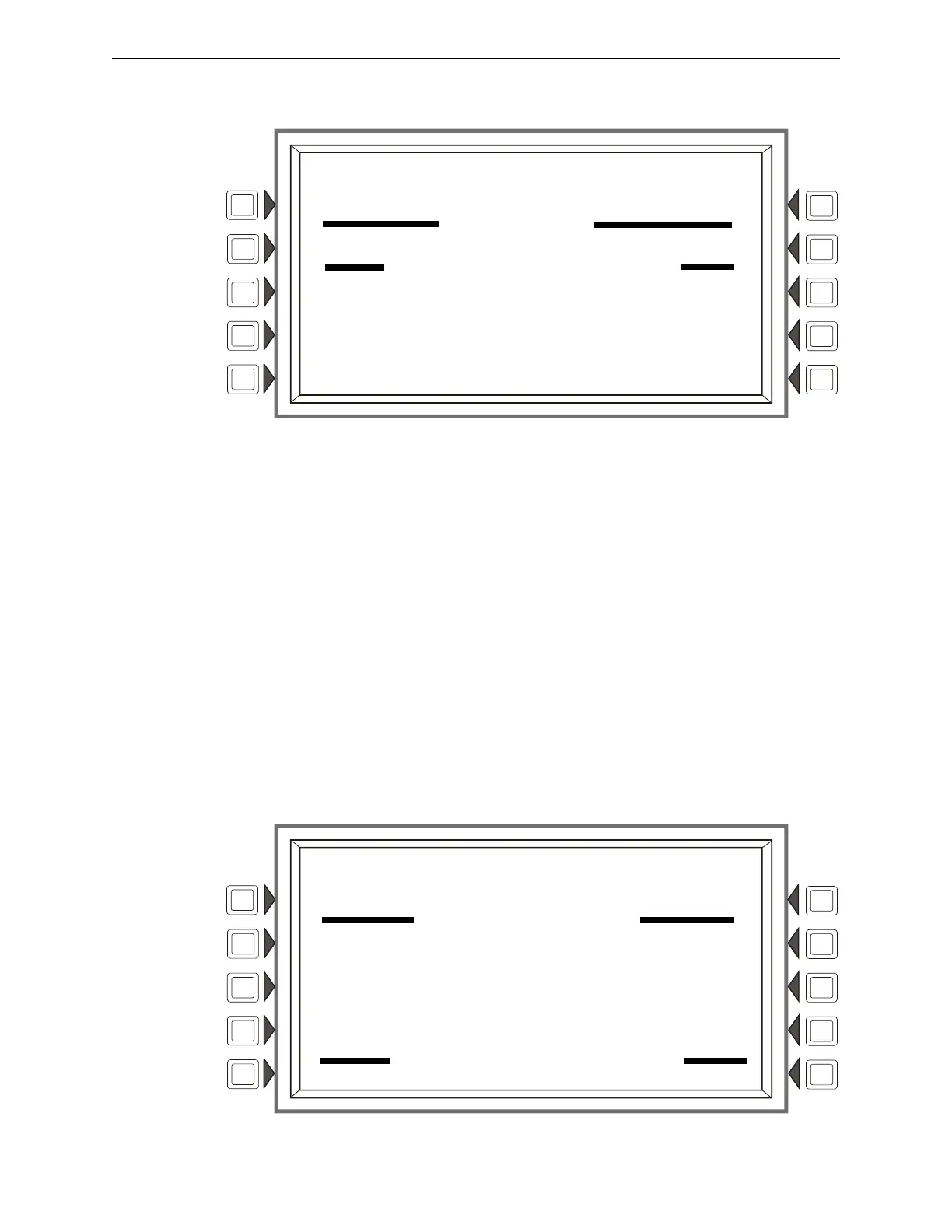

Figure 1.8 More Information Screen
FIRE ALARM
ELEVATOR LOBBY EAST WING
FIFTH FLOOR Z005 SMOKE(PHOTO)
11:57:45A TUE JAN 25, 2011 L03D052
EVENT COUNTS
FIRE ALARMS:001 PREALARM:000 TROUBLE:000
SUPERVISORY:000 SECURITY:000 DISABLE:000
11:58:45A TUE JAN 25, 2011
ACKNOWLEDGE FIRE ALARM SIGNAL SILENCE
MORE INFORMATION SYSTEM RESET
PROGRAM/ALTER STATUS BACK
ACKNOWLEDGED FIRE ALARM
ELEVATOR LOBBY EAST WING
FIFTH FLOOR Z005 SMOKE(PHOTO)
11:58:45A TUE JAN 25, 2011 L03D052
INFORMATION/ACTION
CALL 203-555-1212
GO TO ALARM SITE AND INVESTIGATE
APPROACH THE ALARM LOCATION WITH CAUTION
BRING CELL PHONE AND REPORT WHEN ON SITE
VALUES: 121% OF ALARM, 145% OF PREALARM
ALARM: 6= 1.66%, PREALARM; 3= 0.47%
ACTION/STATUS: NONE/VERY CLEAN
PEAKS:56% VERIFY COUNT:02 CO-OP:D100,158
12:22:34P TUE JAN 25, 2011
BACK
