4-1 Preparing for Programming
4
4
42 SYSMAC CP1L/CP1E Introduction Manual
Creating Programs

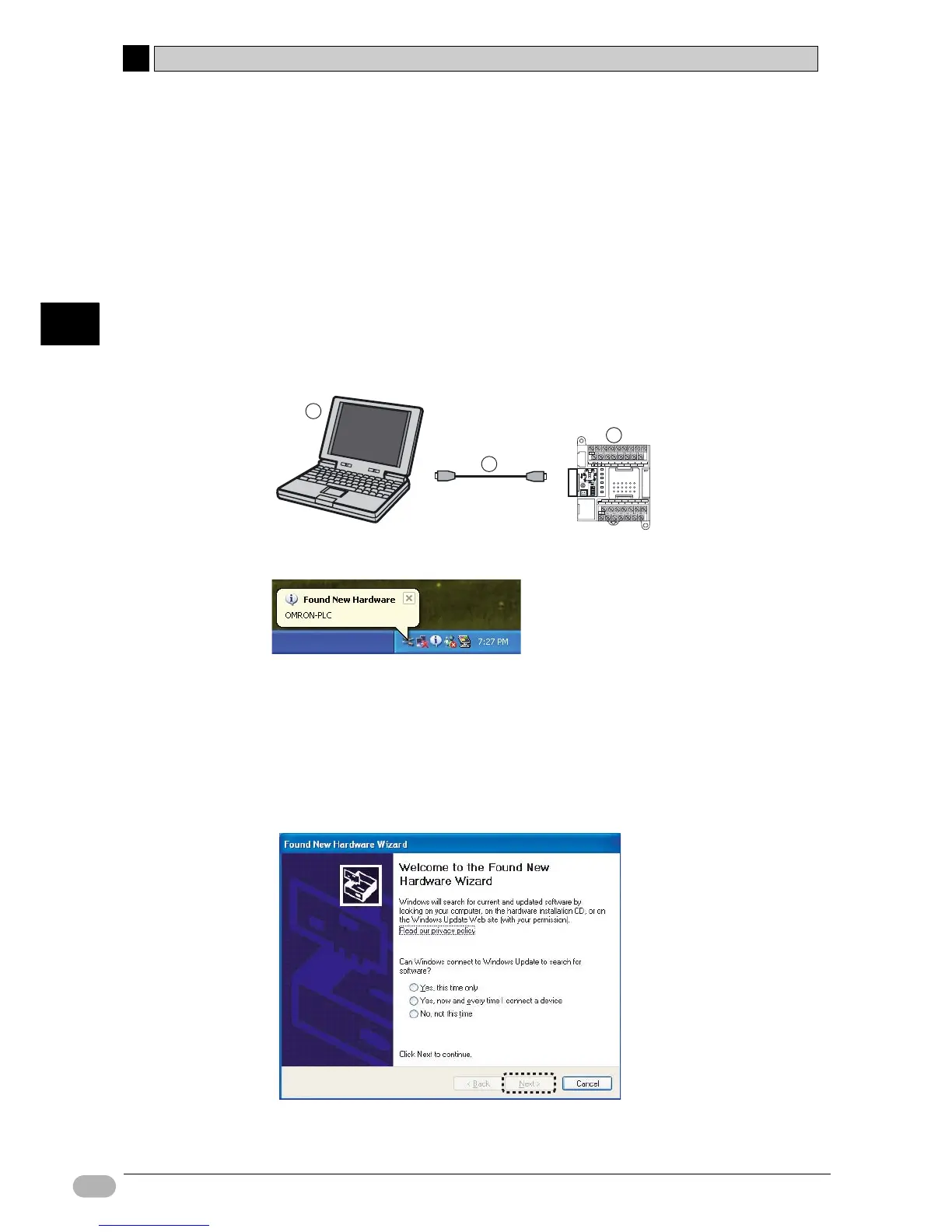

■Connecting to a Computer and Installing the USB Driver
This section explains how to connect CP1L to a computer running Windows XP.
For details on connecting CP1L to a computer running Windows 2000 or Vista,
refer to 1-3-1 Connecting with a Commercially Available USB Cable of CP
Series CP1L CPU Unit User’s Manual (W462) or 4-2-2 Installing the USB
Driver of CP Series CP1E CPU Unit Hardware User's Manual (W479).
1. Turn the power ON for CP1L and the computer.
2. Using a USB cable (2), connect the peripheral USB port (3) on CP1L to a
USB port on the computer
(1).
When the computer detects CP1L, the following message will be displayed.
The Found New Hardware Wizard dialog box will be displayed. This screen will be
used to install the USB driver.
Note The programming console is not available.
3. The following dialog box will be displayed. Select one of the options and
click [Next].
BATTERY
L1 L2/N COM 01 03 05 07 NC NC
00 02 04 06 NC NC
NC 00 01 02 03 04 NC
NC COM COM COM COM 05 NC
IN
OUT
23456
1
2
3
To Next Page
