94 SYSMAC CP1L/CP1E Introduction Manual
Transferring and Debugging Programs
5-2-2 Force-Setting/Force-Resetting
CX-Programmer can control inputs, independent of inputs from I/O devices. Use
this function to force input conditions and output conditions during test runs.
Note Before force-setting/force-resetting/releasing or setting/resetting, confirm that the
facility will not be affected.

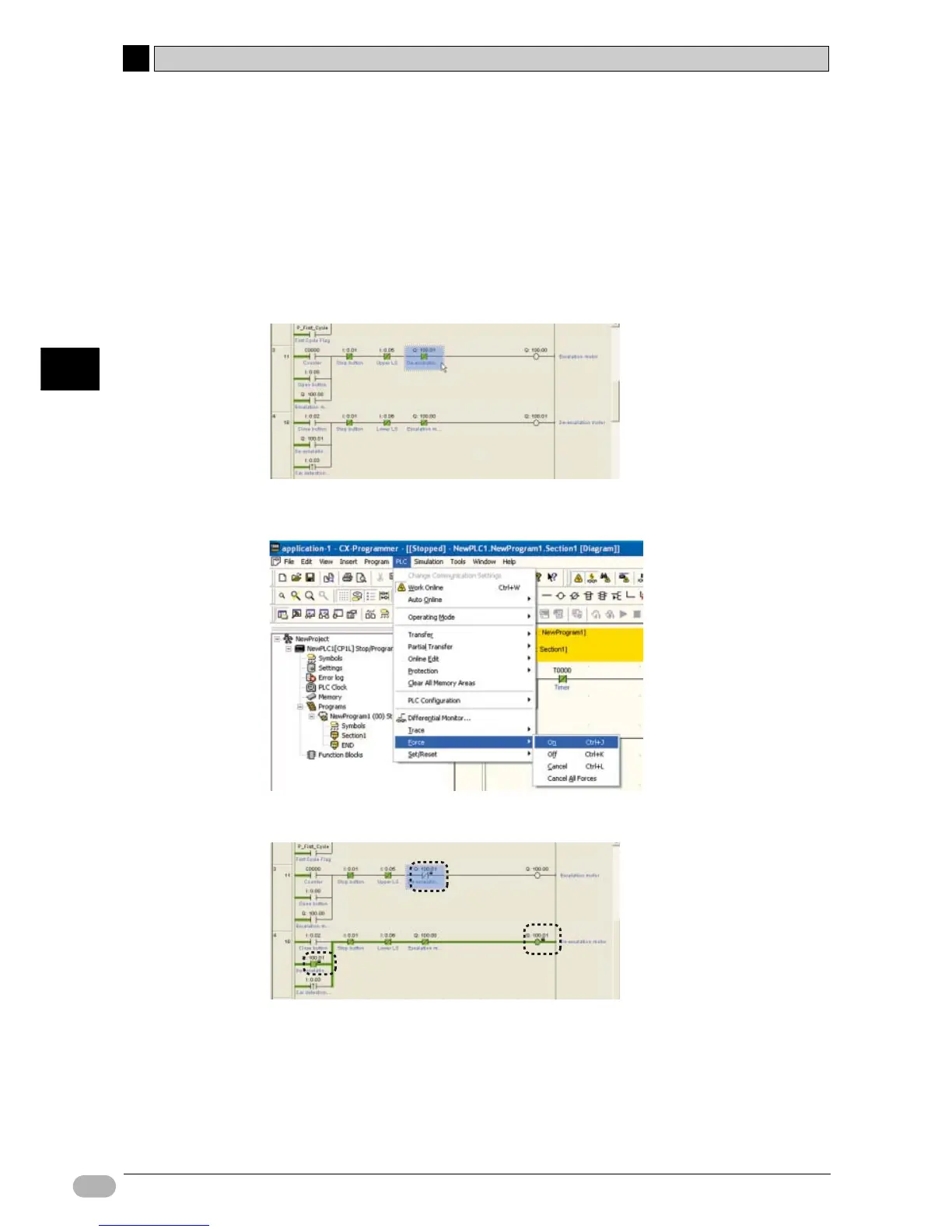

The force-setting procedure is as follows.
1. Change CP1L to the MONITOR or PROGRAM operating mode.
2. Place the cursor on the contact to force-set.
3. Select [PLC] - [Force] - [On] from the main menu.
Force-set will be set. The contact will be marked with the force-set symbol.
Note
• Select [On] to force the contact ON, and [Off] to force the contact OFF.
• To undo the force-set/force-reset, select [Cancel].
• The following areas can be force-set/force-reset:
CIO area (I/O area, data link area, CPU bus unit area, special I/O area, and work
area), work area (WR), timer completion flag, holding area (HR), counter
completion flag
