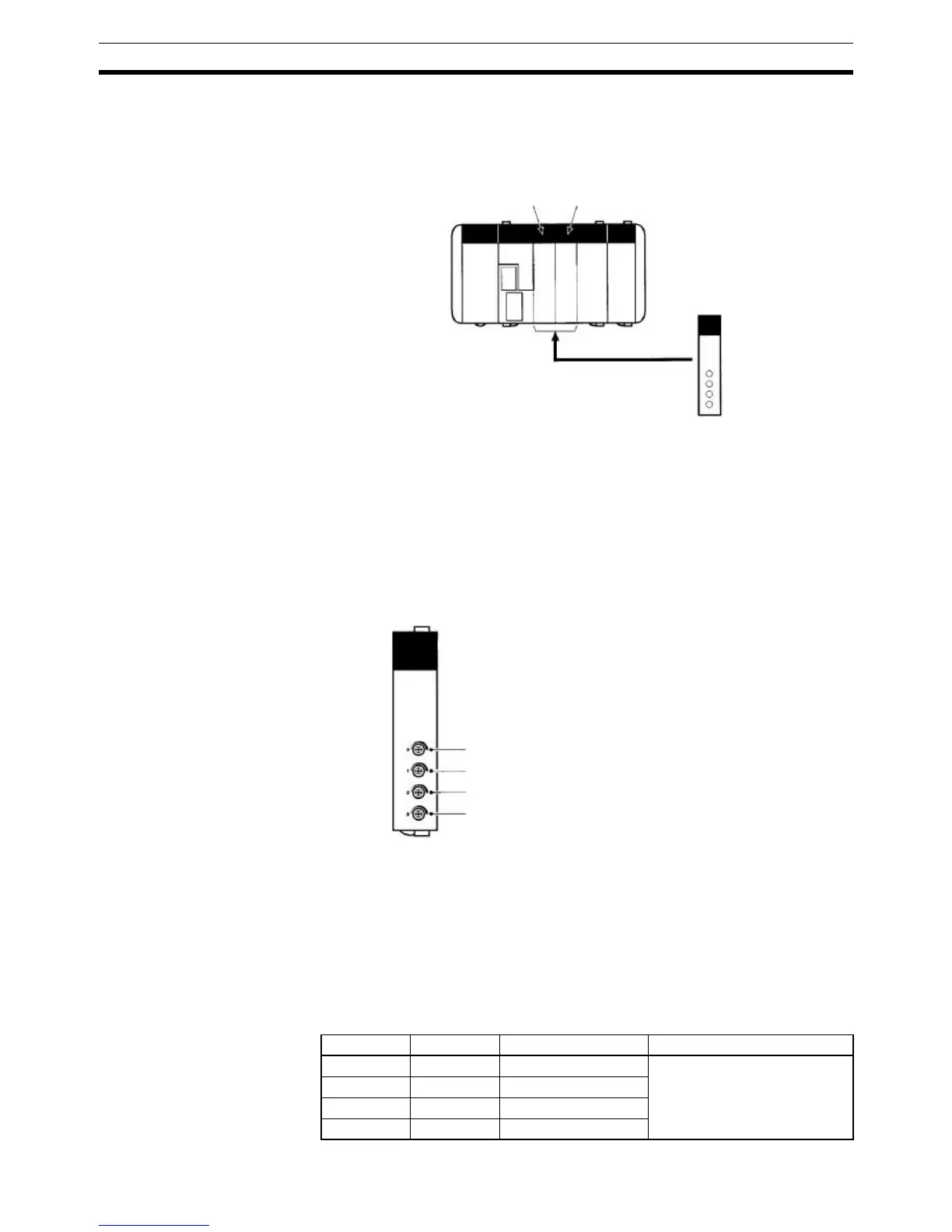

Analog Setting Board Section 2-4
2-4-3 Applicable Inner Board Slots
The Analog Setting Board can be installed in either slot 1 (left slot) or slot 2
(right slot) of the CQM1H-CPU51/61 CPU Unit. Both slots, however, cannot
be used at the same time.
2-4-4 Names and Functions
The four analog controls of the Analog Setting Board are located on the front
panel. The front panel does not have any indicators.
The value of the setting increases as the control is rotated clockwise. Use a
small Phillips screwdriver for this purpose.
Specifying IR 220 to IR 223 as the set value of a TIM instruction enables the
Board to be used as an analog timer. When the timer is started, the analog
settings are stored as the timer set value.
!Caution While the power is turned ON, the contents of IR 220 to IR 223 are constantly
refreshed with the values of the corresponding controls. Be sure that these
words are not written to from the program or a Programming Device.
2-4-5 Specifications
Relevant Bits The values of the Analog Setting Board analog controls are stored in the fol-
lowing addresses of the Inner Board area regardless of the slot in which the
Board is mounted.
Slot 1 Slot 2
Install in one slot only.
The value for this control is stored in IR 220.
The value for this control is stored in IR 221.
The value for this control is stored in IR 222.
The value for this control is stored in IR 223.
Word Bits Name Function
IR 220 00 to 15 Analog control 1 With each cycle, the values of
analog controls 0 to 3 are
stored as 4-digit BCD values
between 0000 and 0200.
IR 221 00 to 15 Analog control 2
IR 222 00 to 15 Analog control 3
IR 223 00 to 15 Analog control 4
