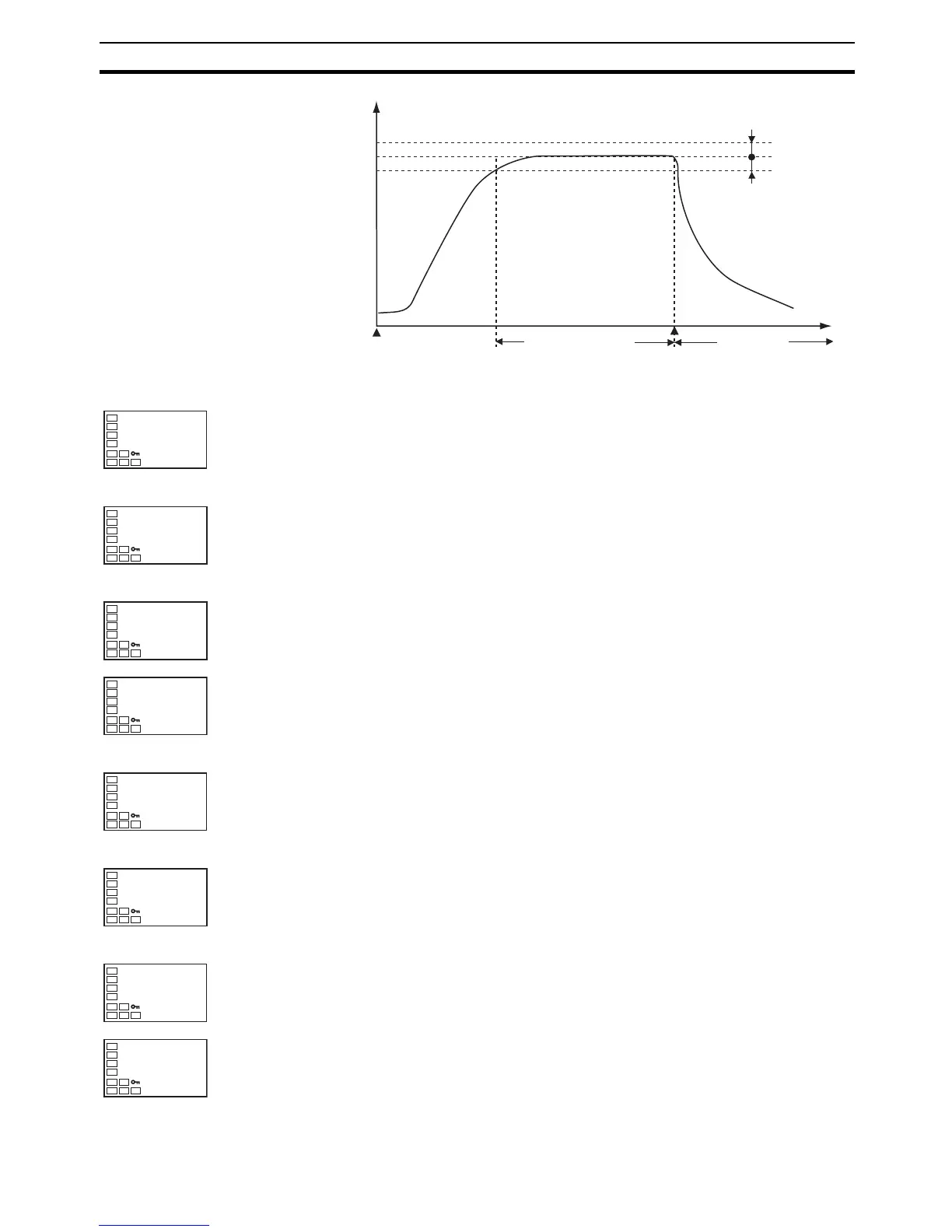

Using the Simple Program Function Section 4-15
STOP
RSET → STRT
PV
Set point
Wait band = 3
Soak time = 10 min END display
END output
Operation Level
Initial Setting Level
1. Press the O Key for at least three seconds to move from the operation
level to the initial setting level.
Initial Setting Level
2. Select the Program Pattern parameter by pressing the M Key.
3. Use the U Key to set the parameter to STOP.
Operation Level
4. Press the O Key for at least one second to move from the initial setting
level to the operation level.
Adjustment Level
5. Press the O Key to move from the operation level to the adjustment level.
Adjustment Level
6. Select the Soak Time parameter by pressing the M Key.
7. Use the U Key to set the parameter to 10. (The soak time unit is set in
Soak Time Unit parameter in the advanced function setting level. The de-
fault is m (minutes).
C
25
100
PV/SP
in-t
5
Input Type
ptrn
off
Program Pattern
ptrn
stop
C
25
100
PV/SP
l.adj
Adjustment Level
Display
soak
1
Soak Time
soak
10
