Setting Level Configuration and Key Operations Section 1-3

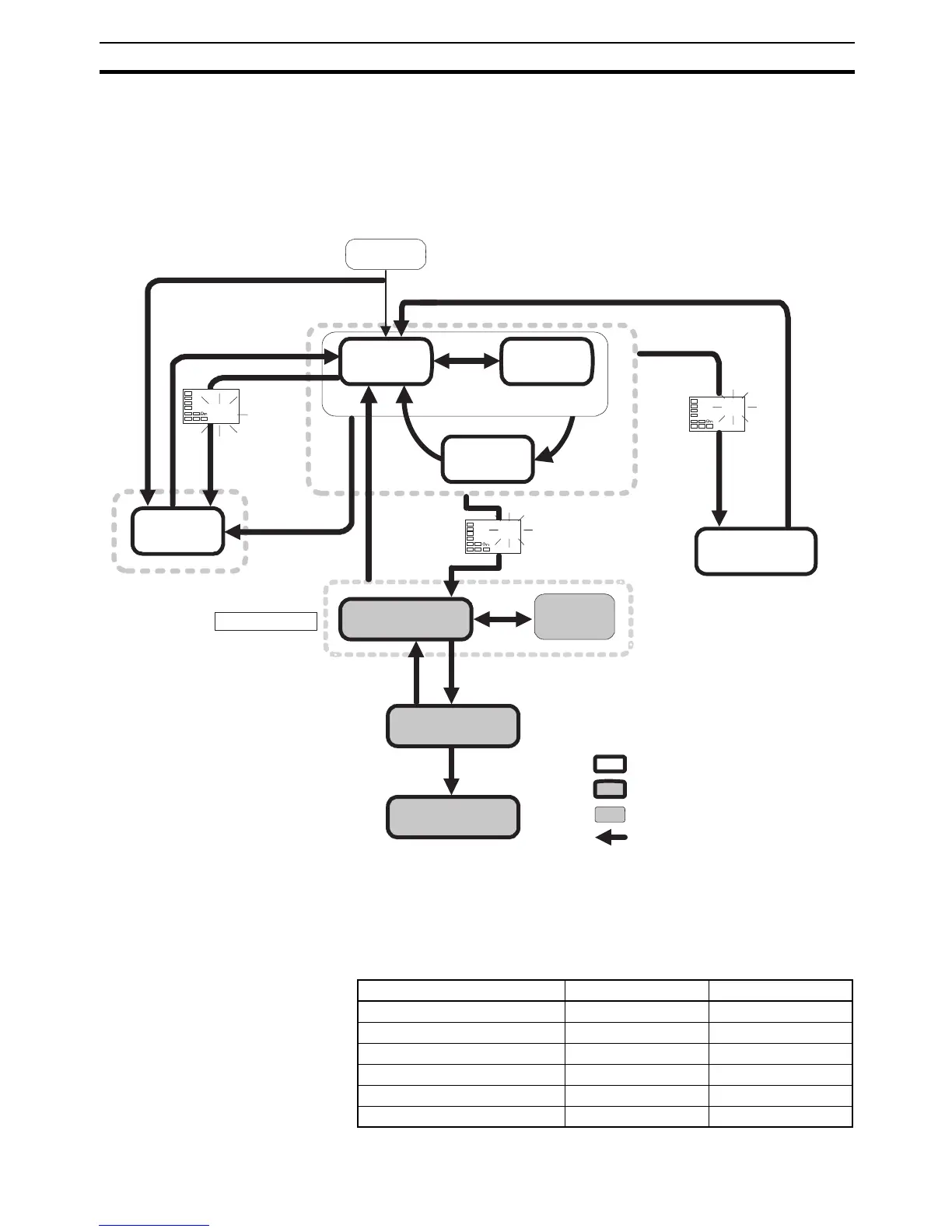

1-3 Setting Level Configuration and Key Operations
Parameters are divided into groups, each called a level. Each of the set val-
ues (setting items) in these levels is called a parameter. The parameters on
the E5CN/CN-U/AN/EN/GN are divided into the following 9 levels.
When the power is turned ON, all of the display lights for approximately one
second.
Note (1) You can return to the operation level by executing a software reset.
(2) You cannot move to other levels by operating the keys on the front panel
from the calibration level. You must turn OFF the power supply.
(3) From the manual control level, key operations can be used to move to the
operation level only.
Start in manual mode.
25
100
c
25
100
c
a-m
Power ON
(See
note
3.)
(See
note 1.)
(See
note 2.)
Manual
mode
Press the O Key or the
PF Key for at least 1 s.
(See note 4.)
Press the O Key
for at least 3 s while
a-m is displayed.
(a-m will flash after
1st second.)
Operation
Level
Press the
O Key for
at least 1 s.
Press the O Key
for at least 1 s.
Input password.
Input password while
amoV is displayed. (Set
value −169)
Press the
O Key less than 1 s.
Press the O Key for at
least 3 s. (Display will flash
after 1st second.)
Control stops.
Press the
O Key for less than 1 s.
Press the
O+ M
Keys for at
least 3 s.
(Display
will flash
after 1st
second.)
Protect Level
Control in progress
Level change
Not displayed for some models
Control stopped
Start in automatic mode.
Adjustment
Level
(See note 4.)
PF Key
(See note 5.)
PF Key
(See note 5.)
Initial Setting
Level
Manual
Control Level
Monitor/Setting
Item Level
Advanced Function
Setting Level
Calibration Level
Press the PF Key
for at least 1 s.
Communica-
tions Setting
Level
Press the
O+ M
Keys for at
least 1 s.
Note The time taken to move
to the protect level can
be adjusted by chang-
ing the "Move to pro-
tect level time" setting.
(Refer to page 228.)
Level Control in progress Control stopped
Protect level Can be set. ---
Operation level Can be set. ---
Adjustment level Can be set. ---
Manual control level Can be set. ---
Monitor/setting item level Can be set. ---
Initial setting level --- Can be set.
