Omron E5AN User Manual

273
Checking Indication Accuracy
Section 6-7

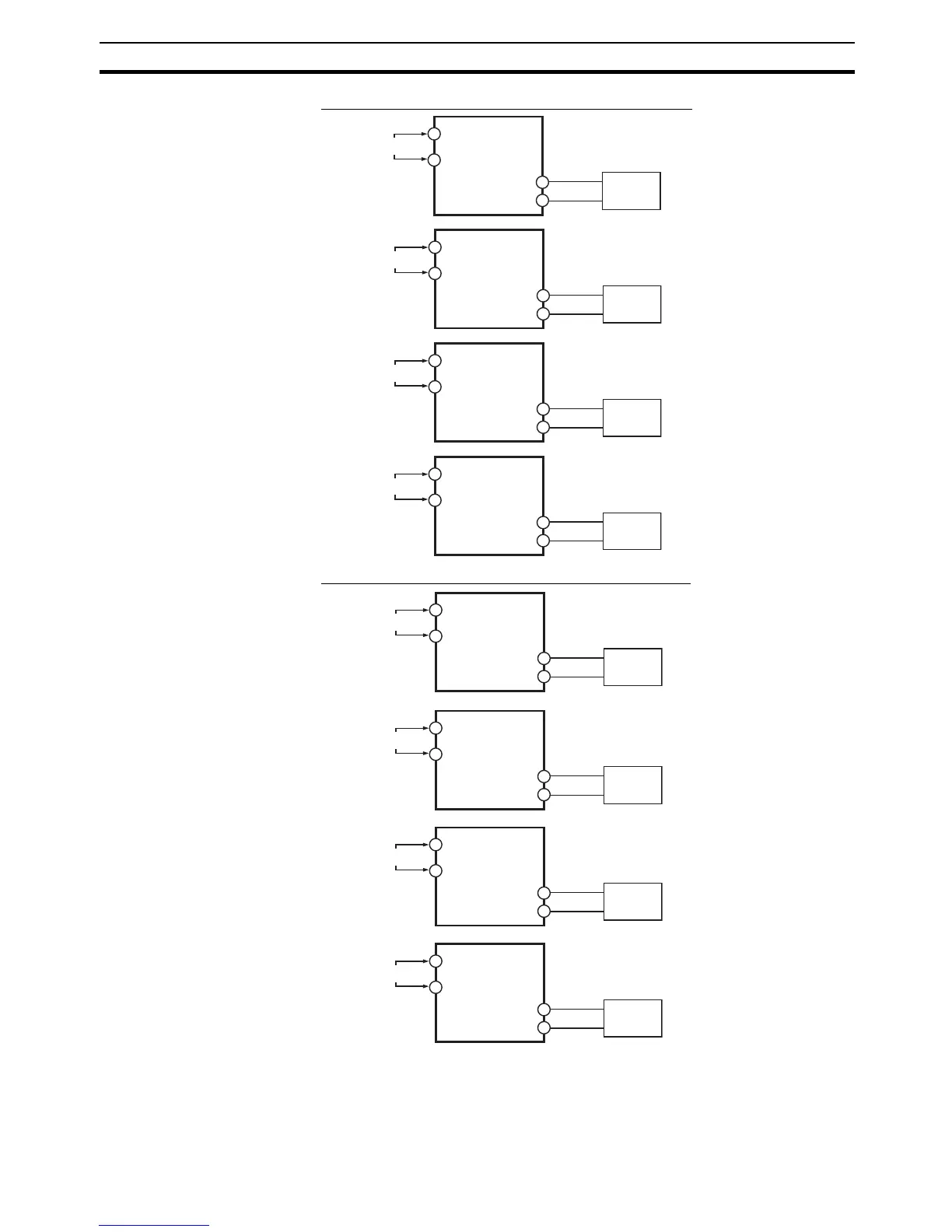

Current Input for a Controller with an Analog Input
Voltage Input for a Controller with an Analog Input
• Operation
Set the STV output to the voltage or current equivalent to the check value.
E5CN
3
4
10
9
STV
+
−
Input power supply
E5AN/EN
18
19
2
1
STV
+
−
Input power supply
E5GN
10
11
2
1
STV
+
−
Input power supply
E5CN-U
3
2
11
10
STV
+
−
Input power supply
E5CN
4
5
10
9
STV
−
+
Input power supply
E5AN/EN
19
20
2
1
STV
−
+
Input power supply
E5GN
11
12
2
1
STV
−
+
Input power supply
E5CN-U
2
1
11
10
STV
−
+
Input power supply
