2 Preparations
2 - 32
E5@C Digital Temperature Controllers User’s Manual (H174)

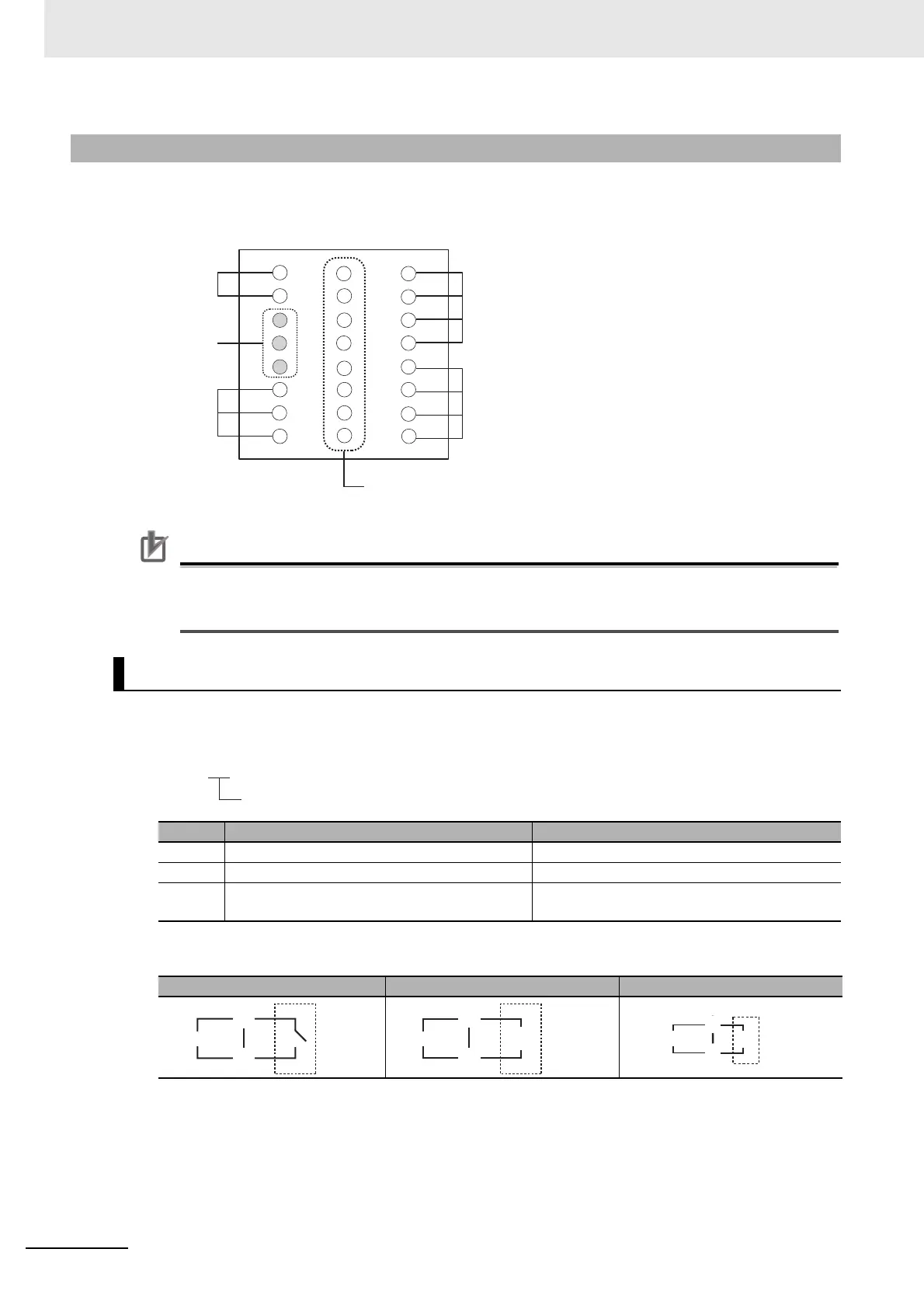

 Terminal Arrangement
The terminals block of the E5CC-B is divided into five types of terminals: control output 1, sensor input, auxiliary
outputs, input power supply, and options.
Precautions for Correct Use
When you purchase the Digital Controller, it will be set for a K thermocouple (input type = 5). If a
different sensor is used, an input error (s.err) will occur. Check the setting of the Input Type
parameter.
 Model Numbers
The specification for control output 1 is given in the following location in the model number.
 Terminal Details
2-2-3 E5CC-B Terminal Block Wiring Example
Control Output 1
Code Output type Specification
RX 1 relay output 250 VAC, 3 A (resistive load)
QX 1 voltage output (for driving SSR) 12 VDC, 21 mA
CX 1 linear current output 4 to 20 mA DC or 0 to 20 mA DC with load of
500 Ω max.
RX QX CX
Control
output 1
Not used.
Sensor
input
Auxiliary
outputs
Input
power
supply
Options
1
9
2
3
4
5
6
7
8
18
19
17
10
11
12
13
14
15
16
20
21
22
23
24
E5CC-@@ @ @ B M-@@@
Control output 1
Control output 1 Relay output
A
B
−
+
A
B
Control Output 1
Voltage output
(for driving SSR)
A
B
+
−
Control output 1
Linear current
output
