STC-MBS43U3V / STC-MCS43U3V / STC-MBS163U3V / STC-MCS163U3V
Product Specifications and Use’s Guide

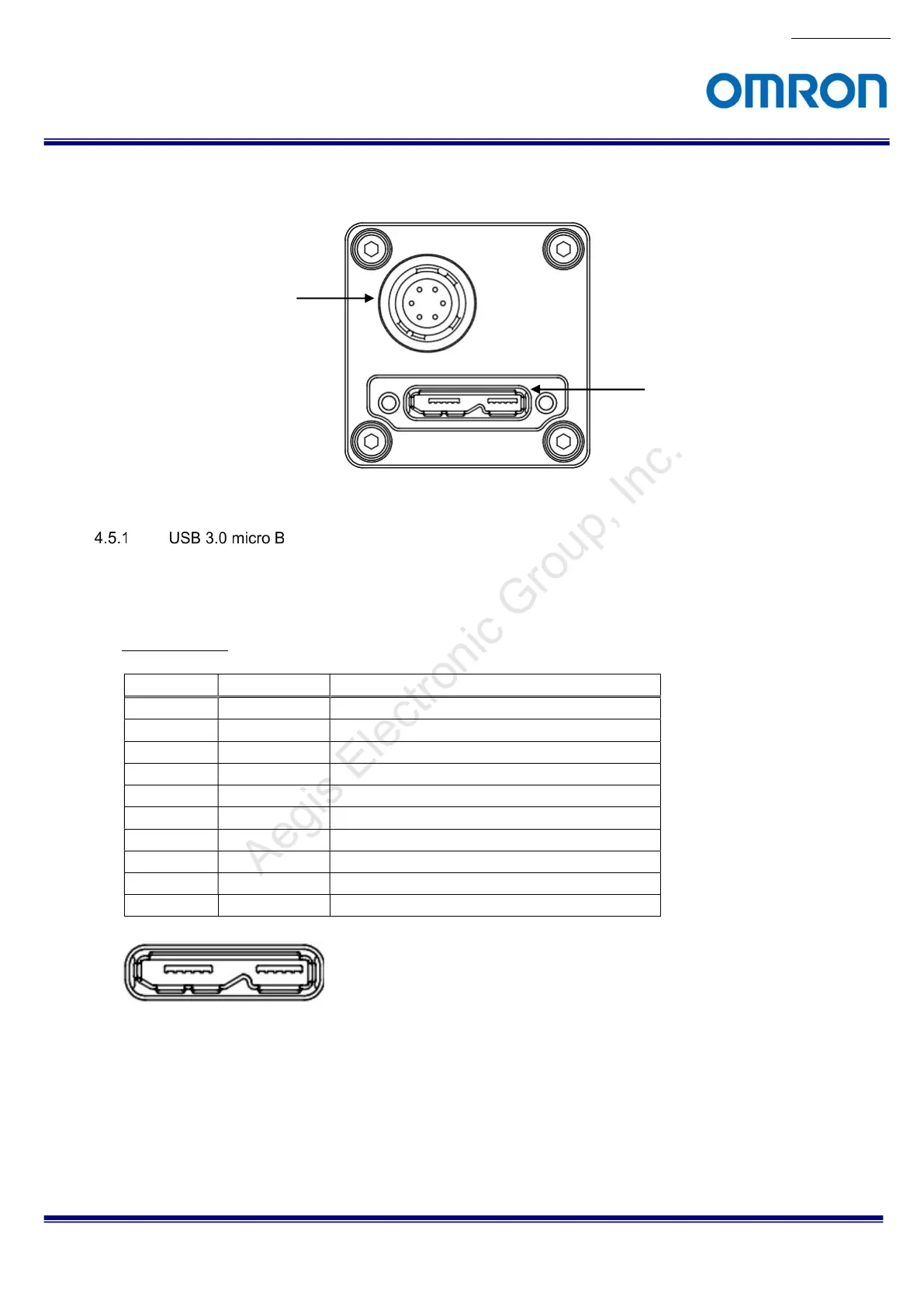

4.5 External Connector Specifications
This connector is compatible with a USB 3.0 micro B connector.
Connector size includes screw lock size and complies with USB3 Vision 1.0.1.
Pin assignment
Pin No. Signal Name Description
1 VBUS Power
2 D− USB 2.0 differential pair (D−)
3 D+ USB 2.0 differential pair (D+)
4 USB OTG USB OTG ID
5 GND GND
6 SSTX− SuperSpeed transmitter differential pair (−)
7 SSTX+ SuperSpeed transmitter differential pair (+)
8 GND GND
9 SSRX− SuperSpeed receiver differential pair (−)
10 SSRX+ SuperSpeed receiver differential pair (+)
IO Connector
USB 3.0 micro B
Connector
12345 678910
