Omron USB3 Vision Series User Manual

No.17S010-01
33/68
STC-MBS43U3V / STC-MCS43U3V / STC-MBS163U3V / STC-MCS163U3V
Product Specifications and Use’s Guide

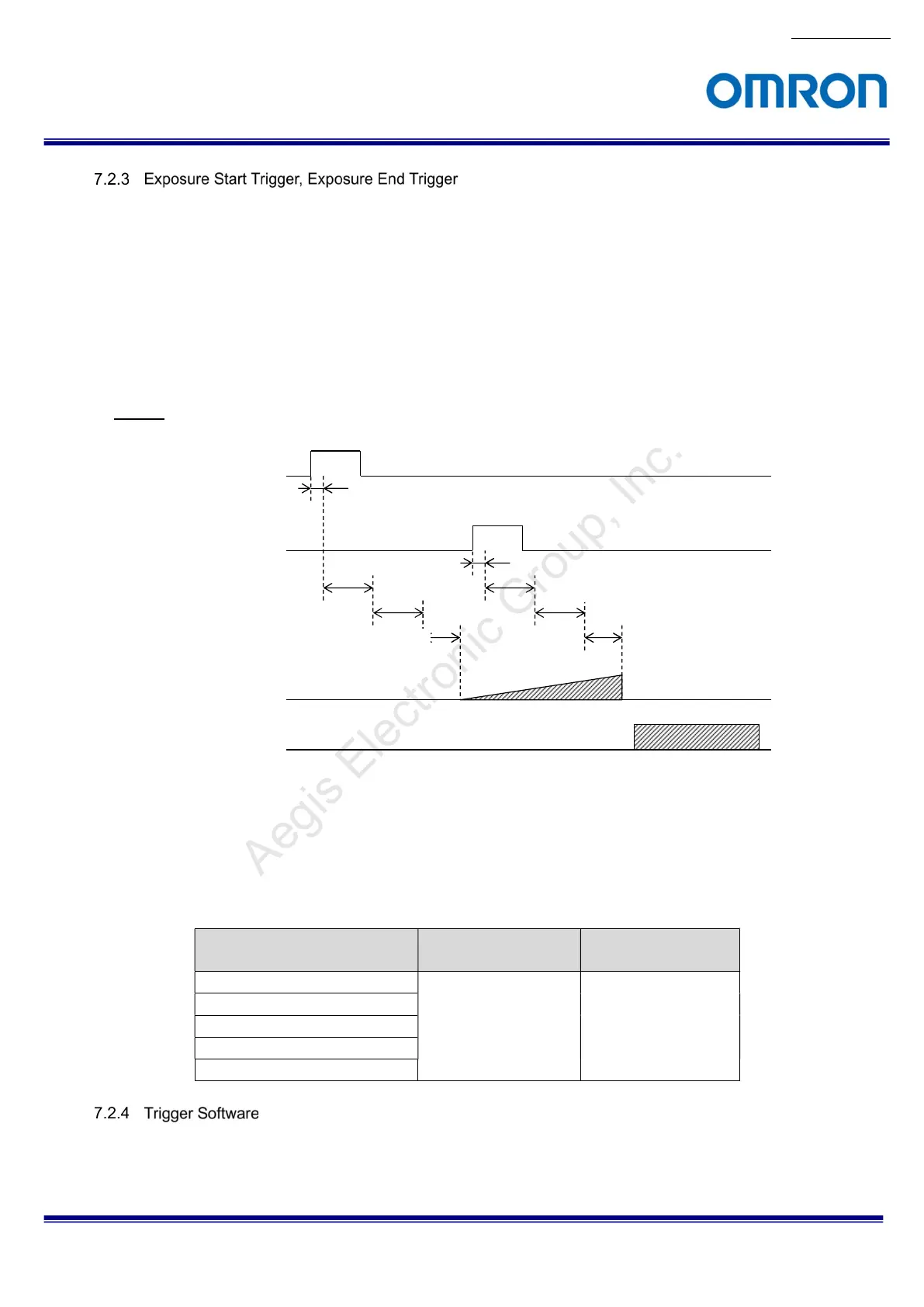

Exposure Start trigger determines exposure start timing, Exposure End trigger determines exposure end timing.
To operate the camera under this mode, the following settings have to be set.
・Exposure Mode: Trigger Controlled
・Selects Trigger Selector: Exposure Start, and Trigger Mode: On
・Selects Trigger Selector: Exposure End, and Trigger Mode: On
(*) On Trigger Mode except Frame Start should be set Off.
Timing
(*)When all of Trigger Mode (Frame Start trigger, Exposure Start trigger, Exposure End) are On, camera’s behavior
depends on Exposure Mode setting.
When the Exposure Mode sets the Trigger Control, this function works through Trigger Start/End Trigger
This function works through Frame Start trigger for the remainder of the Exposure Mode.
Delay time on exposure start timing in the sensor Jitter (unit: μseconds)
Video Output Format
STC-MBS43U3V
STC-MCS43U3V
STC-MBS163U3V
STC-MCS163U3V
8bits 0 to 13.4 0 to 11.4
10bits
10bits Packed
12bits
12bits Packed
This function can apply either external signal or a software command as the trigger.
The software trigger can be applied through the “execute Trigger Software” command when the trigger is
selected on the Trigger Selector.
ExposureStartトリガー
ExposureStopトリガー
I/O遅延(tIPDLH)
露光
映像出力
LineDebounceTime
TriggerDelay
I/O遅延(tIPDLH)
LineDebounceTime
TriggerDelay
センサー内部の露光開始遅延
センサー内部の露光開始遅延
Exposure
Video Out
Trigger Input
(Positive)
Trigger Input
(Negative)
I/O Delay (tIPDLH)
Exposure
Start Duration
inside of
sensor
I/O Delay (tIPDLH)
Exposure Start Duration
inside of
sensor
