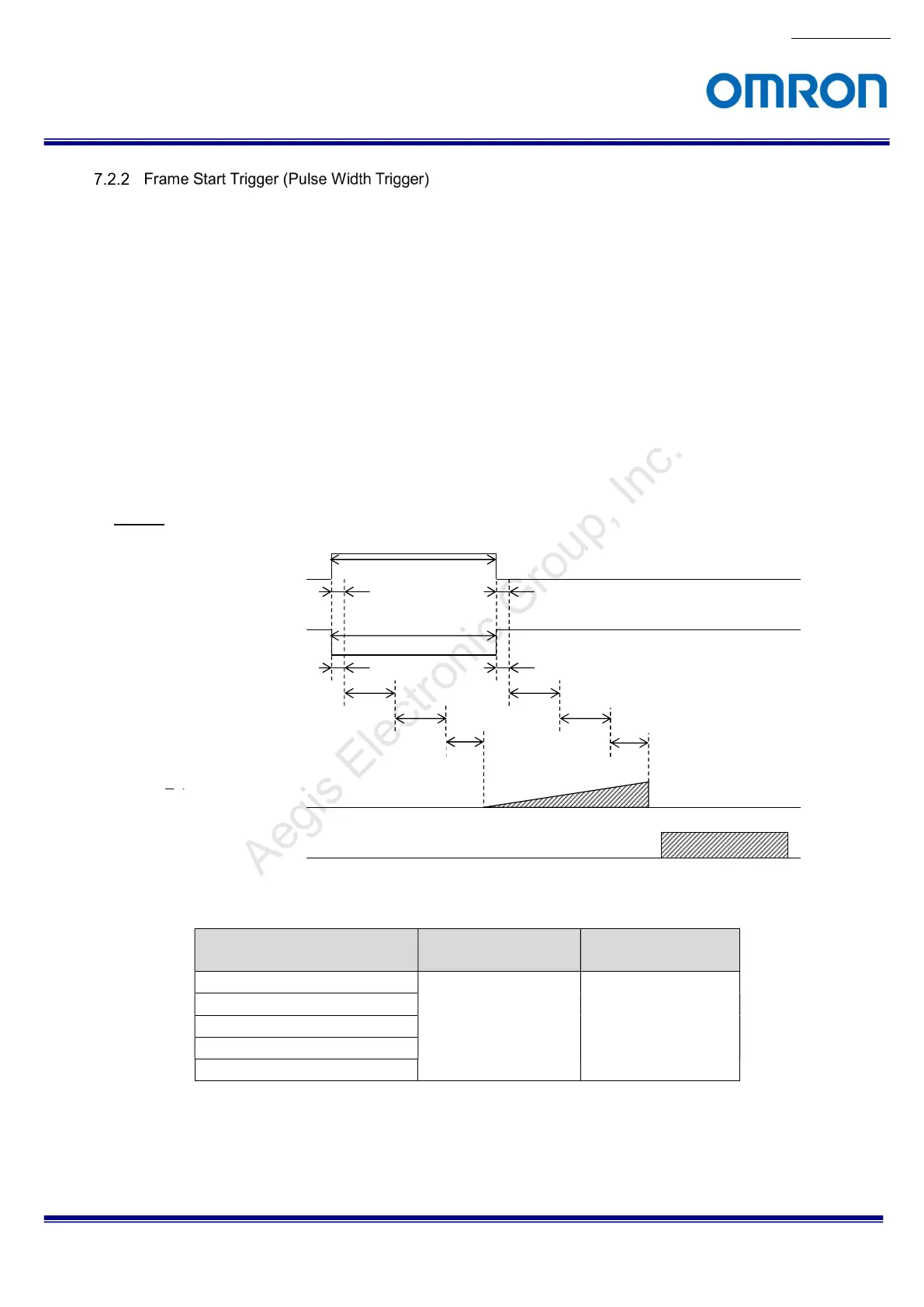

When operating in this mode, the exposure synchronizes the trigger signal.
The exposure time can be controlled by the pulse width of Frame Start trigger.
When the polarity on the Line Inverter is positive (false), the exposure can be controlled at a period of High level
of input trigger signal.
When the polarity on the Line Inverter is negative (true), the exposure can be controlled at a period of Low level
of input trigger signal.
To operate the camera in this mode, the following settings have to be set.
・Exposure Mode: Trigger Width
・Trigger Selector: Frame Start
・Trigger Mode: On
(*) On Trigger Mode except Frame Start should be set Off.
Timing
Delay time on exposure start timing in the sensor Jitter (unit: μseconds)
Video Output Format
STC-MBS43U3V
STC-MCS43U3V
STC-MBS163U3V
STC-MCS163U3V
8bits 0 to 13.4 0 to 11.4
10bits
10bits Packed
12bits
12bits Packed
トリガー入力(正極性)
トリガー入力(負極性)
I/O遅延(tIPDHL)
tPW
tPW
I/O遅延(tIPDLH)
露光
映像出力
LineDebounceTime
TriggerDelay
I/O遅延(tIPDLH)
I/O遅延(tIPDHL)
LineDebounceTime
TriggerDelay
センサー内部の露光開始遅延
センサー内部の露光開始遅延
Exposure
VideoOut
Trigger Input
(Positive)
Trigger Input
(Negative)
I/O Delay (tIPDLH)
I/O Delay (tIPDHL)
Exposure Start Duration
inside of
sensor
Exposure
Start Duration
inside of
sensor
I/O Delay (tIPDHL)
I/O Delay (tIPDLH)
