Omron USB3 Vision Series User Manual

No.17S010-01
39/68
STC-MBS43U3V / STC-MCS43U3V / STC-MBS163U3V / STC-MCS163U3V
Product Specifications and Use’s Guide
9 Camera Functions
This chapter describes the camera functions.
9.1 ROI (Region of Interest)
This sets the ROI in order to output the selected area of image.
The frame rate increases when reducing the height of image. The frame rate does not change when reducing the
width of image.
GenICam Parameters
Width Integer Type Horizontal (Pixel) size
Sets the width of image. “Width + OffsetX” should not exceed the maximum
width.
Height Integer Type Vertical (Line) size
Sets the height of image. “Height + OffsetY” should not exceed the maximum
height.
OffsetX Integer Type Horizontal (Pixel) offset
Default: 0
Setting steps: 4 pixels
OffsetY Integer Type Vertical (Line) offset
Default: 0
Setting steps: 4 lines

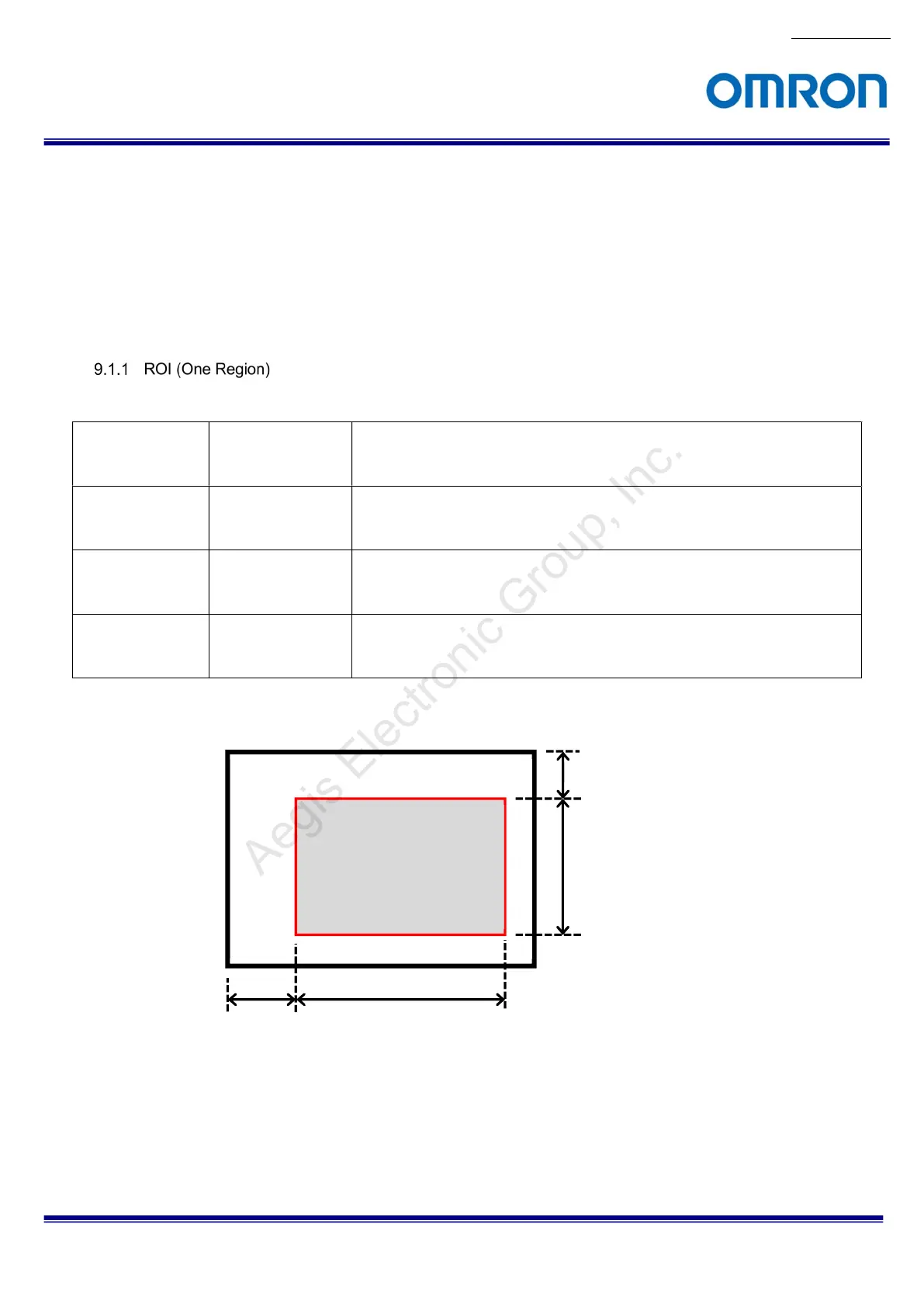

The parameters define as following chart.
(*) Width, Height, OffsetX, OffestY setting steps is the same in Binning and Decimation.
Width
Height
OffsetX
OffsetY
ROI Region
