Diagram of Functions and Settings

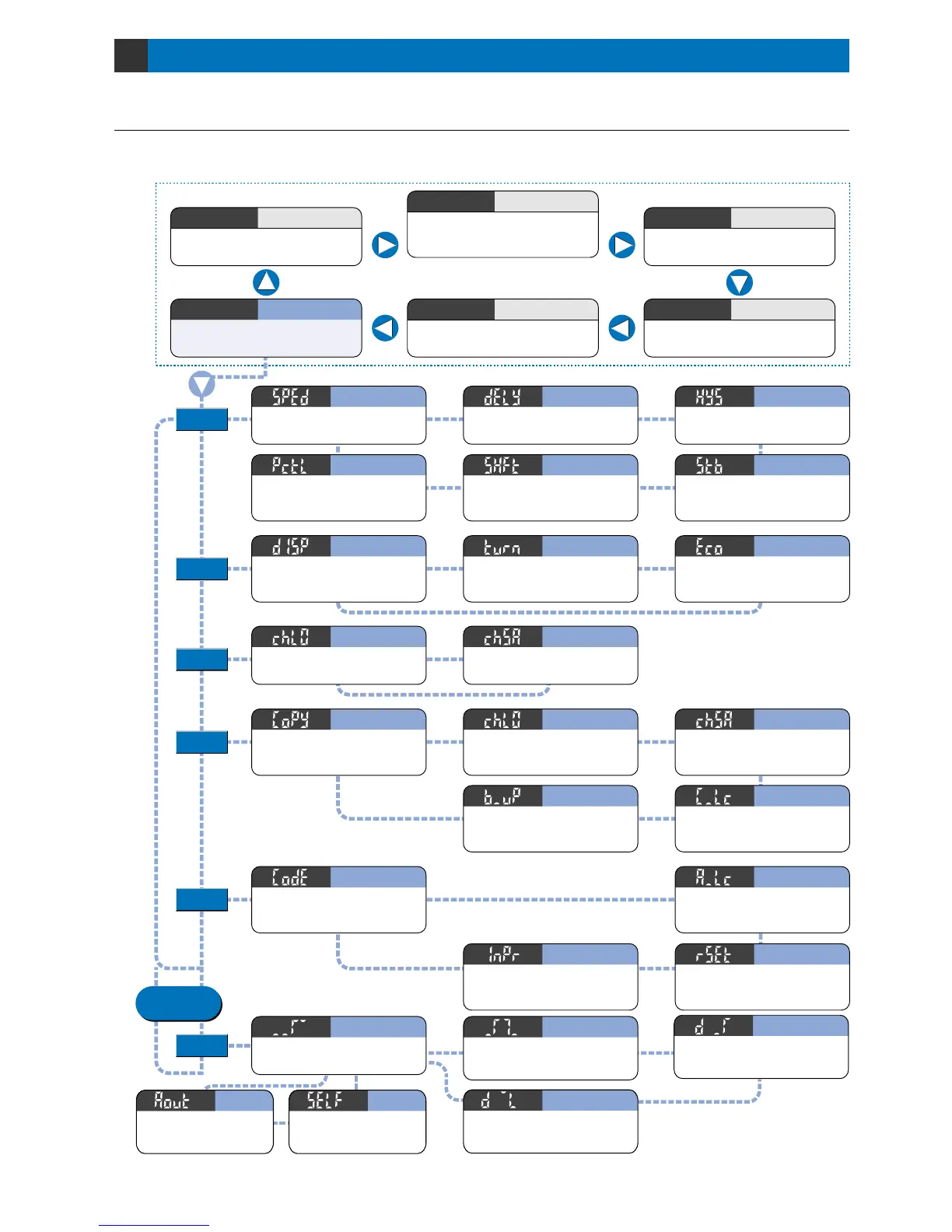

2-1. Diagram of Functions and Settings
2
The amplifier features and settings are generally classified into two main modes; the ‘NAVI mode’ for items and
settings that are frequently reconfigured, and the ‘PRO mode’ that contains more detailed settings.
Allows fine adjustment of the
‘threshold value’. (Refer to p.19~)
Adjust
ADJ
The ‘threshold value’ can be set by utilizing
either ‘2-level teaching’, ‘limit teaching’ or
‘full-auto teaching’. (Refer to p.10~)
This indicates normal sensing
operation.
Run
RUN
NAVI
mode
PRO
mode
Sets output operation either Light-
ON, or Dark-ON. (Refer to p.22)
L-ON / D-ON
L/D
Configures operation of the timer.
(Refer to p.23)
Timer
TIMER
Switches among response
times. (Refer to p.27)
Response Time Change
Configures timer operation.
(Refer to p.28~)
Timer Setting
Sets hysteresis level.
(Refer to p.31)
Hysteresis
Teaching
TEACH
PRO1
PRO2
PRO3
PRO4
PRO5
Shifts the ‘threshold value’ by a
certain percentage increment in
‘limit teaching’. (Refer to p.33)
Shift
Permits selection of stability indicator response
levels for changes in the range for lighting up.
(Refer to p.32) [FX-301(P)(-HS) only]
Stability
Changes the light emitting a-
mount selection setting. (Refer
to p.34)
Light Emitting Amount Selection
Allows selection of different
content to be indicated in the
digital display. (Refer to p.37)
Digital Display Setting
Sets the viewing orientation of
the digital display.
(Refer to p.38)
Digital Display Inversion
Sets the digital display to turn
ON / OFF.
(Refer to p.39)
ECO Mode
Loads configuration setting from
the data bank. (Refer to p.41)
Data Bank Load
Saves configuration setting into
the data bank. (Refer to p.42)
Data Bank Save
Using optical communications, configuration
settings from the main unit are copied to
connected sub units all at once. (Refer to p.44)
Copy
Using optical communication, configuration
settings can be loaded from respective
data banks all at once. (Refer to p.45)
Remote Data Bank Load
Using optical communication, current configu-
ration settings can be saved into respective
data banks all at once. (Refer to p.46)
Remote Data Bank Save
Allows basic configuration information
to be set in a single step, by inputting
a 4-digit code. (Refer to p.51)
Code
Allows fine adjustment of the ‘threshold
value’ to be directly performed during
RUN mode. (Refer to p.52)
Adjust Lock
All settings, except for data
bank information, revert to
factory settings. (Refer to p.53)
Reset
Switches the number of units for which
interference prevention switching is enabled.
* FX-305(P) only. (Refer to p.54)
Interference Prevention
Switching
P.24~
P.35~
P.40~
P.43~
P.49~
When using optical communication for carrying out copy /
load / save operations all at once, this function allows optical
communication to pass through the unit. (Refer to p.47)
Communication Change
To Permit / Not to Permit
Allows not to save the threshold
value, by teaching via external
input in EEPROM. (Refer to p.48)
* The FX-301(P)-HS is not
equipped with a PRO4
setting function.
Backup
The items that can be set are different for output 1 and output 2.
P.55~
Output 1
Output 2
Sets a threshold value for ON /
OFF operation. (Refer to p.56)
Normal Mode
Judges if set two threshold values are within the
required range or not. This can be selected in
1-level / 2-level / 3-level teaching. (Refer to p.56)
Window Comparator Mode
Sensing mode that cancels out slight changes in
light intensity so that only sudden increases in
incident light intensity are sensed. (Refer to p.56)
Rising Differential Mode
PRO6
Trailing Differential Mode
Sensing mode that cancels out slight changes in
light intensity so that only sudden decreases in
incident light intensity are sensed. (Refer to p.56)
Error Output
Output when overcurrent occurs or when
a communication error occurs from
connected incompletely. (Refer to p.58)
Alarm Output
Be used as alarm output when the threshold
value for output 2 is linked to output 1 and
the light amount drops. (Refer to p.58)
Available only
in FX-305(P)
*
When the FX-305(P) is in window comparator mode,
the ‘threshold value’ can be set by either ‘1-level
teaching’, ‘2-level teaching’ or ‘3-level teaching’.
Allows various detailed settings to be configured, such as
optical communications, save / load and other settings.
Pro
PRO
2
To Next Page
