Press the MODE
key 5 times.
Turn the Jog switch
twice toward the
‘
’ direction.
Press the
Jog switch.
Turn the Jog switch
twice toward the
‘’ direction.
ECO
OFF
ECO
ON
Press the
Jog switch.
Press the
Jog switch.
Turn the Jog switch to
select either ON or OFF.
No operation has been
performed for 20 sec.
Only when
ECO ON
Operating either the MODE
key or the Jog switch causes
the display to light up again.
When ECO mode is OFF:
40 mA or less (at 24 V supply voltage)
When ECO mode is ON:
25 mA or less (at 24 V supply voltage)
Current Consumption
The digital display will quickly
blink 3 times to confirm the setting.
Press the MODE key
3 times or keep it
pressed for 2 sec. or
more.

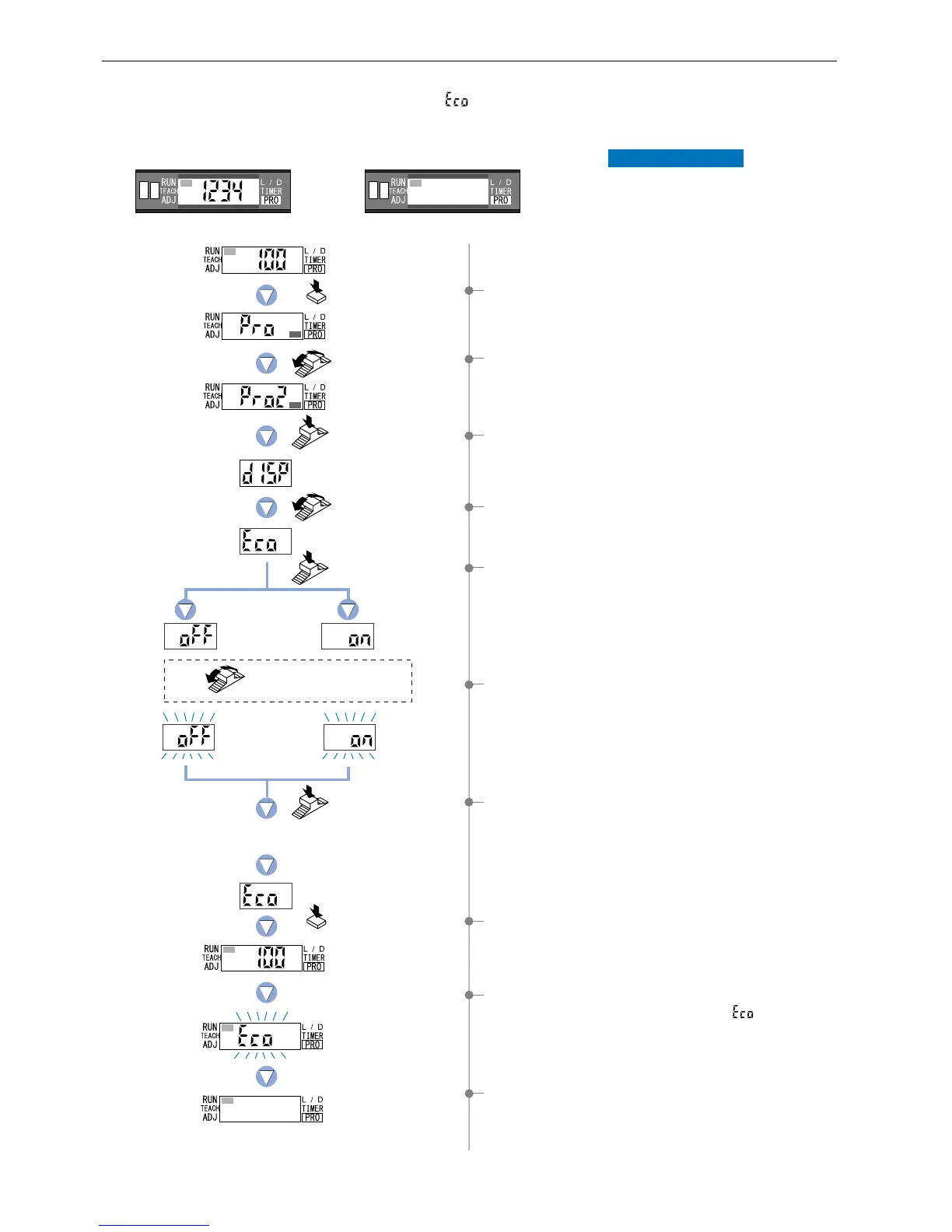

6-4. ECO Mode Setting Function
This function turns off the digital display to reduce current consumption.
If no operations are performed for 20 sec., the letters ‘ ’ will blink and then the digital display will turn off.
If the [MODE key] or the [Jog switch] are operated, the digital display will light up again.
When set to ECO OFF When set to ECO ON
1 Press the [MODE key] 5 times to select ‘PRO mode’.
2 Turn the [Jog switch] twice toward the ‘’ direction,
to select ‘PRO2 mode’.
3
Press the [Jog switch] to enter the ‘digital display setting’ state.
4 Turn the [Jog switch] twice toward the ‘’ direction, to enter
the ‘ECO mode setting’ state.
5 If the [Jog switch] is pressed, the current setting will be
displayed.
* The factory setting is ‘ECO OFF’.
6 If the [Jog switch] is turned, the digital display will blink.
Select from either ‘ECO ON’ or ‘ECO OFF’.
7 If the [Jog switch] is pressed, the digital display will quickly
blink 3 times, confirming the setting.
8Press the [MODE key] 3 times or keep it pressed for 2 sec.
or more, the amplifier will return to ‘RUN mode’ (normal
sensing operation).
0 If the [MODE key] or the [Jog switch] are operated,
the digital display will light up again.
To return the unit to the original state, select the setting
‘ECO OFF’.
9Only when the unit is set to ECO ON and no operations
are performed for 20 sec., will the letters ‘ ’ blink and
the digital display then turn off.
