The digital display will quickly
blink 3 times to confirm the setting.
Press the MODE key
3 times or keep it
pressed for 2 sec. or
more.
6-2. Digital Display Setting Function
This function allows the display to be switched among the different digital displays
(incident light intensity display, percentage display, peak hold display, bottom hold display, changed intensity display).
1 Press the [MODE key] 5 times to select ‘PRO mode’.
2 Turn the [Jog switch] twice toward the ‘’ direction,
to select ‘PRO2 mode’.
3
Press the [Jog switch] to enter the ‘digital display setting’ state.
4 If the [Jog switch] is pressed, the current ‘display setting’ will
be displayed.
* The factory setting is ‘incident light intensity display’.
‘ ’ is only enabled when ‘ ’ or ‘ ’ differential mode is
selected for the FX-305(P).
5 If the [Jog switch] is turned, the digital display will blink.
Select the desired ‘display setting’.
However, when the FX-305(P) is in window comparator mode,
the percentage display function cannot be utilized.
6 If the [Jog switch] is pressed, the digital display will quickly
blink 3 times and the ‘display setting’ will be confirmed.
7 Press the [MODE key] 3 times or keep it pressed for 2 sec.
or more, the amplifier will return to ‘RUN mode’ (normal
sensing operation).

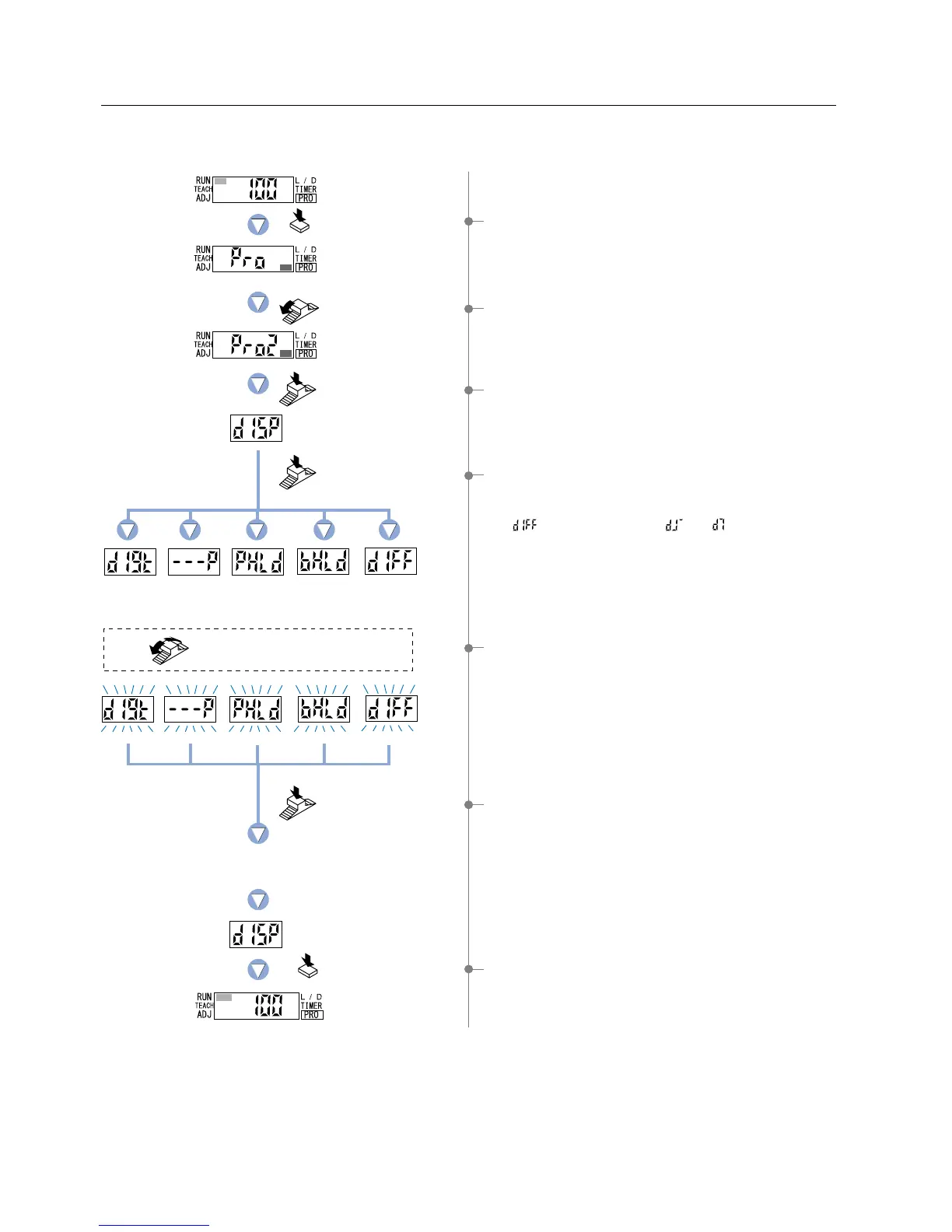

Press the MODE
key 5 times.
Turn the Jog switch
twice toward the
‘
’ direction.
Press the
Jog switch.
Press the
Jog switch.
Turn the Jog switch to select
the desired display setting.
Incident light
intensity display
Percentage
display
Peak hold
display
Bottom hold
display
Press the
Jog switch.
Changed intensity
display
[FX-305(P) only]
