Press the MODE key
5 times.
Press the Jog switch.
Turn the Jog switch 5 times
toward the ‘
’ direction.
Press the Jog switch.
Press the Jog switch.
Press the Jog
switch to confirm
the selection.
Turn the Jog switch
to select the desired code.
Press the MODE key
3 times or keep it pressed
for 2 sec. or more.
The digital display will
quickly blink 3 times to
confirm the setting.
Turn the Jog
switch to select the
desired code.
repeat this motion
3 times.
ex.)
FX-301(P): Setting of Code 3013
Response time : LONG
Hysteresis : standard
L-ON / D-ON : L-ON
Display : Incident
light
intensity
Adjust lock : ON
Timer operation : OFF-delay
Timer period : 5 ms
*
Refer to p.49 ‘Code Setting Table’.
( )

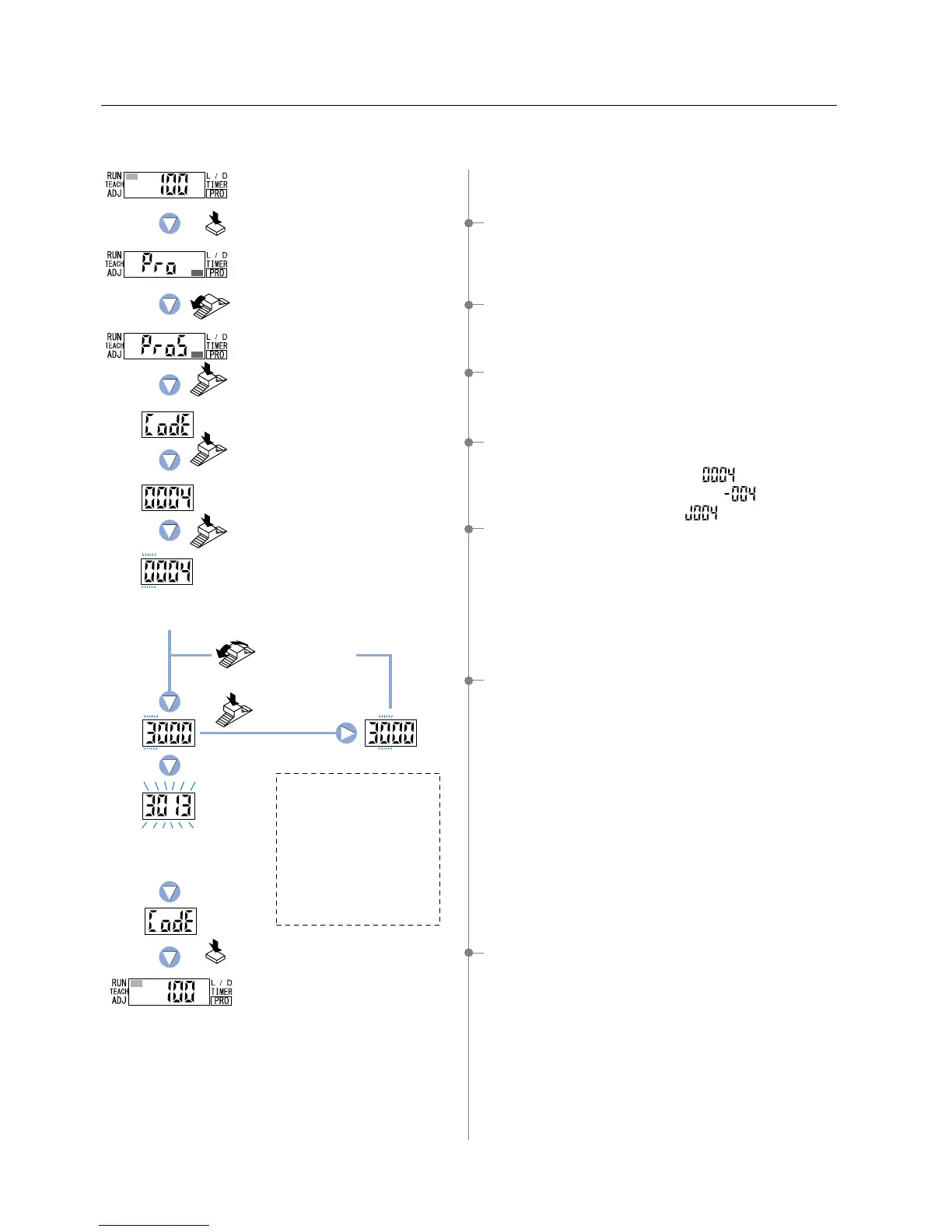

9-2. Code Setting Function
The input of a 4-digit code allows the configuration to be set directly, without the need to set each individual function.
Output 1 only can be set for FX-305(P).
1 Press the [MODE key] 5 times to select ‘PRO mode’.
2 Turn the [Jog switch] 5 times toward the ‘
’ direction , to
select ‘PRO5 mode’.
3 Press the [Jog switch] to enter the ‘code setting’ state.
4 If the [Jog switch] is pressed, the current setting will be
displayed.
* The factory setting is; FX-301(P): ‘ ’
FX-301(P)-HS: ‘ ’
FX-305: ‘ ’
5 Press the [Jog switch] to input the 4-digit of the ‘code’.
Please refer to the ‘Code Setting Table’ on p.49, for
information on inputting codes.
6Repeat the following motions: Turn the [Jog switch] to select
the digits, then press the [Jog switch] to confirm each
selection.
Once 4-digit have been input, the digital display will quickly
blink 3 times, confirming the ‘code’ setting.
7 Press the [MODE key] 3 times or keep it pressed for 2 sec.
or more, the amplifier will to return to ‘RUN mode’ (normal
sensing operation).
51
