Turn the Jog switch to select
output 2.
Press the MODE
key 5 times.
Press the
Jog switch.
Refer to ‘10-2. Output 1
Sensing Mode Settings’
on p.56.
Press the
Jog switch.
Sets the alarm
output shift amount
Turn the Jog switch 6 times
toward the ‘
’ direction.
Press the MODE key
3 times or keep it pressed
for 2 sec. or more.
Press the
Jog switch.
Normal mode Alarm output Error output
Turn the Jog switch to select
the desired sensing mode.
Turn the Jog switch to
select the desired shift amount.
10-3. Output 2 Sensing Mode Settings
Output 2 can be set to one of three sensing modes (normal / alarm output / error output).
The digital display will blink quickly
3 times to confirm the selection.

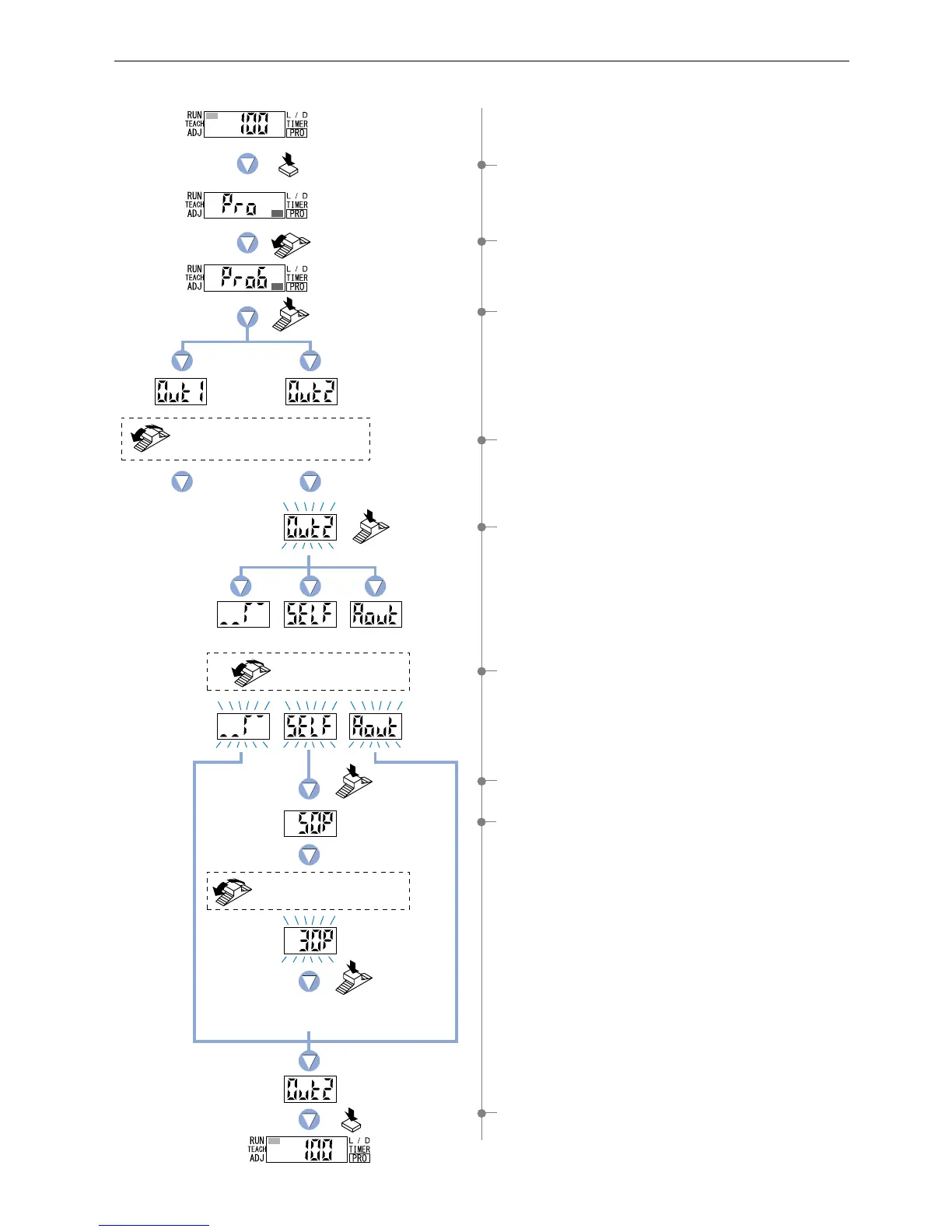

1 Press the [MODE key] 5 times to select ‘PRO mode’.
2
Tur n the [Jog switch] 6 times toward the ‘’ direction, to
select ‘PRO6 mode’.
3 Press the [Jog switch] to enter the ‘output 1 / output 2
selection’ state.
4
Tur n the [Jog switch] to enter the ‘output 2 sensing mode
setting’ state.
7 If the [Jog switch] is pressed, the digital display will blink
quickly 3 times, confirming the ‘sensing mode’.
9 Press the MODE key 3 times or keep it pressed for 2 sec. or
more, the amplifier will return to ‘RUN mode’ (normal sensing
operation).
6
If the [Jog switch] is turned, the digital display will blink.
Select the desired ‘sensing mode’.
5 If the [Jog switch] is pressed, the current sensing mode will
be displayed.
* The factory setting is ‘normal mode’.
8 If ‘Alarm output mode’ is selected, shift amount setting will be
enabled. The level can be set to one of the following eight
levels: 50 %, 30 %, 15 %, 10 %,
10 %, 15 %, 30 %,
50 %.
Press the
Jog switch.
