Panasonic VL-SVN511AZ Installation Guide

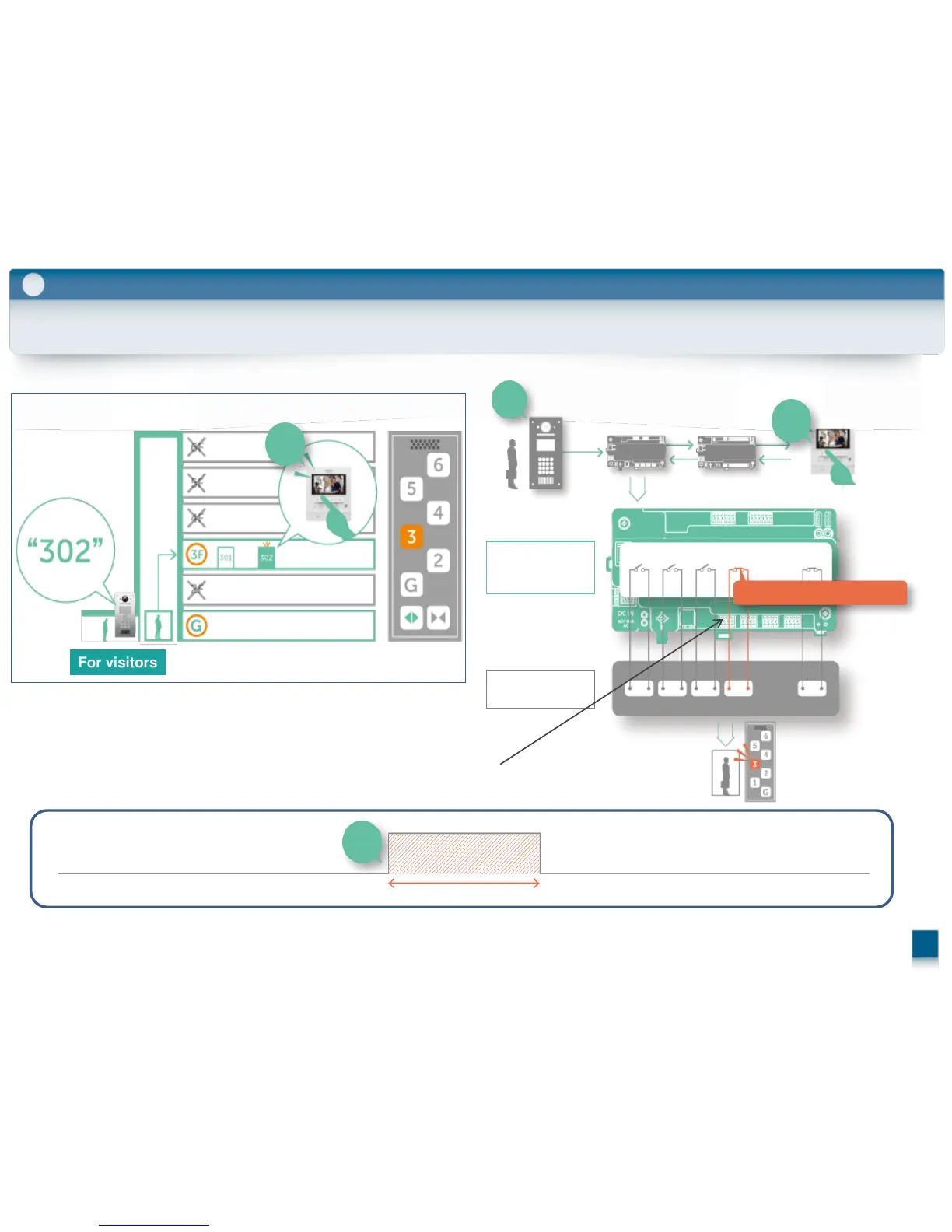

3-9. Lift Controller : VL-V702
For visitors
Normally Open or Close
Active time 1s-900s
3
Wiring
36
“302”
Accept
Door Open
Door Open
Only Relay #4(3F) will be active.
#1
(G)
#2
(1F)
#3
(2F)
#19
(18F)
#20
(19F)
Lift Control
System
Panasonic
Lift Controller
VL-V702
Lift
Control box
VL-V700
Distribution box
VL-V701
#4
(3F)
Accept
Can program the Relay operation(#1-#20)
Accept
* In order for the function to work, settings need to be confirmed in advance with the lift manufacturer.

Panasonic VL-SVN511AZ Specifications

General

Brand	Panasonic
Model	VL-SVN511AZ
Category	Intercom System
Language	English
