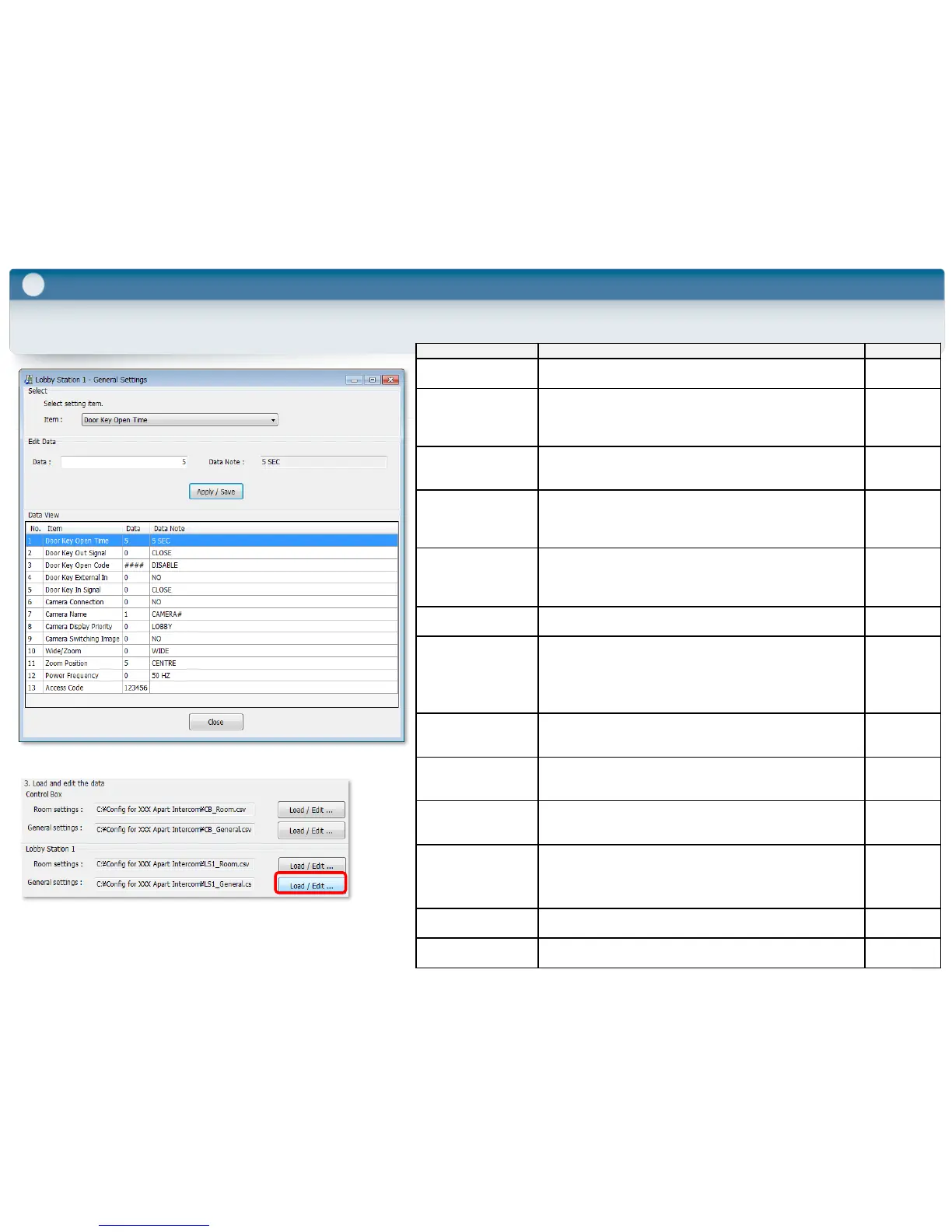

5-7. Lobby Station 1-3 ― General settings
16
Setup Tool
5
Parameter Description Default
Door Key Open Time
Determines the amount of time the door stays open. If
set to 0 s, the door cannot be opened. (0–20 SEC)
5 SEC
Door Key Out Signal
Determines whether the signal sent to the electric lock is a closed
signal (i.e., the signal is normally open) or an open signal (i.e., the
signal is normally closed). [0]: CLOSE, [1]: OPEN
0
(CLOSE)
Door Key Open Code
Determines the door open code. If disabled, the door
cannot be opened using a code. (4 digits, or #### to disable)
####
(DISABLE)
Door Key External In
Tells the system whether an access controller (door
opener, key switch, card reader, etc.) is connected to
the lobby station and used to unlock the door. [0]:NO, [1]:YES
0
(NO)
Door Key In Signal
Determines whether the signal received from the access controller
is a closed signal (i.e., the signal is normally open) or an open
signal (i.e., the signal is normally closed).
[0]: CLOSE, [1]: OPEN
0
(CLOSE)
Camera Connection
Tells the system whether a camera is connected or not.
[0]:NO, [1]:YES
0
(NO)
Camera Name
Determines the camera name.
[1]:CAMERA #, [2]:RECEPTION, [3]:GATE, [4]:CONTROL ROOM,
[5]:RESTAURANT, [6]:HALL, [7]:POOL, [8]:SECURITY OFFICE,
[9]:ENTRANCE, [10]:GYM, [11]:GUEST ROOM, [12]KID’S ROOM,
[13]:PARKING, [14]:TERRACE, [15]:LIFT LOBBY
1
(CAMERA #)
Camera Display Priority
Determines which camera image is displayed when monitoring
begins. [0]:LOBBY, [1]:CAMERA, [2]:CAMERA ONLY
0
(LOBBY)
Camera Switching Image Determines whether the user can switch between the
lobby station camera and the external camera. [0]:NO, [1]:YES
0
(NO)
Wide/Zoom Determines whether camera images are displayed in wide mode or
in zoom mode when monitoring begins. [0]: WIDE , [1]: ZOOM
0
(WIDE)
Zoom Position Determines the camera zoom position.
[1]:UPPER LEFT, [2]:UPPER SIDE, [3]:UPPER RIGHT, [4]:LEFT,
[5]:CENTRE, [6]:RIGHT, [7]:LOWER LEFT, [8]:LOWER SIDE,
[9]: LOWER RIGHT
5
(CENTRE)
Power Frequency Tells the system what frequency of power is supplied to the
system. [0]:50 Hz, [1]:60 Hz
0
(50 Hz)
Access Code Determines the access code that allows you to use lobby stations
to configure the system. (6 digits)
123456
To Next Page
