4-5. Recording by SD-Card （VL-V700）

Note

-- 4–64 GB SDHC/SDXC memory card is supported

If use 4 GB, about 2,000,000 events and 90,000 images are recorded.

-- If analog camera priority is set “high” by Setup-tool, analog camera

image is recorded.

-- If image recorded maximum , after that old ones will be overwritten.

-- If SD memory is full, the system log will be stopped and

alert message will be displayed on the external Monitor.

[SYSTEM LOG]

CALLER__ CALL_REQ RECEIVER START_DATE_TIME____ END_DATE_TIME______ IMAGE_ TALK UNLOCK EV BUSY IMAGE_SAVE_____

-------- -------- -------- ------------------- ------------------- ------ ---- ------ -- ---- ---------------

LOBBY_01 RM_00102 RM_00102 2015/1/1 4:30 2015/1/1 4:30 ------ ---- ------ -- T.O. SAVED(100_0001)

LOBBY_01 RM_00102 RM_00102 2015/1/1 4:30 2015/1/1 4:30 ------ TALK ------ -- ---- SAVED(100_0002)

LOBBY_01 RM_00102 RM_00102 2015/1/1 4:30 2015/1/1 4:31 ------ ---- UNLOCK EV ---- SAVED(100_0003)

LOBBY_01 RM_00402 RM_00402 2015/1/1 4:31 2015/1/1 4:31 ------ TALK ------ -- ---- SAVED(100_0004)

TERMI_01 LOBBY_01 LOBBY_01 2015/1/1 4:31 2015/1/1 4:31 ------ TALK ------ -- ---- ---------------

RM_00402 -------- TERMI_01 2015/1/1 4:31 2015/1/1 4:32 ------ TALK ------ -- ---- ---------------

LOBBY_01 TERMI_01 TERMI_01 2015/1/1 4:32 2015/1/1 4:32 ------ TALK ------ -- ---- SAVED(100_0005)

LOBBY_01 RM_00402 RM_00402 2015/1/1 4:32 2015/1/1 4:33 ------ ---- ------ -- T.O. SAVED(100_0006)

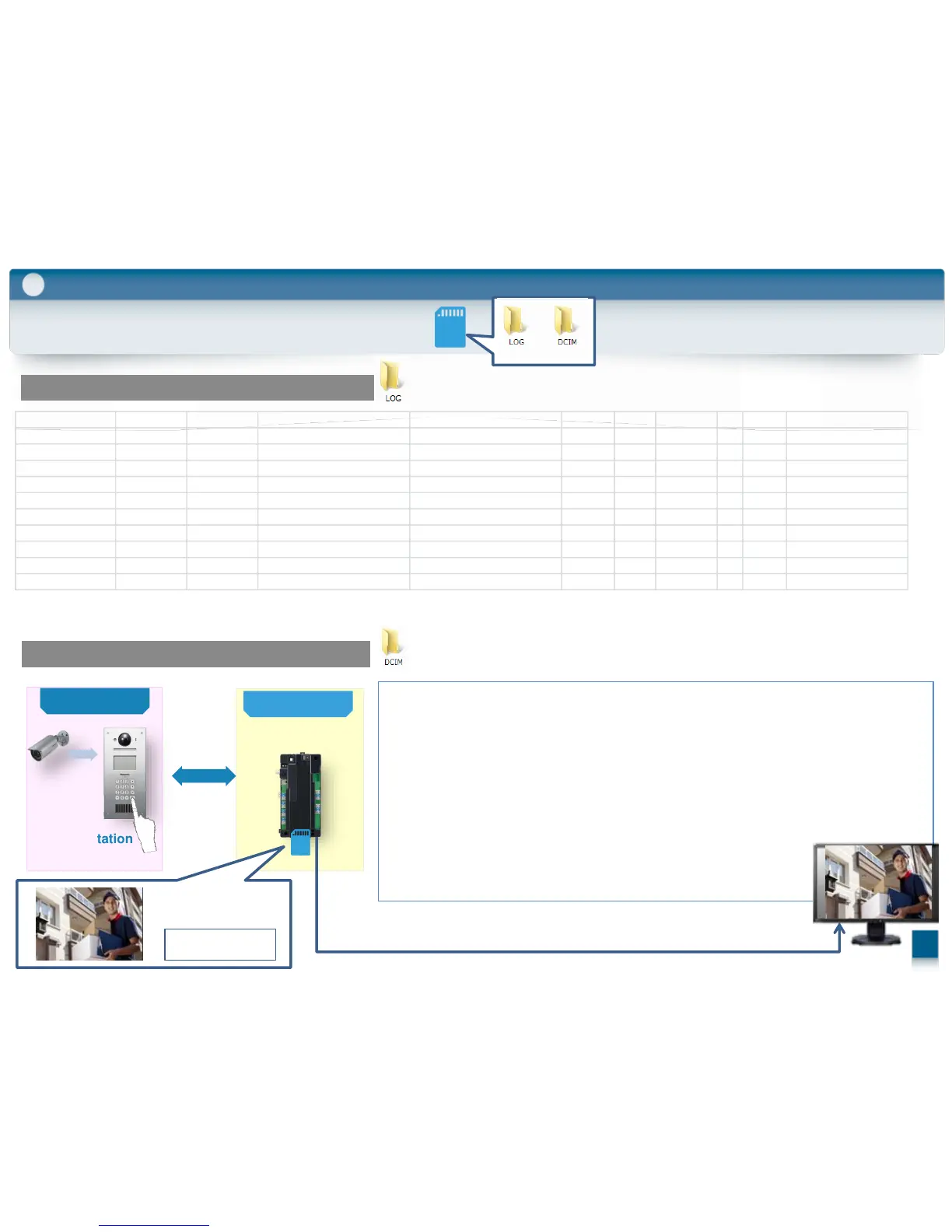

1. System log (more than 90,000 events)

2. Image Recording(maximum 90,000)

LOG_0001.TXT (opened by excel)

Control Box

VL-V700

Lobby Station

VL-V900

Entrance

System


VGA(640 × 480)

1 pictures / 1 session

camera

IMG:999_0100(100%)
