Panasonic VL-SVN511AZ Installation Guide

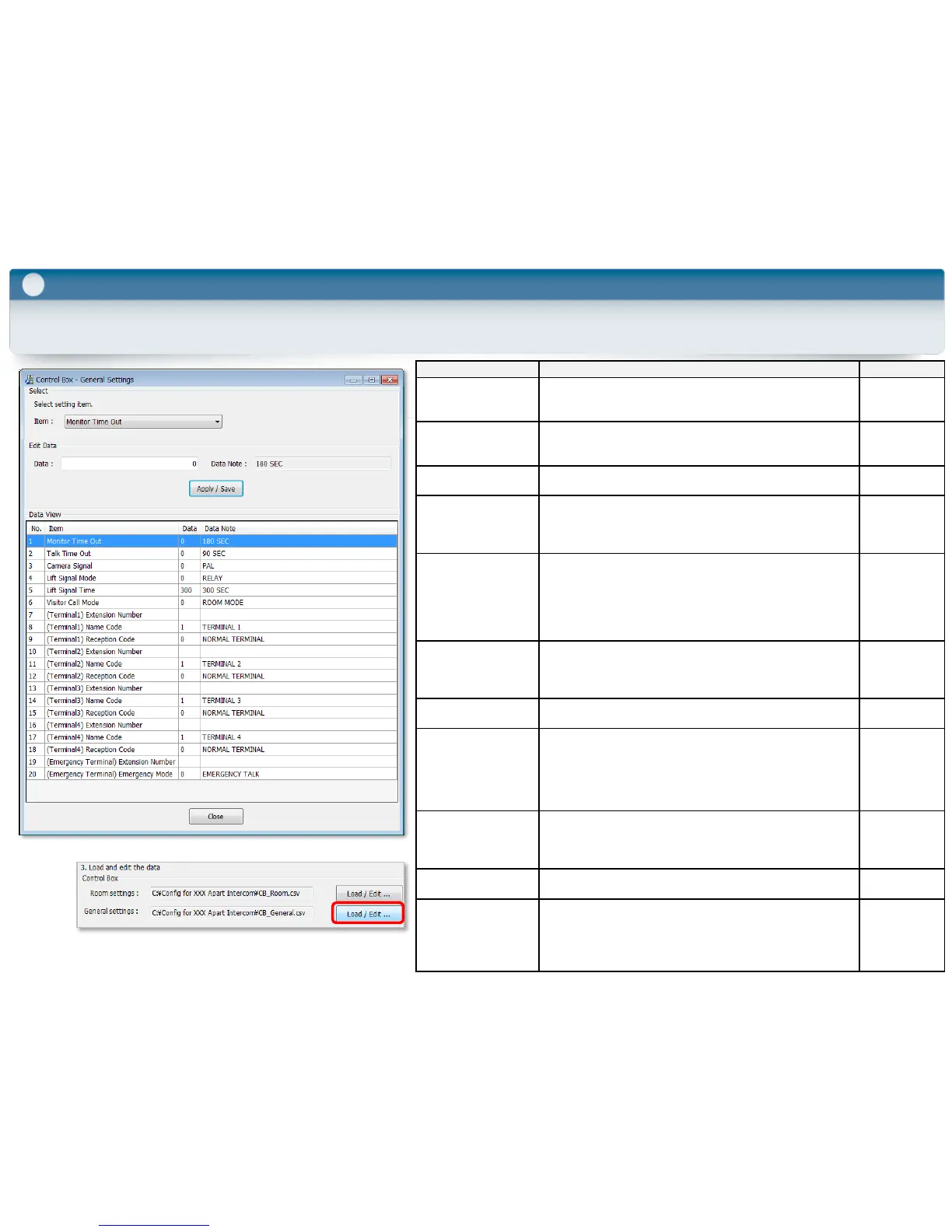

5-5. Control Box – General settings
14
Setup Tool
5
Parameter Description Default
Monitor Time Out
Determines the amount of time that passes when watching
camera images before the standby screen is
displayed.
[0]: 180 SEC, [1]:90 SEC, [2]:60 SEC, [3] :30 SEC
0
(180 SEC)
Talk Time Out
Determines the amount of time that passes when talking before
the standby screen is displayed.
[0]:90 SEC, [1]:60 SEC, [2]:30 SEC, [3]:180 SEC, [4]:300 SEC
0
(90 SEC)
Camera Signal
Tells the system what signal format is used by the
external
camera
. [0]:PAL, [1]:NTSC
0
(PAL)
Lift Signal Mode
Determines the signalling method used by the lift controller to
communicate with the lift. Select the signal type according to the
specifications of the lift.
[0]:Relay, [1]:binary
0
(RELAY)
Lift Signal Time
After a visitor is admitted, this setting determines the amount of
time that the visitor can use the lift to visit the
corresponding
floor.
If the lift has a similar setting, set this parameter to any value
other than "0"; the lift setting will take priority.
(1–900 s, or 0 to disable)
300
(300 SEC)
Visitor Call Mode
Determines if visitors can call rooms directly (room mode), or if
their calls are directed to a reception terminal (reception mode).
[0]:ROOM MODE, [1]:RECEPTION MODE
0
(ROOM MODE)
Terminal 1
–
4 Extension
Number
Tells the system the extension number for terminal 1
– 4.
(24 digits max.)
-
Terminal 1
–4 Name
Code
Determines the name for terminal 1
–4.
[1]:TERMINAL #, [2]:RECEPTION, [3]:GATE, [4]:CONTROL ROOM,
[5]:RESTAURANT, [6]:HALL, [7]:POOL, [8]:SECURITY OFFICE,
[9]:ENTRANCE, [10]:GYM, [11]:GUEST ROOM, [12]:KID’S
ROOM,
[13]:PARKING, [14]:TERRACE, [15]:LIFT LOBBY
1
(TERMINAL #1)
Terminal 1
–
4 Reception
Mode
Determines whether terminal 1
–4 is a reception terminal or a
normal terminal (i.e., cannot be used as a
reception terminal).
[0]:NORMAL TERMINAL, [1]:RECEPTION TERMINAL
0
(NOMAL
TERMINAL)
Emergency Terminal
Extension Number
Tells the system the extension number for the
emergency
terminal.
(24 digits max.)
-
Emergency Terminal
Emergency Mode
Determines whether the emergency terminal can talk
to residents during an emergency call (emergency talk
mode) or if the emergency terminal receives an
announcement only (emergency notice mode).
[0]:EMERGENCY TALK, [1] EMERGENCY NOTICE:
0
(EMERGENCY
TALK)
66
