Adjustment
13.
06

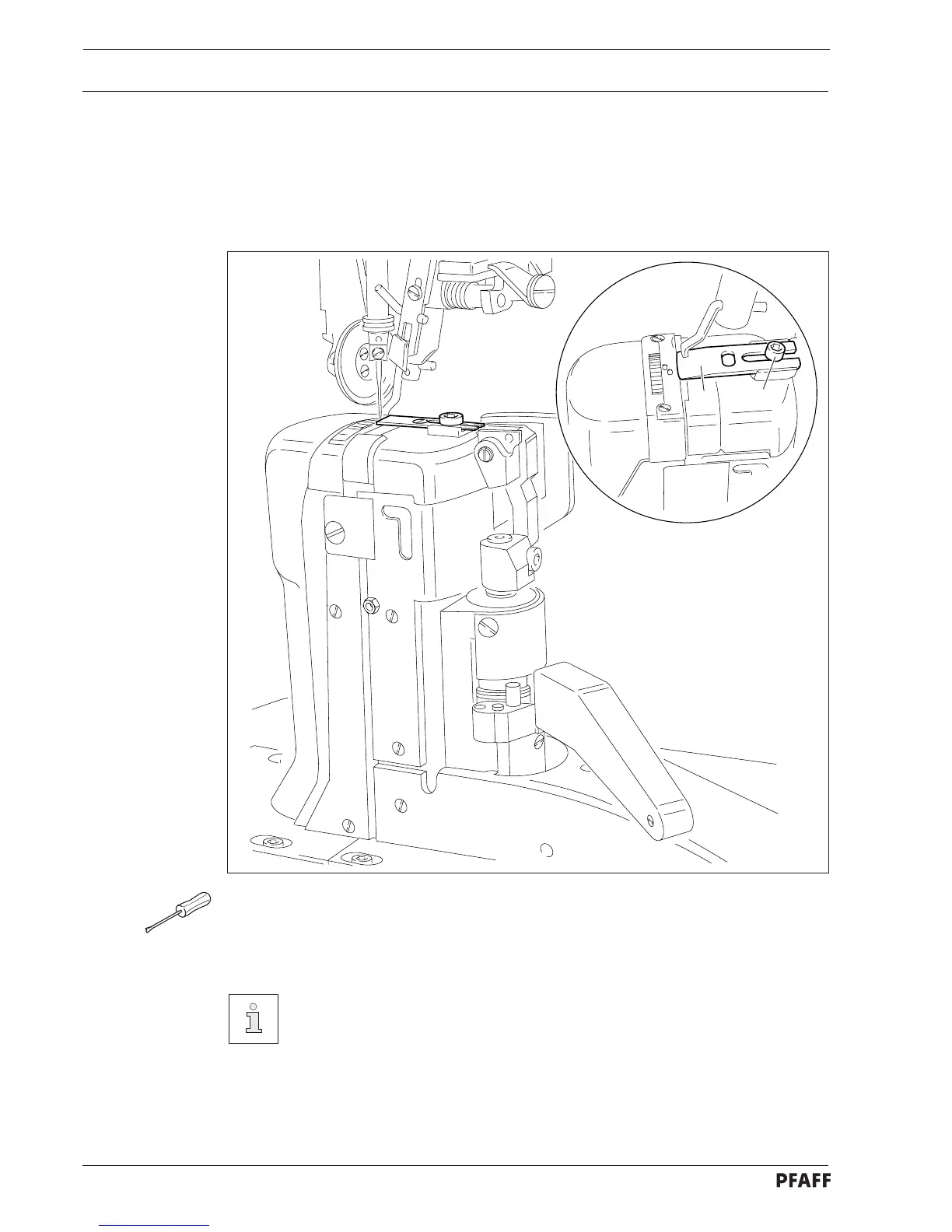

Adjusting the edge trimmer -725/04 for the 1474E1
13.
06.01
Replacing the knife
●
Turn the machine off.
●
Loosen screw
1
and remove knife
2
.
●
Insert a new knife
2
and slide it flush against the needle plate insert.
●
Tighten screw
1
.
Check
chapter 13.06.05 Knife position.
Fig. 13 - 28
2
1
13 - 33
111
113
Table of Contents
Instruction Manual
1
Table of Contents
3
Safety
7
Directives
7
General Notes on Safety
7
Safety Symbols
8
Important Points for the User
8
Operating and Specialist Personnel
9
Operating Personnel
9
Specialist Personnel
9
Danger
10
Proper Use
11
Specifications
12
Pfaff 1471E1, 1474E1
12
Needle and Thread
12
Models and Subclasses
13
Disposal of the Machine
14
Transport Packaging and Storage
15
Transport to the Customer
15
Transport Within the Customer's Premises
15
Disposal of the Packaging
15
Storage
15
Explanation of the Symbols
16
Controls
17
On/Off Switch
17
Keys on the Machine Head
17
Pedal
18
Knee Switch
18
Knee Lever
19
Lever for Lifting the Roller Presser
19
Edge Trimmer -725/04 for the 1471E1
20
Edge Trimmer -725/04 for the 1474E1
20
Control Panel
21
Display
21
Operation-Mode Keys
22
Function Keys
22
Number Keys
22
Mounting and Commissioning the Machine
23
Mounting
23
Adjusting the Table-Top Height
23
Fitting the Tilt Lock
24
Adjusting the V-Belt Tension
24
Mounting the Upper V-Belt Guard
25
Mounting the Lower V-Belt Guard
25
Mounting the Synchronizer
26
Mounting the Spool Holder
26
Commissioning the Machine
27
Turning the Machine On/Off
27
Preparation
28
Inserting the Needle in the 1471E1
28
Inserting the Needle in the 1474E1
29
Winding the Bobbin Thread; Adjusting the Primary Thread Tension
30
Removing/Inserting the Bobbin Case
31
Threading the Bobbin Case/Adjusting the Bobbin Thread Tension
31
Threading the Needle/Adjusting the Needle Thread Tension in the 1471E1
32
Threading the Needle/Adjusting the Needle Thread Tension for the 1474E1
33
Selecting the Stitch Length
34
Selecting the Desired Language
35
Sewing
36
Manual Sewing
36
Sewing with the Fixed Programs
37
Programmed Sewing
39
Decorative Seams
40
Program Interruption
40
Error Messages
41
Programming
42
Symbols in the Status Bar
42
Symbols in the Text and Graphic Fields
43
Symbols in the Pictogram Bar
44
Summary of the Functions in SEWING Mode
45
Summary of the Functions in INPUT Mode
46
Summary of the Functions in Teach in
47
Summary of the Functions in Program Administration
48
Summary of the Functions in the Input Menu
48
Summary of the Service Functions
49
Selection of Functions from Menu Levels
49
Creating Seam Programs
51
Altering Fixed Programs
51
Programming
51
Teach in
54
Bartack Menu
55
Placed-Stitch Menu
57
Seam Section End
58
Programming Examples
59
Example of Seam Programming
59
Example for Programming a Decorative Seam
69
Example of Teach in Programming
72
Care and Maintenance
76
Cleaning
76
Lubricating the Hook
77
Filling the Oil Reservoir
77
Lubricating the Bevel Gears
78
Filling the Oil Reservoir of the Thread Lubricator
79
Cleaning the Air Filter on the Control Box
79
Adjustment
80
Notes on Adjusting
80
Tools, Gauges and Other Adjustment Aids
80
Abbreviations
80
Adjusting the Basic Machine
81
Adjusting the Synchronizer
81
Setting the Machine Configuration
83
Positioning the Needle in the Direction of Sewing (1471E1)
84
Needle Bar Frame Limitation (1471E1 Only)
85
Positioning the Needle in the Direction of Sewing (1474E1)
86
Preadjusting the Needle Height
87
Needle Rise, Hook-To-Needle Clearance, Needle Height and Needle Guard (1471E1)
88
Needle Rise, Hook-To-Needle Clearance, Needle Height and Needle Guard (1474E1)
90
Needle Setting in Transverse Direction to Sewing (1471E1)
92
Needle Setting in Transverse Direction to Sewing (1474E1)
93
Bobbin Case Opener Height
94
Bobbin Case Opener Stroke
95
Feed Wheel Height (1471E1)
96
Feed Wheel Height (1474E1)
97
Clearance between Roller-Presser and Feed Wheel
98
Roller-Presser
99
Holding-Down Clamp (1474E1 Only)
100
Automatic Presser-Foot Lifter
101
Knee Lever
102
Tension Release
103
Thread Check Spring(1471E1)
104
Thread Check Spring(1474E1)
105
Bobbin Winder
106
Roller-Presser Pressure
107
Adjusting the Edge Trimmer -725/04 for the 1471E1
108
Position of the Knife Carrier
108
Knife Stroke
109
Knife Motion
110
Knife Position
111
Adjusting the Edge Trimmer -725/04 for the 1474E1
112
Replacing the Knife
112
Knife Height
113
Knife Stroke
114
Knife Motion
115
Knife Position
116
Adjusting the Thread Trimmer -900/53
117
Removing the Scissor
117
Control Cam with Respect to Bobbin Opener and Tripping Lever
118
Radial Position of the Tripping Lever
119
Engaging Solenoid
120
Scissor Drive Lever
121
Adjusting the Control Cam with the Adjustment Gauge in Relation to the Bobbin Opener and the Scissor
122
Radial Position of the Control Cam in Relation to the Bobbin Opener
123
Tripping Lever of Scissor in Relation to the Control Cam of the Scissor
124
Control Cam in Relation to the Scissor
125
Scissor Return Lever
126
Scissor Return Control
127
Fitting the Scissor
128
Eccentric Sleeve
129
Scissor Driving Rod
130
Scissor Function Test
131
Tension Release (Only on Machines with Thread Tension Control -906/10)
133
Parameter Settings
134
Adjusting Positions
134
Setting the Counter
135
Setting the Speed
135
