Mounting and commissioning the machine
8 - 3

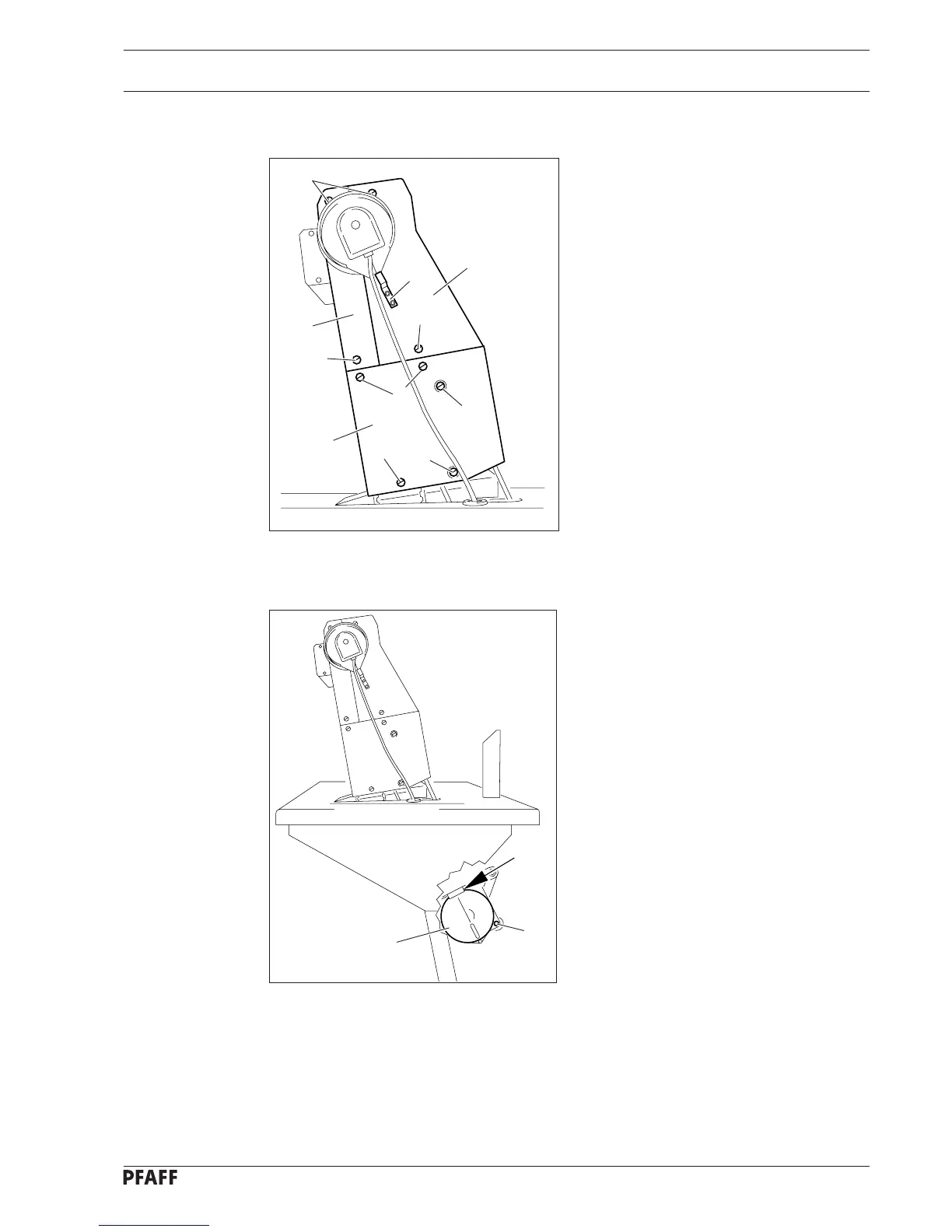

8.01.05 Mounting the lower V-belt guard
Fig. 8 - 05
● Align belt-guard 1 in such a way that
both the motor pulley and the V-belt
run freely.
● Tighten screws 2.
1
2
2
Fig. 8 - 04
1
2
3
4
4
6
6
7
7
5
4
8.01.04 Mounting the upper V-belt guard
● Screw position stop 1 onto the right half
of V-belt guard 2.
● Attach both halves 2 and 3 of the
belt-guard with screws 4.
● Slide the lower section 5 of the V-belt
guard with its slots over the heads of
retaining screws 6. Screw it on with
screws 7. Finally, tighten screws 6
through the holes.
