Adjustment
13.04.04 Needle bar frame limitation ( 1471E1 only )
Requirement
With the stitch length set at „5“, screw 4 must be the same distance to the inner edge of
the mounting hole when the needle is at both the front and rear points of reversal.
● Turn the machine on and set the stitch length at „5“.
● Check the requirement by turning the single start bartack on and then off again.
● For the adjustment, move latch 1 in accordance with the requirement.
● Tighten screw 2 and nut 3.
1
4

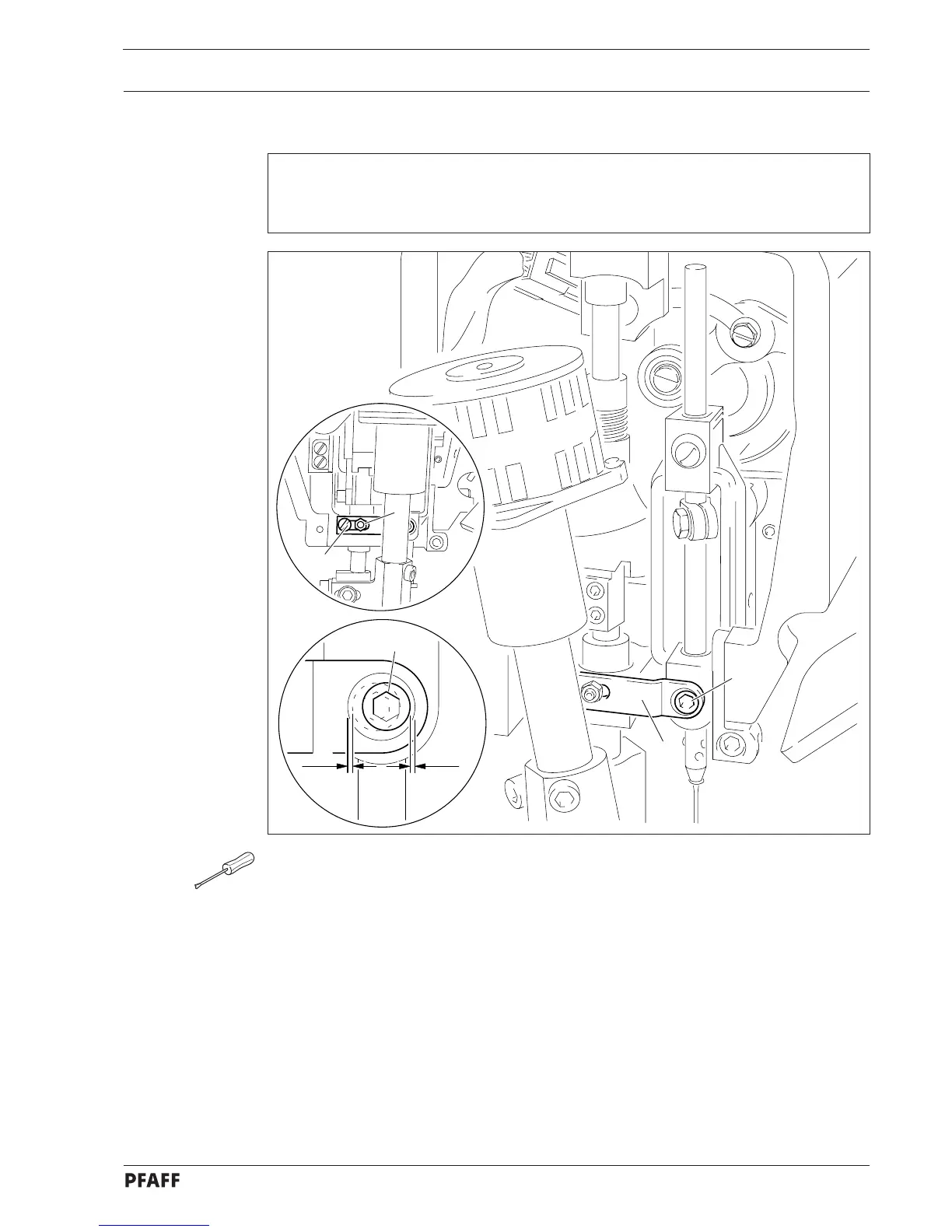

Fig. 13 - 03
=
4
2
3
=
