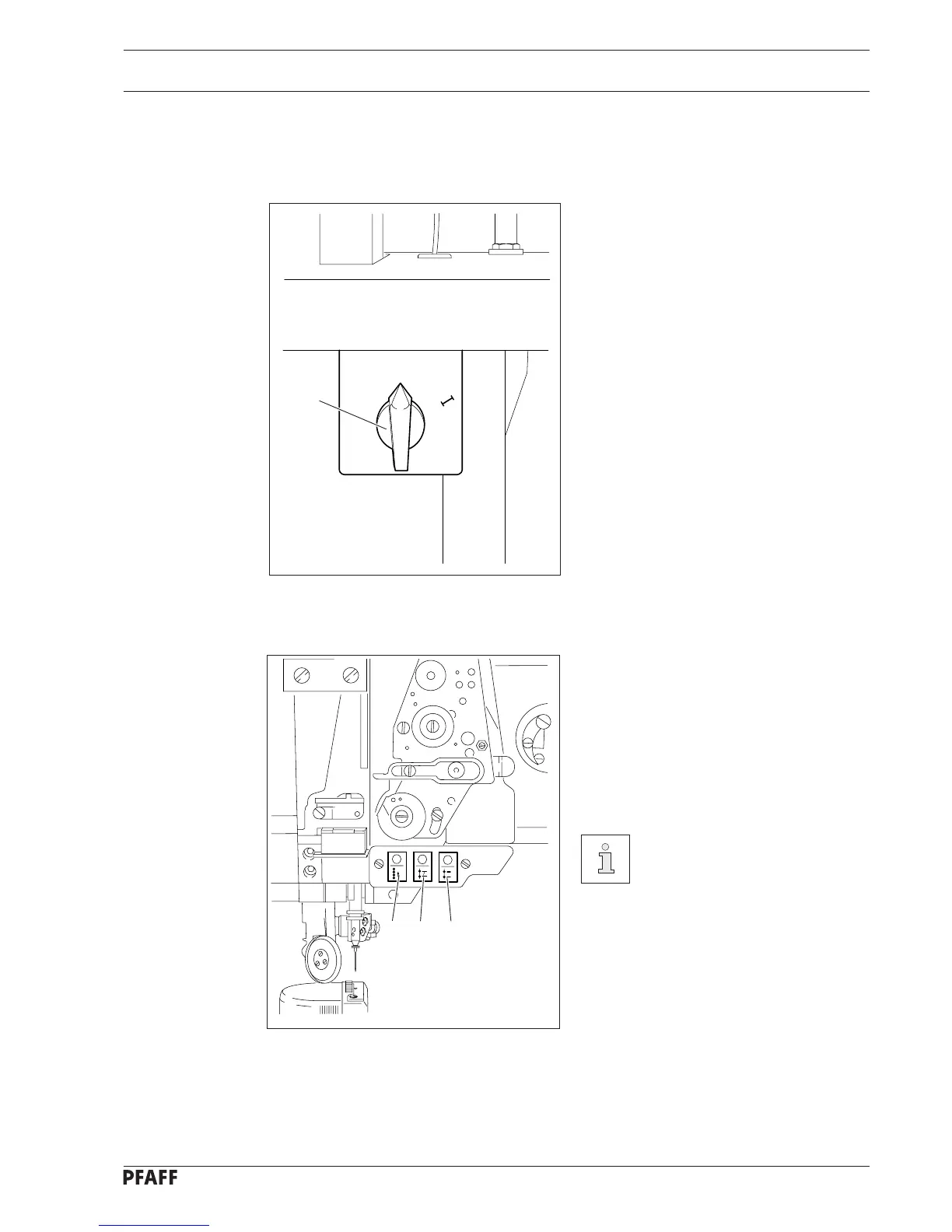

Controls
7 - 1
Fig. 7 - 01
7
Controls
7
.01
On/off switch
●
Turn the machine on/off by turning On/
Off switch
1
.
Fig. 7 - 02
7
.02
Keys on the machine head
●
Different functions are carried out by
pressing the different keys.
Key 1:
reverse sewing
Key 2:
sews one stitch with half-stitch
length.
Key 3:
sews one stitch with full-stitch
length.
1471E1 is shown in
Fig. 7 - 02
0
1
2
1
1
1
2
3
16
18
