Pfaff 1471 E1 User Manual

Adjustment
13.06.02 Knife height
Requirement
With the edge trimmer swung in, the middle of the knife bracket must be at the same
height as the upper edge of the needle plate.

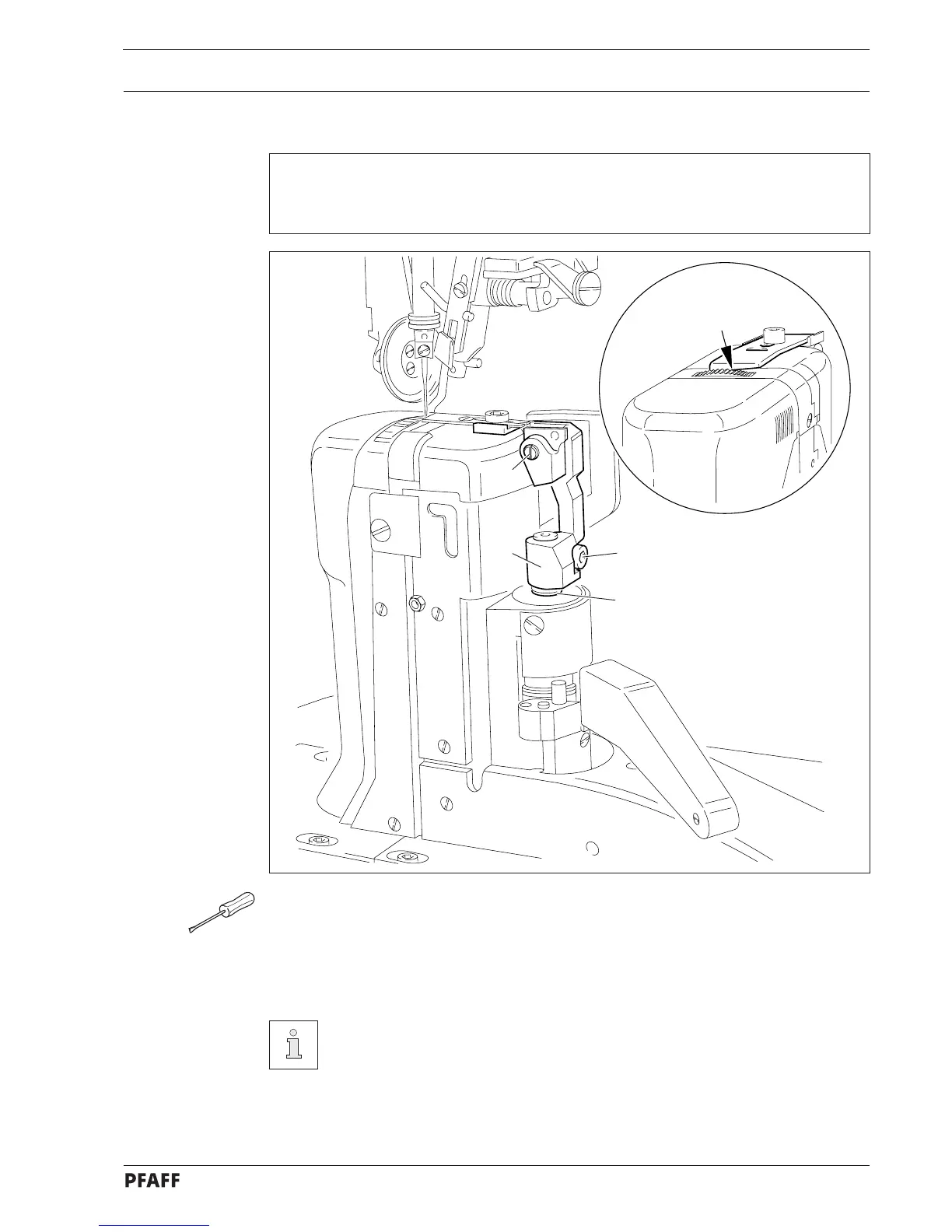

Fig. 13 - 29
● Turn the machine off and swing in the edge trimmer.
● Loosen screw 1.
● Position the knife in the middle of its setting range by turning eccentric 2.
● Move knife carrier 3 in accordance with the requirement and tighten screw 1.
● Bring the circlip 4 to rest against the knife carrier 3.
Depending on the material thickness used, it is possible to deviate from the
basic setting by turning the eccentric 2.
2
3
4
1
13 - 34
