Centering the Needle in the Needle Plate Slot
a. Centering the Needle Throw in the Needle Plate Slot
Set stitch width dial A on "4 " ond put needle position lever B in the central
notch.
Descending
on t he ri gh t and l eft of its throw, the needle must clear both
ends of the needle plate sl ot at the same di stance and must not rub against
the needle plate .
To adjust, turn eccentric stud A
in needle bar frame pi tman (Fig. 107) to the
right or left, as may be require·d to meet th is condition.
b. Adjusting the Needle Throw in Relation to the Center Line
Set stitch width dial A on "0" and needle position lever B at its central
position. Place a piece of cardboard under the need le and turn the balance
wheel until the needle stitches into it lightly. Turn stitch width dial A to "4"
and turn the balance whee l forward , then backward, until the needle, on
t he ri gh t ond l eft or i t ~ throw, :; t i tc he~ into the ca rdb oorc.l ogoin.
Check to see that the right and left punctures are equidistant from the cen-
tral puncture (Fig. 106, bo ttom).
b
-- --~-
',
\
\
\

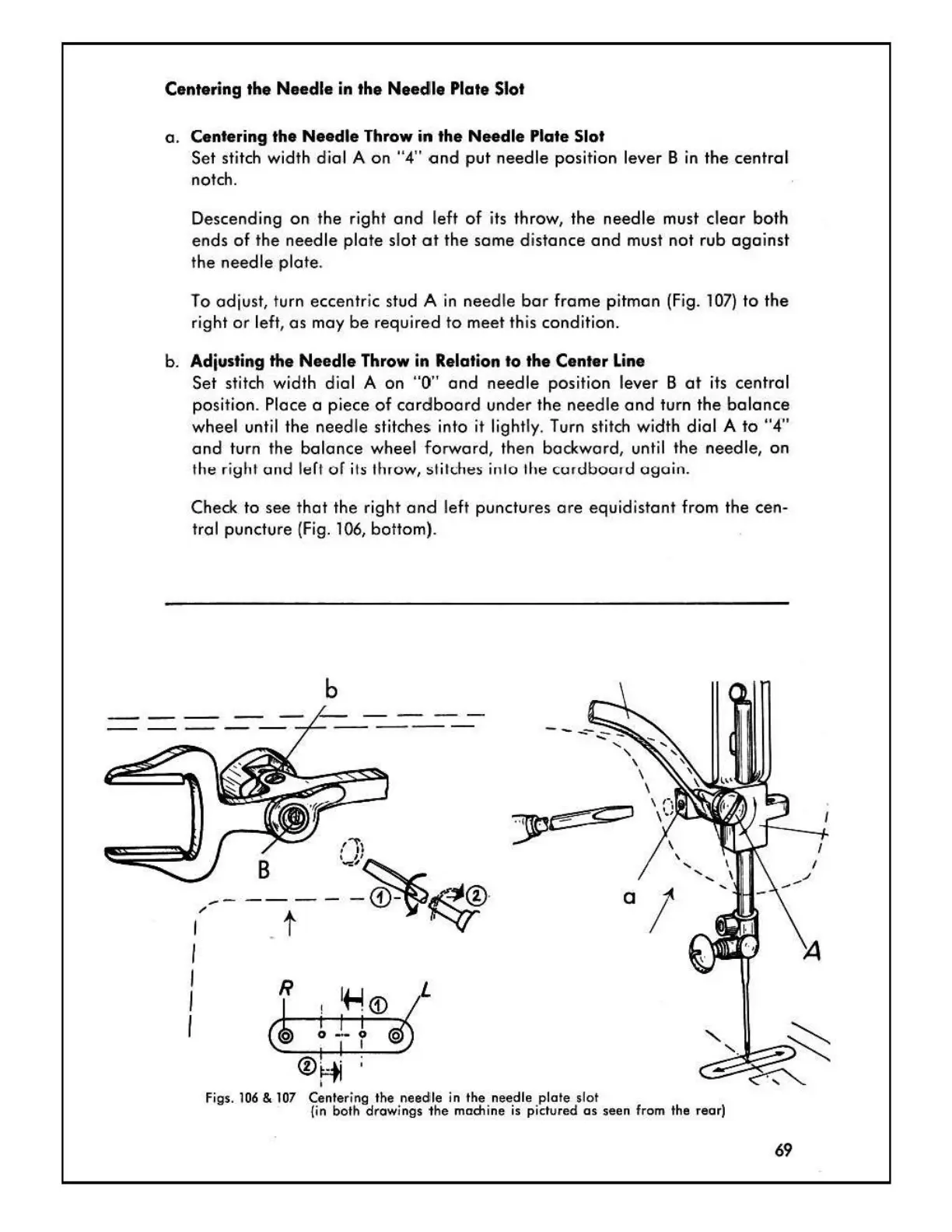

Figs. 106 & 107 Centering the nee dl le in the needle plate slot
(in both d r
aw ings 1he machine is pictured as seen from the rear)
69
