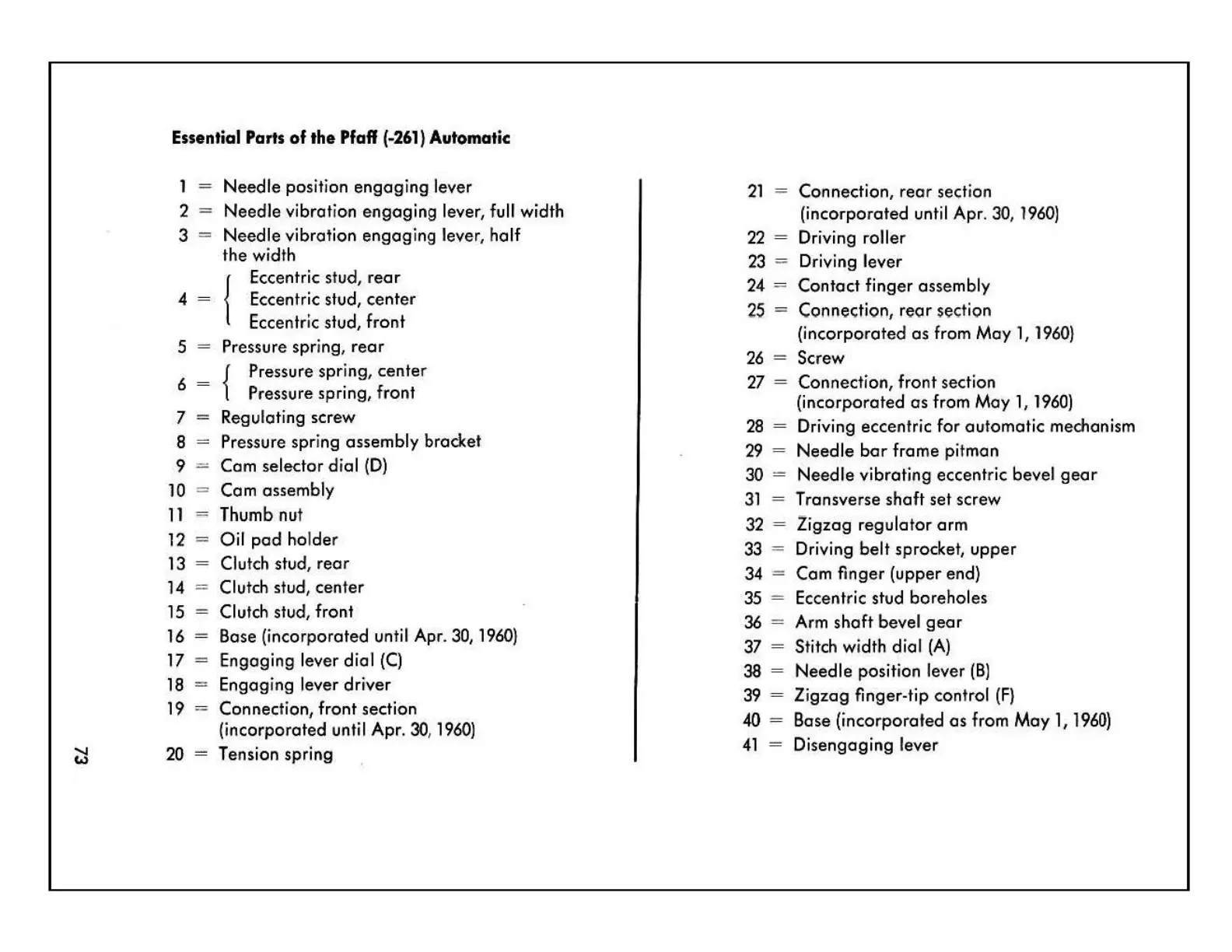

Essential Parts of the Pfaff (-261) Automatic
1 = Needle pos ition engaging lever
21 = Connection, rear section
2
= Needle vibration engaging lever, full width
(incorporated until Apr. 30, 1960)
3 = Needle vibration engaging lever, half
22 = Driving roller
the width
23 = Driving lever
4 = {
Eccentric stud, rear
24 = Contact finger assembly
Eccentric stud, center
25 = Connection, reor section
Eccentric stud,
front
(incorporated as from May 1, 1960}
5 = Pressure spring, rear
26 = Screw
6 = {
Pressure spring, center
27 = Connection, front section
Pressure spring, front
(incorporated as from May 1, 1960}
7 = Regul ating screw
28 = Driving eccentric for automatic mechanism
8
= Pressure spring assembly bracket
29 = Needle bar frame pitman
9
= Com selector dia l ( D)
30 = Needle vibrating eccentric bevel gear
10 = Com assembly
31 = Transverse shaft set screw
11 = Thumb nut
32
= Zigzag regulator arm
12 = Oil pod holder
33 = Driving belt sprocket, upper
13 = Clutch stud, rear
34 = Com finger (upper end}
14
= Clutch stud, center
35 = Eccentric stud boreholes
15 = Clutch stud, front
36
= Arm shaft bevel gear
16 = Bose (incorporated until Ap r. 30, 1960}
37 = Stitch width dial (A}
17 = Engaging lever dio I (C)
38 = Needle position lever (B)
18 = Engaging lever driver
39
= Zigzag finger-tip control (F)
19 = Connection, front section
40 = Base {incorporated as from May 1, 1960)
(incorporated until Apr. 30, 1960}
41 = Disengaging lever
(j
20 = Ten sian spring
