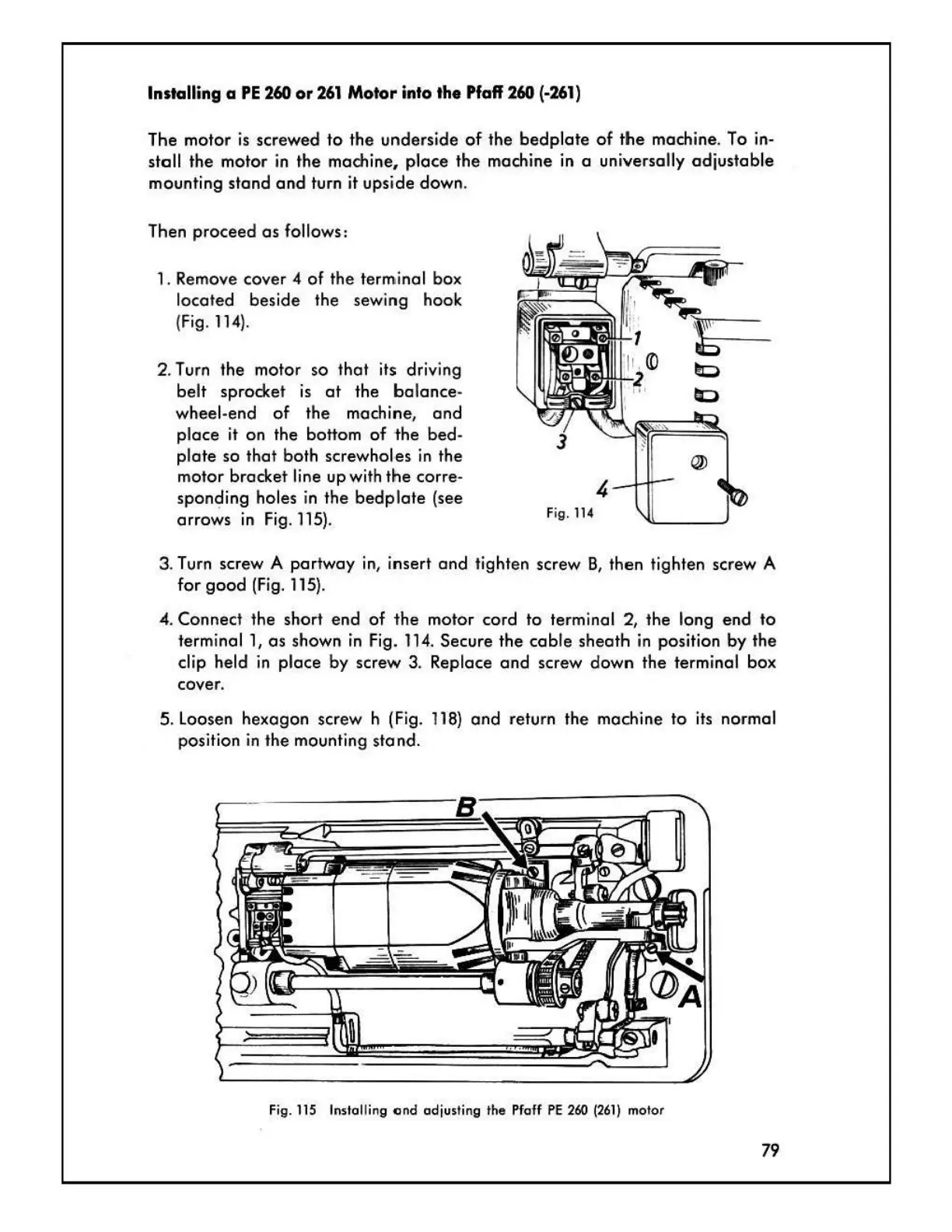

Installing a PE 260 or 261 Motor into the Pfaff 260 (-261)
The motor is screwed to the underside of the bed plate of the machine. To in-
stall
the motor in the machine, place the machine in a universally adjustable
mounting stand and turn it upside down .
Then
proceed as follows:
1. Remove cover 4 of the terminal box
located beside the sewing hook
(Fig.
114).
2. Turn the motor so that its driving
belt sprocket is at the balance -
wheel-end of the machine, and
place it on the bottom of the bed -
plate so that both screwhol· es in the
motor bracket line up with tine corre-
sponding holes in the bedplate (see
arrows
in Fig. 115) .
Fig. 114
3. Turn screw A partway in, insert and tighten screw B, then tighten screw A
for good (Fig. 115).
4. Connect the short end of the motor cord to terminal 2, the long end to
terminal 1, as shown in Fig. 114. Secure the cable sheath in position by the
clip held in place by screw 3. Replace and screw down the terminal box
cover.
5.
loosen hexagon screw h (Fig. 118) and return the machine to its normal
position in the mounting stand.
Fig. 115 Installing ond adjusting the Pfaff PE 260 (261) motor
