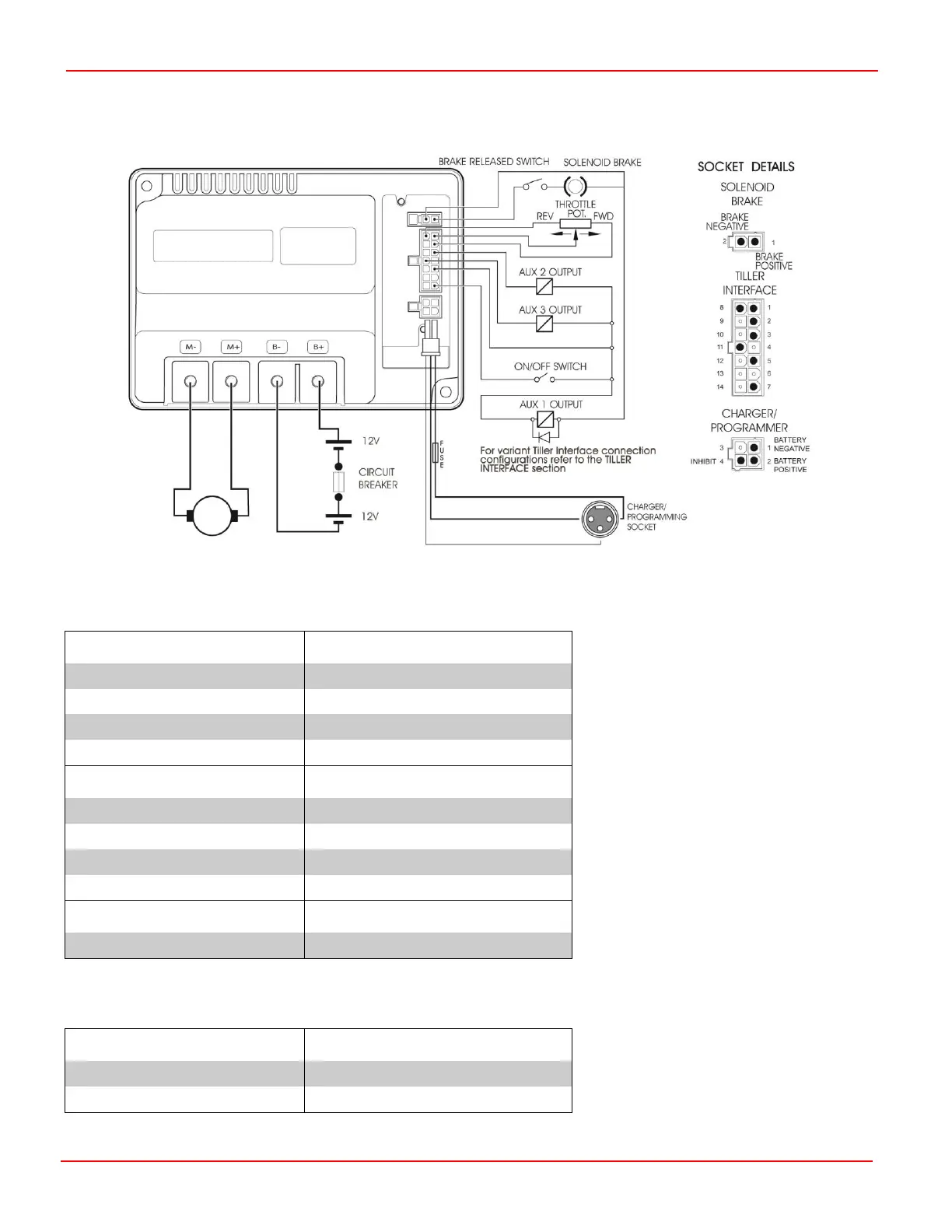

3.1.3 Wiring Configuration S200A
3.2 Connectors & Connector Kits
Motor Connections
Description
S45A & S70A
¼” 6.35mm Faston
S90A
6.3mm RT ANG Faston
S120A & S140A
D51059 - PGDT Connector Kit
S200A
M6 Screw Terminals
Battery Connections
Description
S45A & S70A
¼” 6.35mm Faston
S90A
6.3mm RT ANG Faston
S120A & S140A
D51070 - PGDT Connector Kit
S200A
M6 Screw Terminals
Molex Connections
Description
S45A – S200A
D50319 - PGDT Connector Kit
The PGDT Connector kits can be purchased from PG Drives Technology, in the cases of D51059 and D51070 they can also be
purchased from Inconnect.
PGDT Reference
Inconnect Kit Reference
D51059
IPG-10206-PS
D51070
IPG-10205-PS
