PG Drives Technology S70A User Manual

S-DRIVE - TILLER MODULE PG DRIVES TECHNOLOGY
SK76745/10
72
1 Introduction
Study Chapters 1 & 2, they describe the intended functionality of the Tiller Module and the details for connection to the S-Drive
Controller.
The S-Drive Status Output Type parameter will require adjustment before the TruCharge indicator
will work correctly. The parameter must be set to TruCharge. Refer to Chapter 2 section 4.5.
There are two variants of the Tiller Module. These are:
 Surface mount variant.
 Inset variant.
1.1 Surface Variant

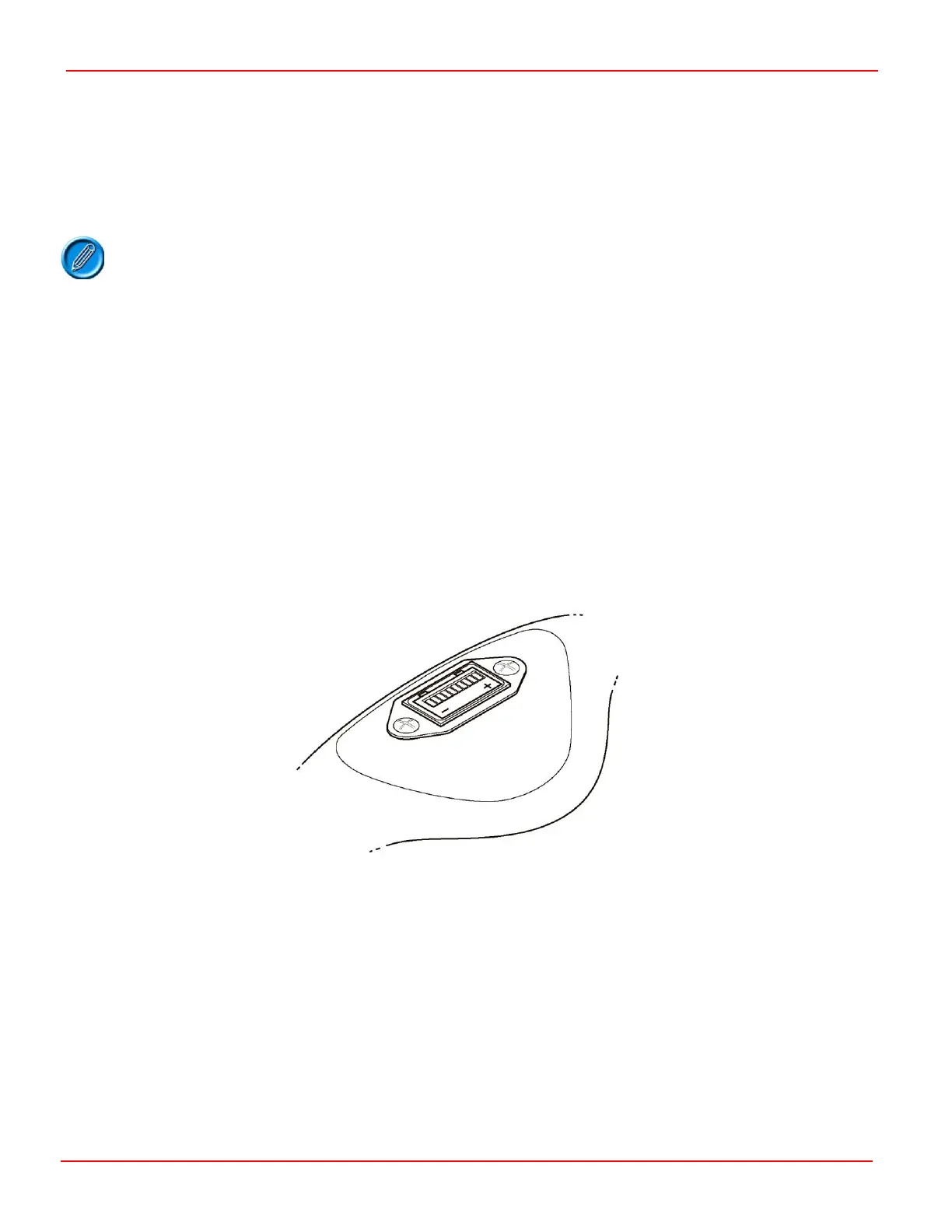

The Surface Mount variant attaches to the tiller module from the outside (See the following illustration). The electronics
compartment of the Tiller Module has an IPX5 ingress protection rating.
 Surface mount variants – D50826 (24V-48V operation)
D50826 consists of: 1 TruCharge Display Module, 1 TruCharge Display Cable, and 1 Gasket
