S-DRIVE - TILLER MODULE PG DRIVES TECHNOLOGY
SK76745/10
5.0.2 Insert Variant
5.1 Controller Connections
TruCharge Module Connector
5.2 ESD Connection
5.2.1 Surface Mount Variant
This is an optional connection and may not be required, refer to section 6.2 for details.
If the connection is required then connection point 4 in the Molex ‘Mini-fit jr’ 4 way connector must be utilized

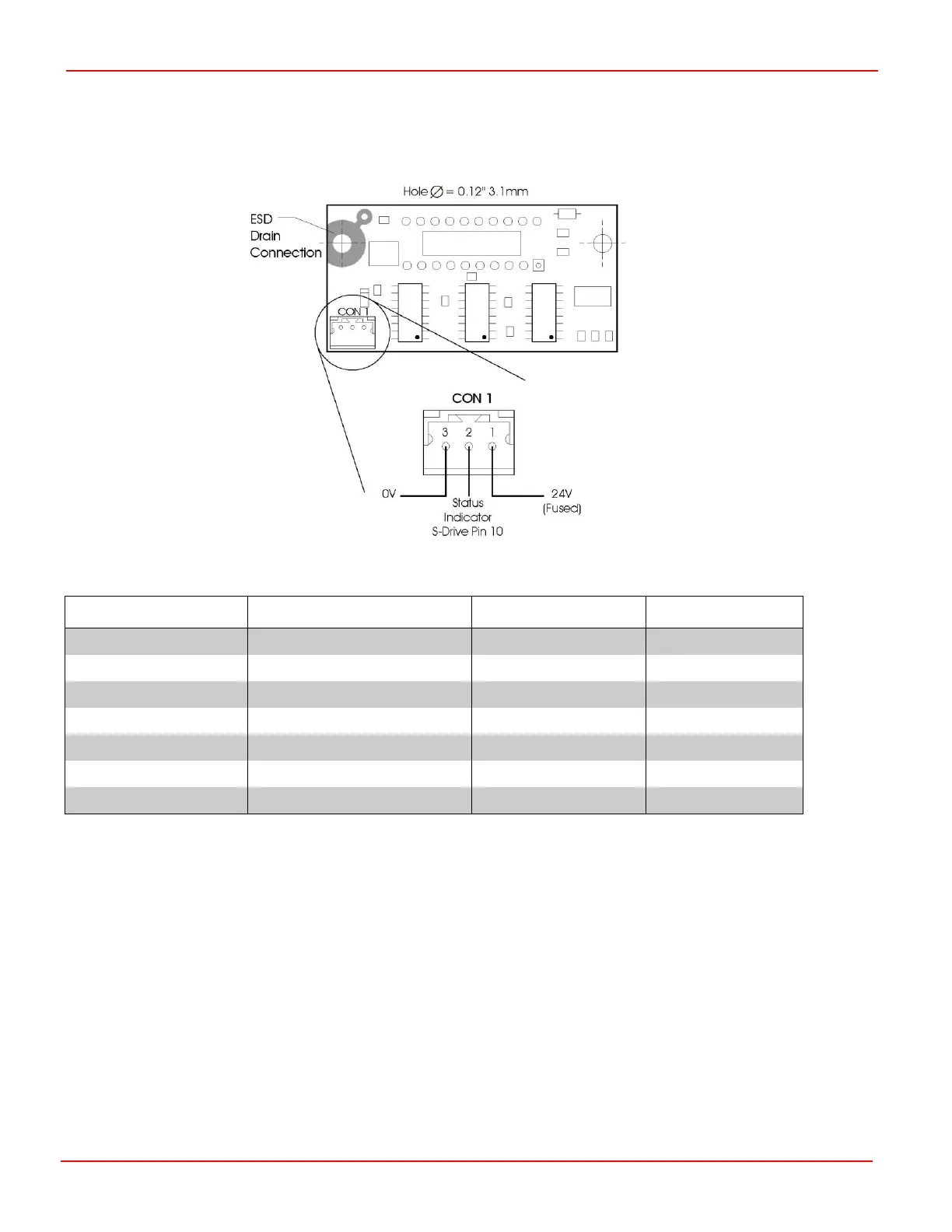

5.2.2 Inset Mount Variant
This is an optional connection and may not be required, refer to section 6.2 for details.
If the connection is required there are two methods available. Firstly, a solder hole for wires or electrical suppression components.
Secondly, if screws are used to secure the Tiller Module, then a ring terminal can be used.
