S-DRIVE - TILLER MODULE PG DRIVES TECHNOLOGY
SK76745/10
74
2.2 Inset Variant

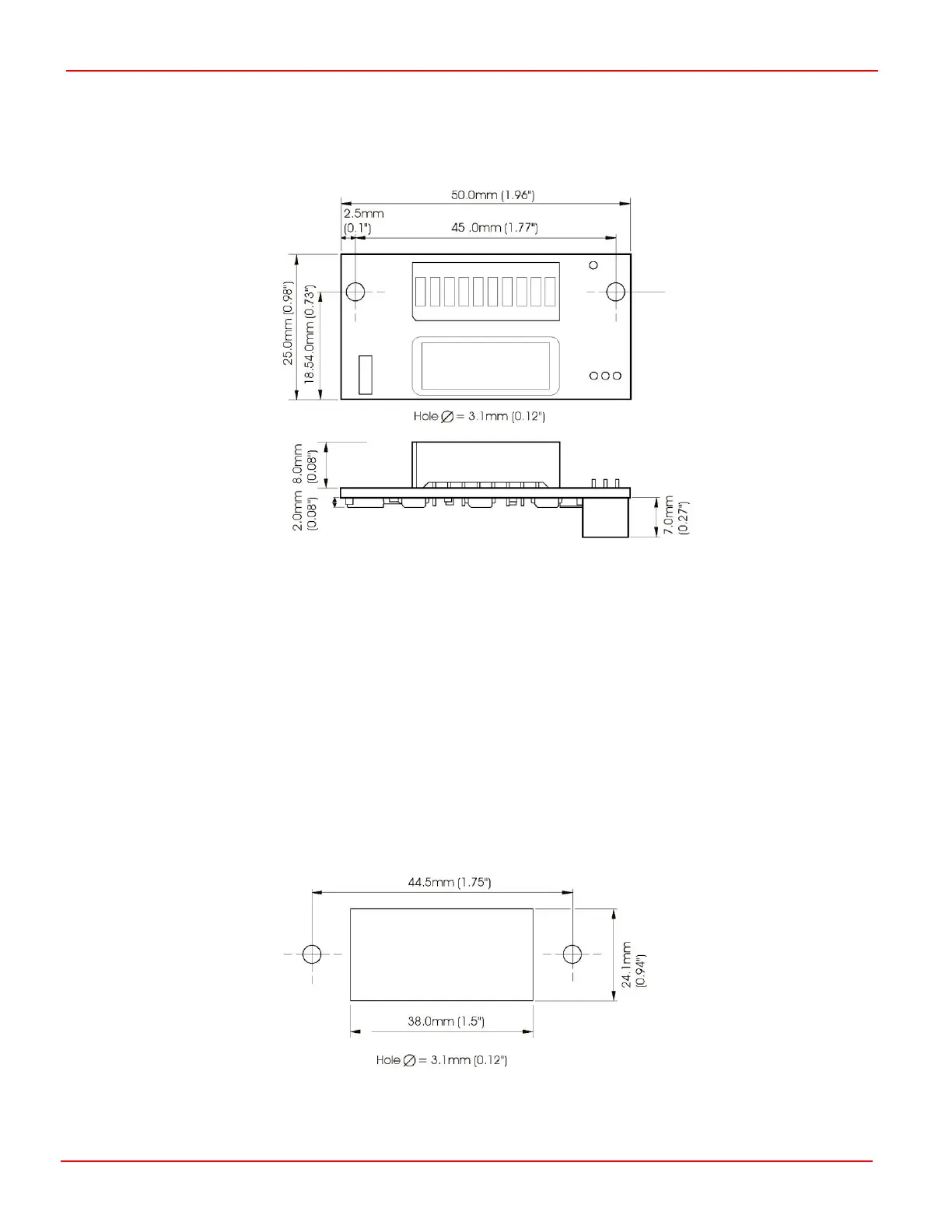

The Inset Tiller Module has the dimensions shown in the following illustration.
3 Mounting
3.1 Handling
The Tiller Module contains electronic components which may be sensitive to static electricity. Always store the modules in the
original packaging until they are ready to be used. When the modules are removed from the packaging, ensure correct anti-
static precautions are taken.
3.2 Surface Variant
3.2.1 Fixing
The scooter’s Tiller should be fitted with holes as suggested in the diagram below.
