PG DRIVES TECHNOLOGY S-DRIVE - INSTALLATION
SK76745/10
Inconnect’s details are as follows.
Inconnect UK Avertronics INC (Taiwan)
+44 (0) 845 25 70 666 +886 (0)4 2358 1581
www.inconnect.uk.net www.inteam.ws
3.2.1 Motor and Battery
3.2.1.1 S45A, S70A & S90A
The battery and motor connections on the S45A, S70A and S90A controllers use 1/4” 6.35mm Faston type terminals. The mating
male parts should be sourced from a reputable manufacturer or supplier and these parts must be tested for suitability by the
scooter manufacturer.
It is the responsibility of the scooter manufacturer to ensure that the mating male Fastons are
suitable for use on the intended application. All connectors should be fitted with the appropriate
boot. PGDT accepts no liability for losses of any kind arising from failure to comply with this
condition.
3.2.1.2 S120A & S140A
The Motor and Battery connections on the S120 and 140A controllers use Inconnect Connectors as listed in section 3.2.
3.2.1.3 S200A
The battery and motor connections on the S200 controllers use M6 threaded holes. These are identified as B+, B-, M+ and M-.

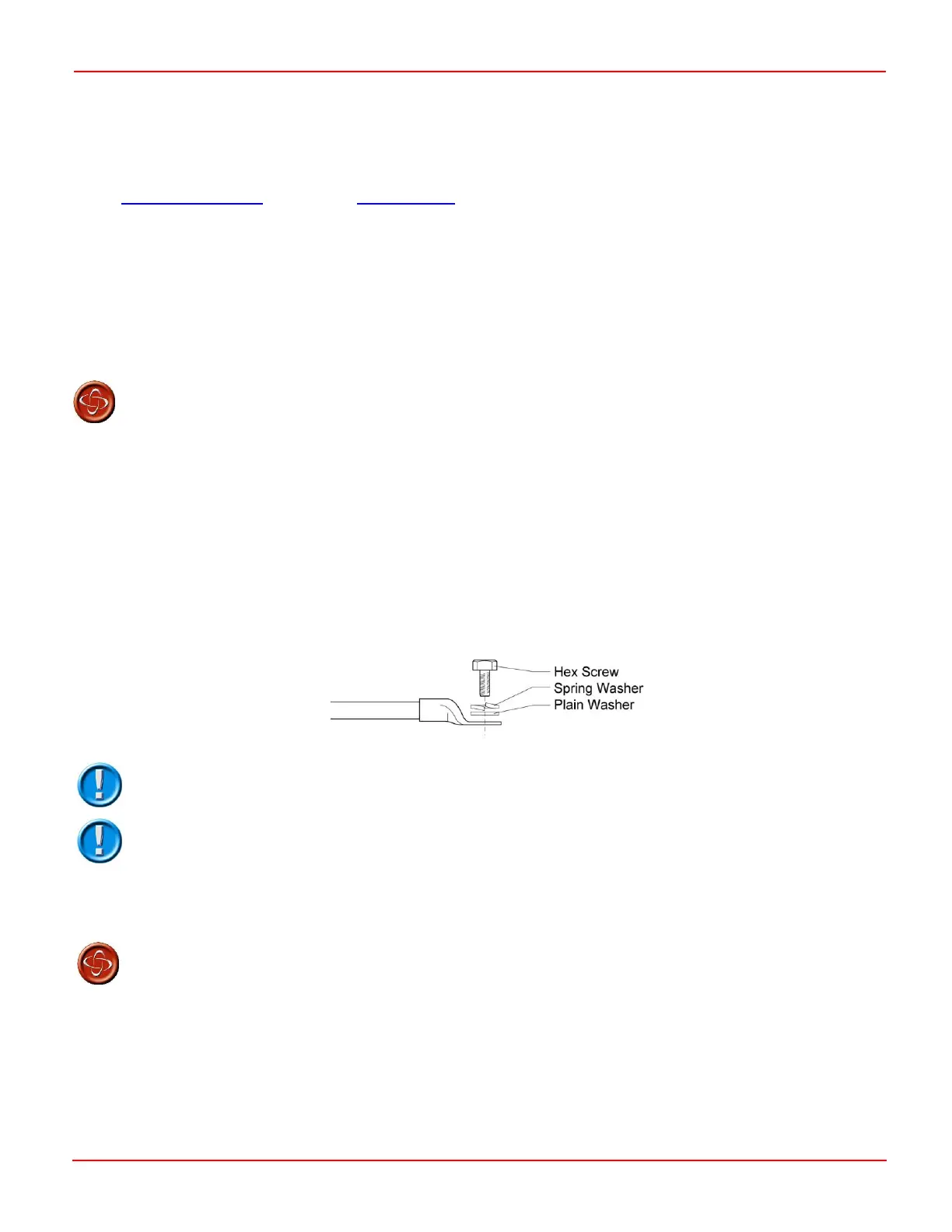

The controller is provided with suitable screws, spring washers and flat washers for fastening the battery and motor cables. PGDT
recommends the arrangement of screw, spring washer and flat washer as shown below.
Screws should not be tightened too more than 5.5Nm.
If alternate screws or bolts are used, it is essential that the thread insertion depth is less than
14mm. Damage to the controller may occur if this depth is exceeded.
When crimping the S200 high current connections, the use of AMP®, AMPower III™ or Solistrand™ copper tube terminals is
recommended.
It is the responsibility of the scooter manufacturer to ensure that the high current crimp
connections are suitable for use on the intended application. PGDT accepts no liability for losses
of any kind arising from failure to comply with this condition.
3.2.2 Brake Connector
The brake connector fitted to the S-Drive is a Molex ‘Mini-Fit Jr’ part.
The mating connector part number is as follows:
