PG Drives Technology S70A User Manual

S-DRIVE - TILLER MODULE PG DRIVES TECHNOLOGY
SK76745/10
76

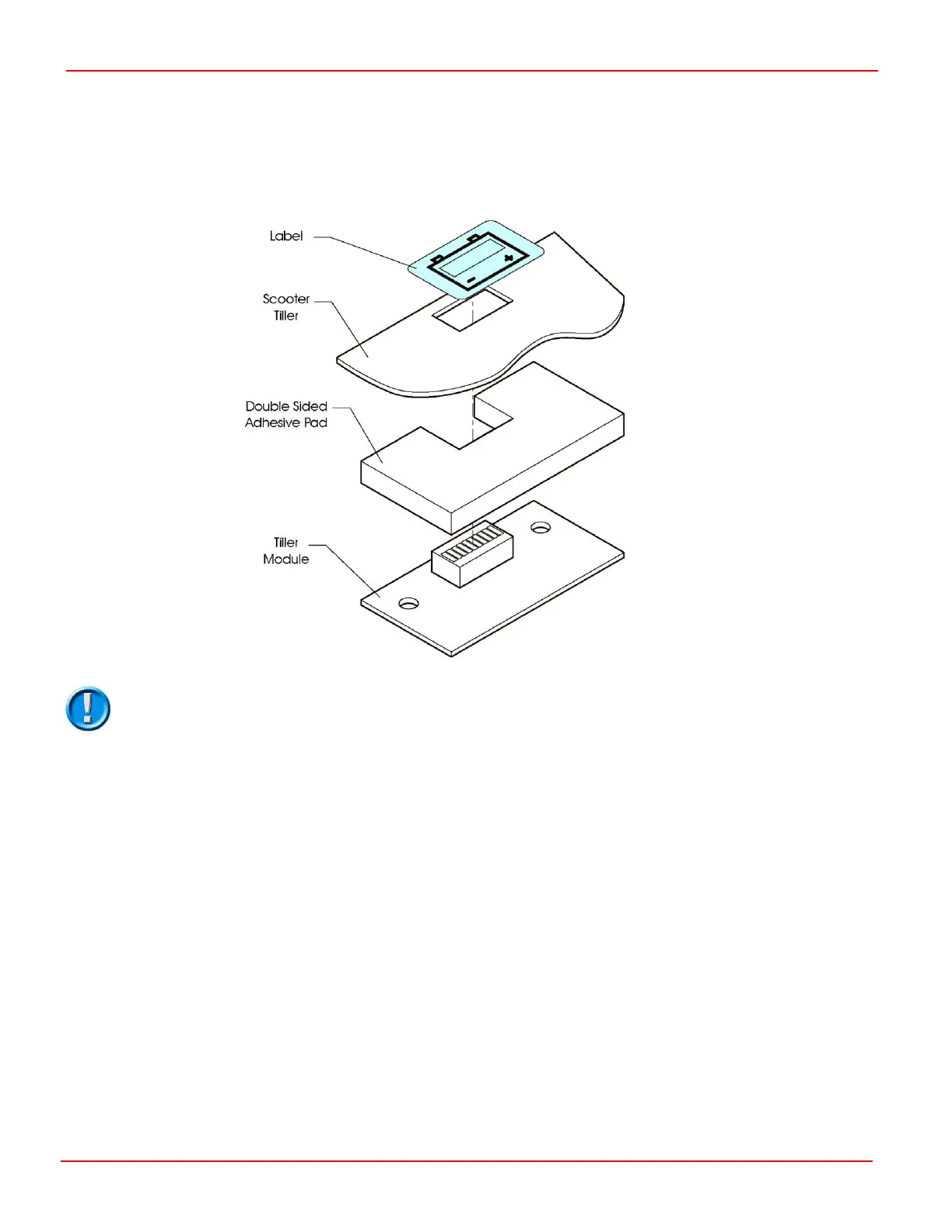

3.3.2 Sealing
The module should be sealed against the ingress of water and dust by a placing an adhesive waterproof overlay over the display
cut-out. The overlay should contain a suitably sized transparent window and the overall dimensions should be at least 36.0mm x
20.5mm (1.41" x 0.81")
The sealing label is only supplied with the Tiller Module kit number D50066.
4 Wiring
You are responsible for establishing the suitability of the particular wiring arrangement used on the scooter. PG Drives Technology
can make general recommendations for wiring to Tiller Modules, but PG Drives Technology accepts no responsibility for the wiring
arrangement used.
4.1 Wire Gauge
The minimum recommended wire size is 0.22mm
2
for all connections.
4.2 Connectors
4.2.1 Surface Mount Variant
The Tiller Module is fitted with a Molex ‘Mini-fit jr’ 4 way connector.
See www.molex.com for your local distributor.
Part Numbers are as follows:
Molex ‘Mini-Fit-Jr.’ 4 socket receptacle: 39-01-2040
