It is possible to connect the switch to 24V or 0V.
Inhibit 3 is programmed primarily to detect the presence of an external battery charger connected through the tiller and
therefore prevent the scooter from being driven whilst connected to the mains.
See the example in section 4.12.3
Inhibit 3 input has 3 programmable parameters.
 Inhibit 3 Mode
 Inhibit 3 Speed
 Inhibit 3 Operation
4.12.1 Inhibit 3 Mode

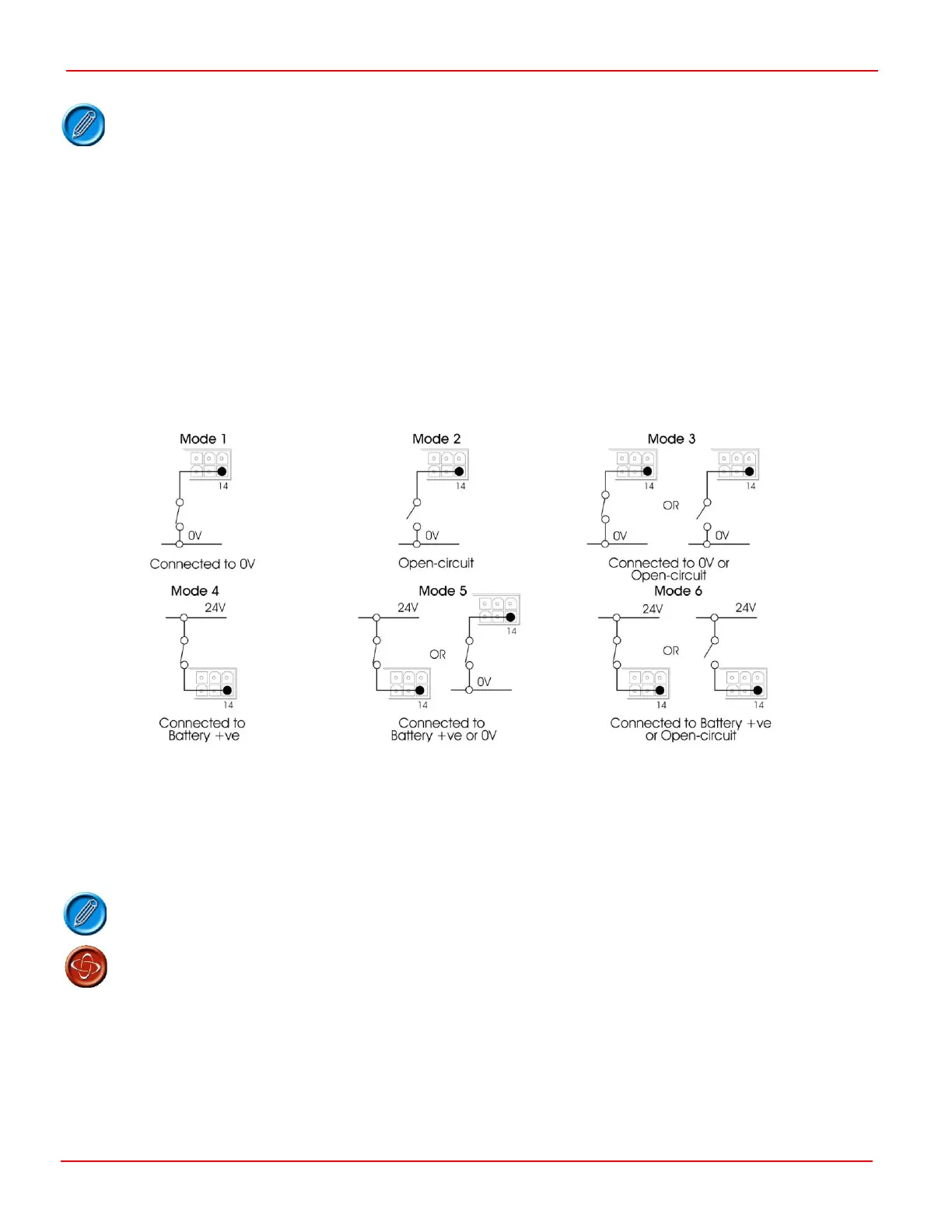

The Mode parameter refers to the state in which the inhibit is active.
4.12.2 Inhibit 3 Speed
This parameter sets the maximum speed of the scooter when the Inhibit 3 input is active. The parameter is adjustable between 0
and 100% in steps of 1%.
When Inhibit Speed = 0 this acts as an inhibit. At this time the controller will refer to the Inhibit
Operation parameter to establish what type of inhibit will be created.
If the Inhibit Speed is greater than 0 then the controller will not enter an inhibit state.
4.12.3 Inhibit 3 Operation
This parameter is only effective if the Inhibit 3 Speed parameter has been set to 0.
The parameter can be set to one of two states:
