PG DRIVES TECHNOLOGY S-DRIVE – TILLER MODULE
SK76745/10
73
1.2 Inset Variant

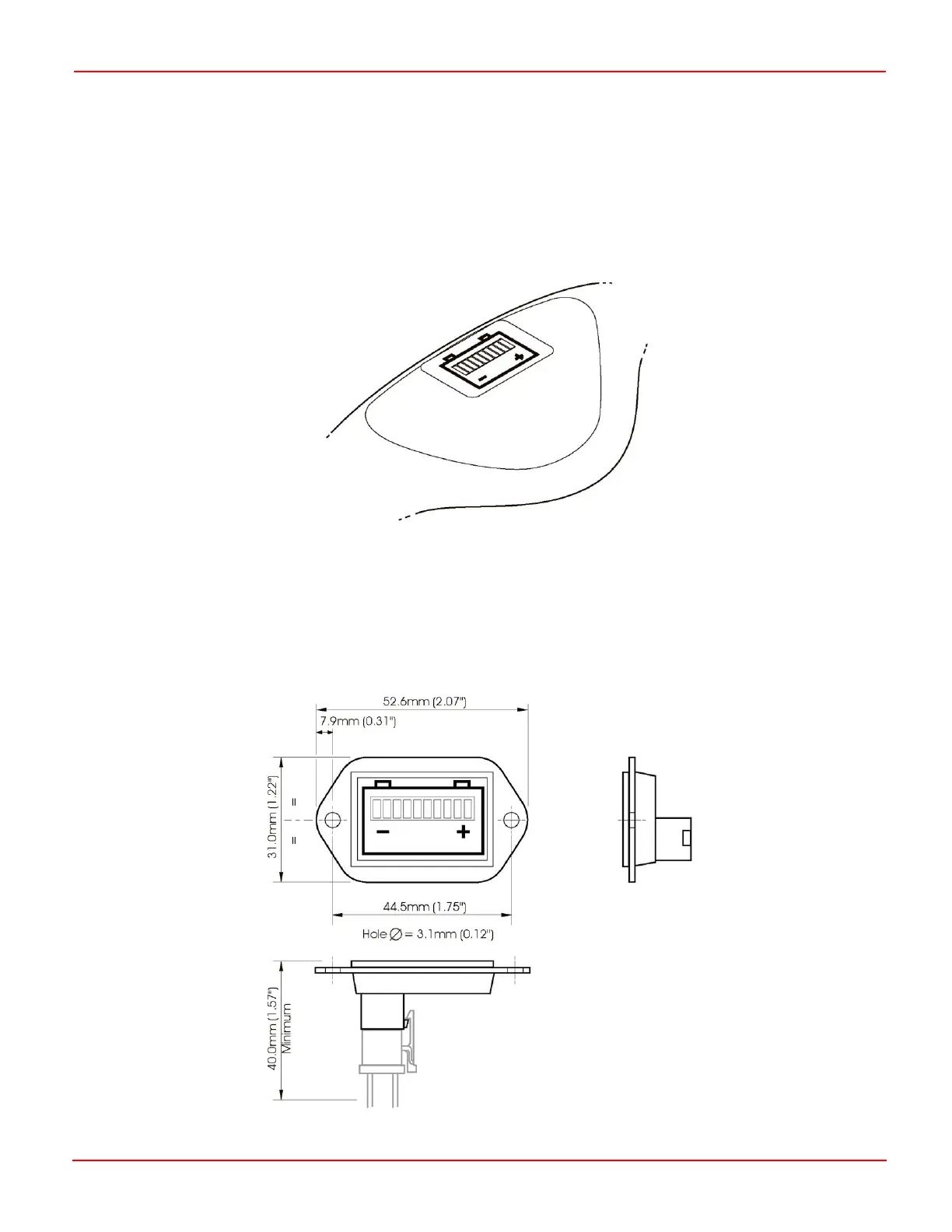

The Inset variant must be embedded within the Scooter Tiller’s housing (See the following illustration). The electronics of the
controller will then take on the ingress protection rating of the Scooter Tiller.
 Inset variant - D50066 / D50032 (24V operation only)
D50066 Consists of: 1 TruCharge Display Module, 1 Label and 1 Double-sided Adhesive Gasket.
D50032 Consists of: 1 TruCharge Display Module and 1 Double-sided Adhesive Gasket.
2 Dimensions
2.1 Surface Variant
The Surface Mount Tiller Module has the dimensions shown in the following illustration.
