4. Remove the safety cables that are attached to the
front cab and to the front storage box lid / front rack.
5. Remove the (2) T-27 screws that attach the front
storage box lid / front rack to the front bumper.
6. Remove the front storage box lid / front rack from the
vehicle.
7. Reverse procedure for installation.

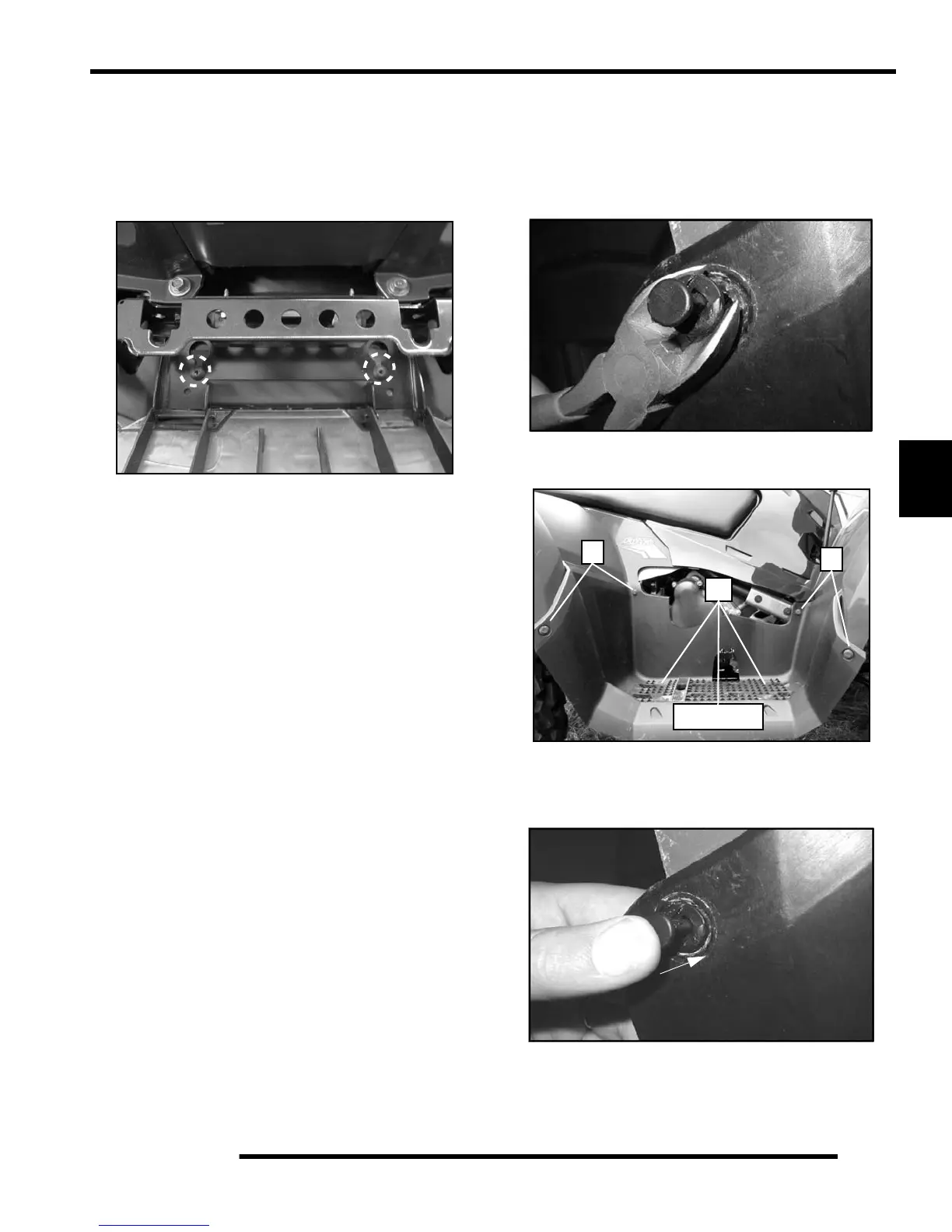

Foot Well Removal / Installation
1. Remove the four plastic inserts (A) that secure the
wheel well to the front and rear fenders. (See
“PLASTIC INSERT REMOVAL / INSTALLATION” for
help).
2. Remove the four screws (B) from the bottom of the
foot well. Remove the footwell.
3. Reverse the removal procedures to install the foot
well. Be sure to properly align the fender ends into the
foot wells upon reassembly.
A
B
A
18 in.lbs. (
B
A
A
18 in. lbs
