10.32
ELECTRICAL
9923412 - 2012 Sportsman 400/500 and EFI Tractor Service Manual
© Copyright 2011 Polaris Sales Inc.

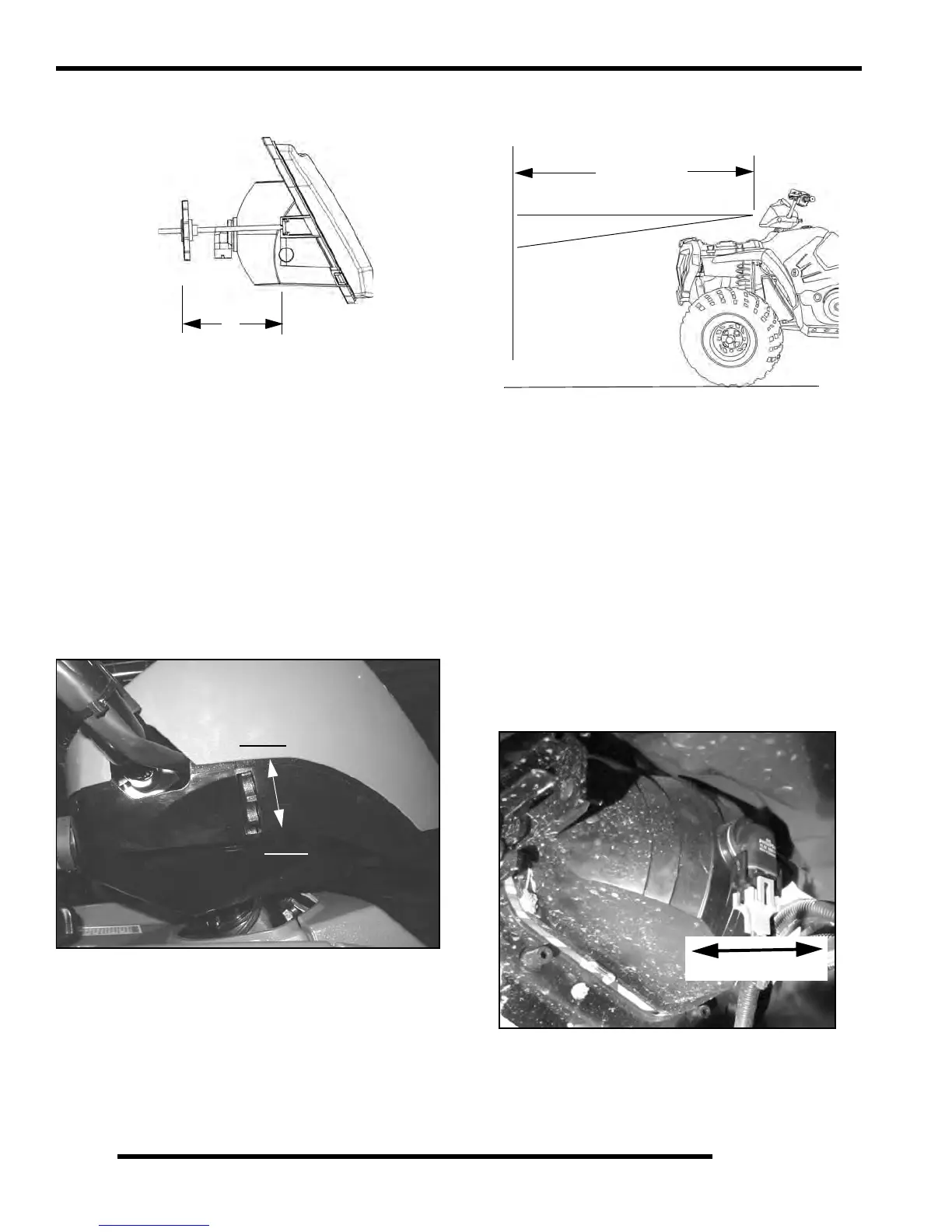

NOTE: The distance from the headlamp parting line
to the end of the adjustment knob stop is 5 1/8”, (13
cm). See illustration.
9. Adjust the headlight aim by turning the adjusting knob.
High Beam Headlight Adjustment
The headlight beam can be adjusted to any position
desired by turning the adjusting knob located on the
bottom right side of the headlight pod.
Raise Headlight - Turn knob counter-
c
ounterclockwise
Lower Headlight - Turn knob clockwise
1. Place the vehicle on a level surfa
ce with the headlight
approximately 25' (7.6 m) from a wall.
2. Measure the distance from the floor to the center of
th
e headlight and make a mark on the wall at the same
height.
3. Start the engine and turn the headlight switch to high
bea
m.
4. Observe headlight aim. The
most intense part of the
headlight beam should be aimed 2” (5.1 cm) below the
mark placed on the wall in Step 2.
NOTE: Rider weight must b
e included on the seat.
On machines with separate low beam lights, the
drop should be 8, (20.3 cm) in 25' from the center of
the low beam lamp.
5. Adjust beam to desired position.
Lower Headlamp Removal / Installation
25’ (7.6 m)
2” (5.1 cm)
Lamp Center Height
To Next Page
