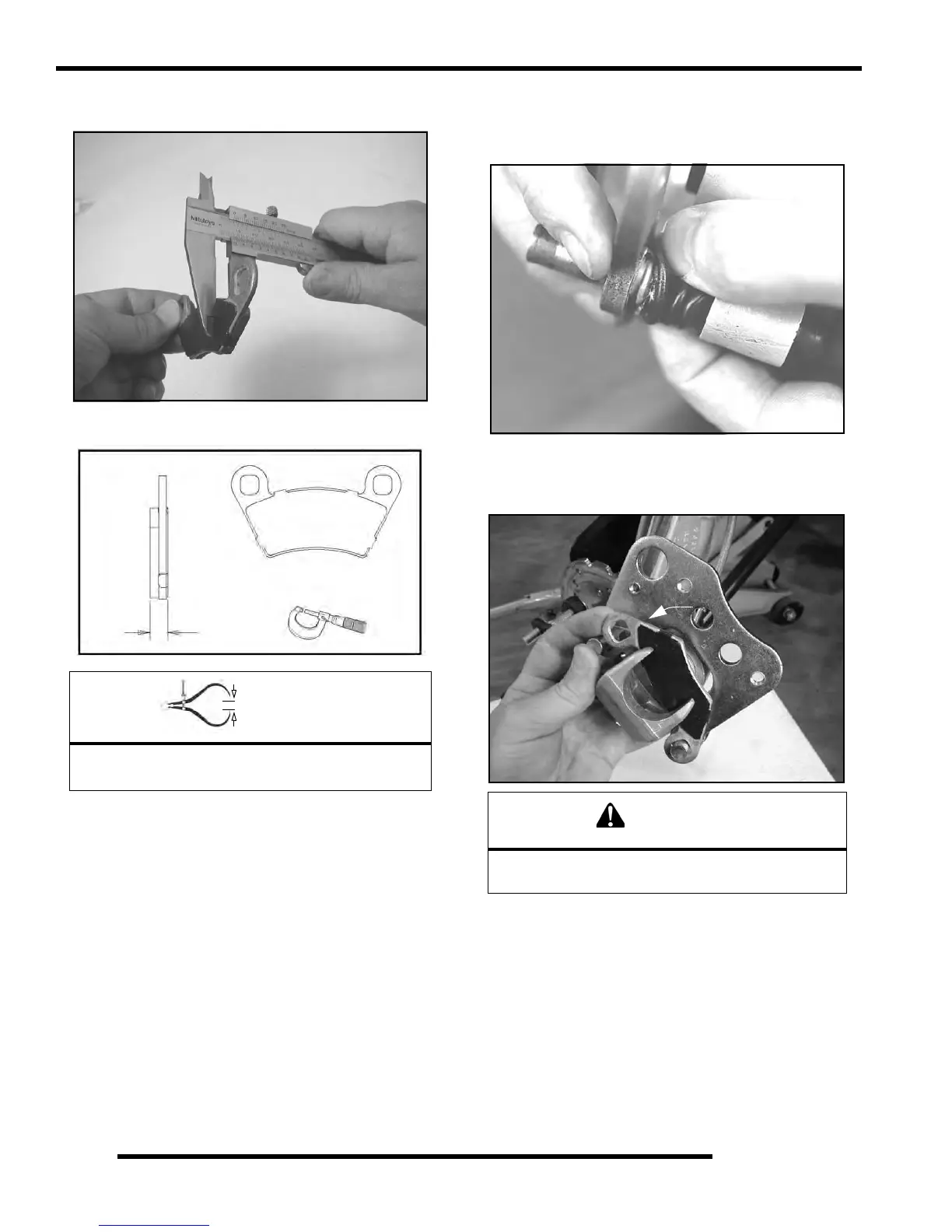

7. Measure the thickness of the pad material. Replace
pads if worn beyond the service limit.
Assembly
1. Lubricate mounting bracket pins with a light film of
disc brake caliper lube, and install rubber dust boots.
2. Compress mounting bracket and make sure dust
boo
ts are fully seated. Install pads with friction
material facing each other.
Front Brake Pad Thickness Service Limit:
.180” / 4.6 mm
If pads are contaminated with grease, oil, or liquid
soaked do not use the pads. Use only new clean pads.
