4.16
9926813 R04 - 2013-2016 RZR 570 Service Manual
© Copyright Polaris Industries Inc.
FUEL TANK

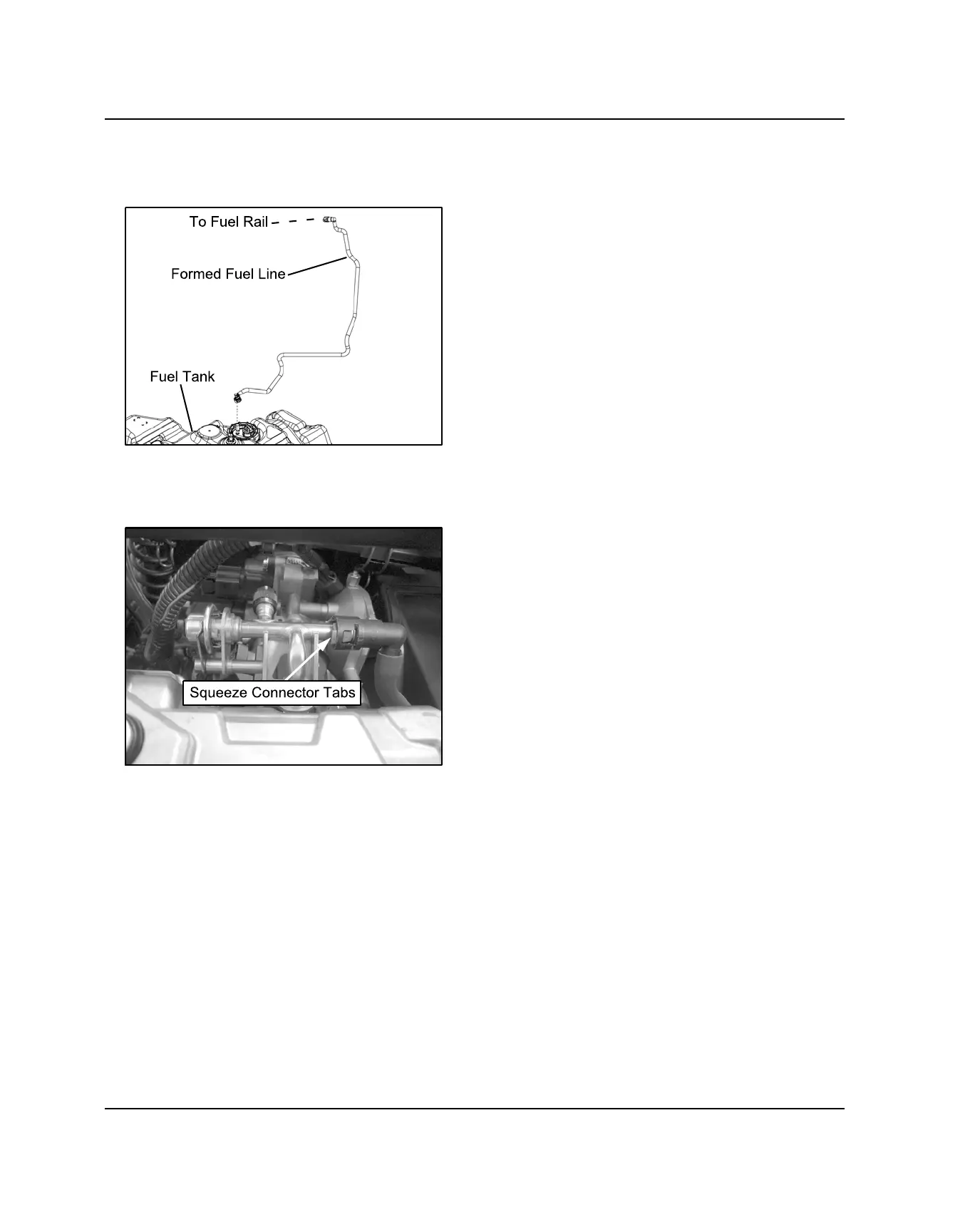

FUEL LINES - QUICK CONNECT
1. Place a shop towel around the fuel line to catch any
dripping fuel. Squeeze the connector tabs together
and push the locking slide back.
2. Pull on the fuel line for removal.
3. To install the line(s), verify the connections are clean
and free of debris.
4. Snap the fuel line back over the nipple and slide the
locking mechanism back into place. Verify the
connector tabs snap back into place.
FUEL SYSTEM
